Snow Performance SNO-40012-BRD 4AN SS Braided Line Trunk Mount Upgrade W/M Kit

Vehicle Fitment

• Universal Fitment - Compatible with all Snow Performance water-methanol injection systems using 4AN stainless steel braided line, including SNO-210-BRD, SNO-211-BRD, SNO-2171-BRD, and other 4AN SS braided line-equipped kits

Fitment Notes

• Designed exclusively for Snow Performance systems equipped with 4AN stainless steel braided line - not compatible with Snow Performance kits using standard nylon quick-connect tubing
• A high-flow anti-siphon solenoid is required any time the reservoir is mounted in the trunk or rear of the vehicle - this kit includes the solenoid upgrade; do not operate a rear-mounted reservoir without it installed
• The 15 ft. braided line length is intended to reach from a trunk- or rear-mounted reservoir to an engine bay nozzle location on most vehicles; measure your routing path before installation to confirm adequate length
• Not CARB approved - not legal for sale or use in California

Features

• Enables relocation of any standard Snow Performance 3-quart reservoir or custom tank from the engine bay to the trunk or rear of the vehicle, freeing up engine compartment space and allowing larger-capacity tank installations
• 15-foot stainless steel braided EPDM line provides ample reach from a trunk-mounted reservoir to engine bay injection points on virtually any vehicle platform
• 100% methanol-resistant construction throughout - EPDM inner liner and stainless steel braided outer jacket are fully compatible with any water-methanol mixture ratio up to 100% methanol
• Includes a Snow Performance High-Flow Solenoid Upgrade, which acts as an anti-siphon device to prevent fluid from gravity-feeding or siphoning into the engine when the system is not active - mandatory for all rear/trunk-mount configurations
• 4AN fittings included provide a leak-free, high-pressure connection between the braided line and the existing system plumbing - no additional adapters required for compatible Snow Performance kits
• Stainless steel braid outer layer provides superior abrasion, heat, and corrosion resistance compared to standard nylon tubing, ensuring long-term reliability in underbody and trunk routing environments
• EPDM inner liner is chemically inert to methanol, water, and all common water-methanol blend ratios - will not degrade or swell over time
• Complete kit - includes all components needed to perform the trunk mount conversion without sourcing additional hardware

Specifications

• Part Number: SNO-40012-BRD (Manufacturer PN: 40012-BRD)
• UPC: 653374500333
• Kit Type: Trunk / Rear Mount Upgrade - Braided Line Systems
• Line Length: 15 ft. (180 in.)
• Line Construction: Stainless Steel Braided / EPDM Inner Liner
• Fitting Size: -4 AN (4AN)
• Fluid Compatibility: Water-methanol mixtures up to 100% methanol
• Solenoid: High-Flow Anti-Siphon Solenoid Upgrade (included)
• Application: Universal - Snow Performance 4AN SS Braided Line Systems
• Warranty: 90-Day Snow Performance Parts Warranty
• Country of Origin: United States

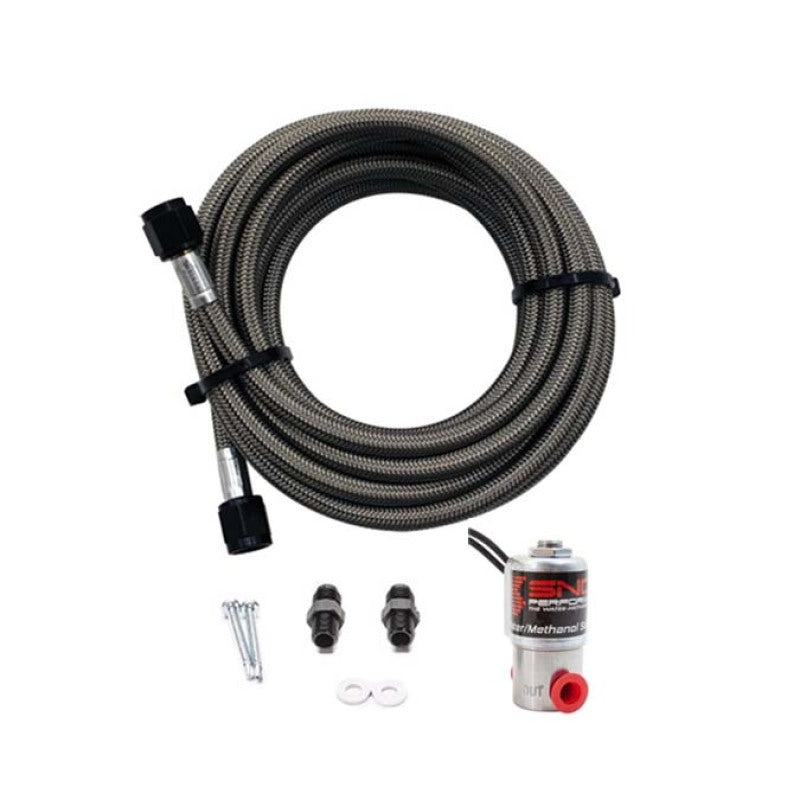

Included Components

• 1x 15 ft. Stainless Steel Braided EPDM Line
• 1x Snow Performance High-Flow Anti-Siphon Solenoid Upgrade
• 2x Required 4AN Fittings

Product Description

The Snow Performance SNO-40012-BRD is a trunk mount conversion upgrade kit designed for any Snow Performance water-methanol injection system equipped with 4AN stainless steel braided lines. The kit enables users to move their standard 3-quart reservoir - or a custom-capacity tank - out of the engine bay and into the trunk or rear cargo area of the vehicle. This relocation is useful for builders looking to maximize engine bay space, route a larger-capacity reservoir, or balance vehicle weight distribution. The kit contains everything needed to safely complete the conversion: 15 feet of stainless steel braided EPDM line, a high-flow solenoid upgrade, and the required 4AN fittings to interface with the existing system.

The high-flow solenoid included in this kit is not optional - it is a mandatory safety component for all rear or trunk-mounted reservoir configurations. When the reservoir is located behind or below the nozzle injection point, gravity and engine vacuum can cause fluid to siphon into the intake tract when the system is not actively injecting. The anti-siphon solenoid prevents this from occurring by blocking fluid flow when the system is not commanded on. Snow Performance explicitly requires this solenoid on all rear-mount setups; operating a trunk-mounted system without it can result in uncontrolled fluid delivery and potential engine damage. The 15-foot braided line provides sufficient reach for most vehicle platforms when routing from a trunk-mounted tank forward through the cabin and firewall to the engine bay injection point.

The braided EPDM line is 100% methanol-resistant and rated for high-pressure water-methanol delivery, making it fully compatible with any fluid ratio from a 50/50 water-methanol blend up to straight methanol. The stainless steel outer braid provides protection against abrasion, radiant heat, and mechanical damage during underbody or cabin routing. This kit is compatible with Snow Performance systems that use 4AN SS braided line plumbing, including the SNO-210-BRD, SNO-211-BRD, SNO-2171-BRD, and other kits in the same product family. It is backed by Snow Performance's 90-day parts warranty and is manufactured in the United States.
