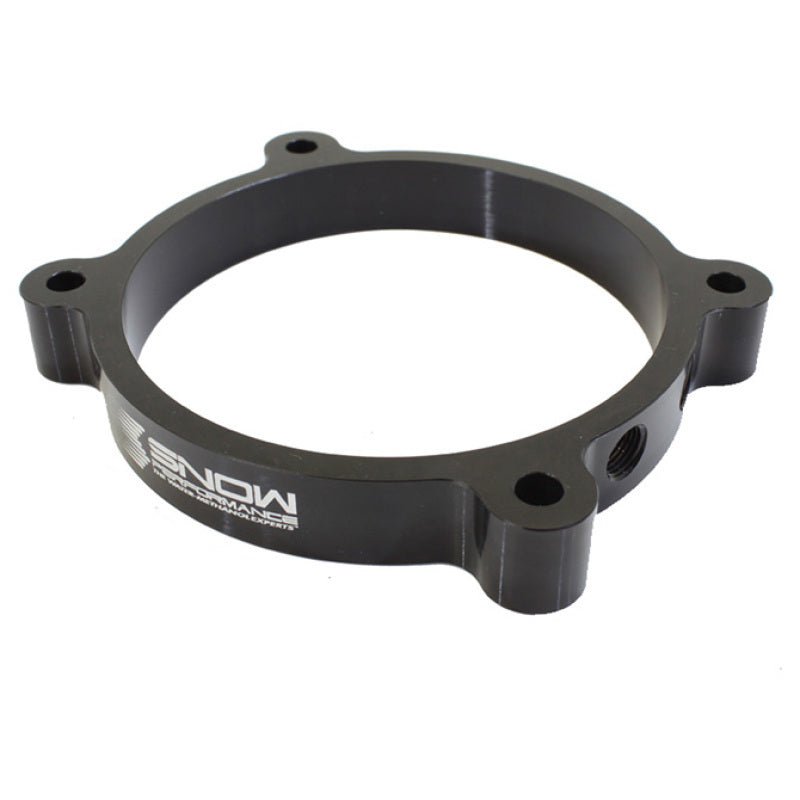

Snow Performance SNO-40084 102mm LS Throttle Body Injection Plate

Regular price: $124.95
Regular price: ~~$174.90~~
Sale price: $124.95

Shipping calculated at checkout.

In Stock: 14

Orders by 1pm PST ship same business day

Free Shipping w/3-4 Day Delivery

Authorized Dealer

Fitment Guarantee

30-Day Hassle Free Returns

Product Specification:

SKU:SNOSNO-40084

MPN: SNO-40084

UPC: 653374977937

Weight: 0.8 lb

Inventory: 14

Type: Water Meth Plates

Vehicle Fitment

Fits vehicles equipped with 102 mm aftermarket LS-series throttle bodies (GM Gen III/IV V8 engines)
Common applications include performance LS swaps in Camaro, Corvette, Tahoe, Escalade & other LS platforms

Features

102 mm throttle body spacer designed for water/methanol injection nozzle placement
Dual 1/8" NPT ports to mount one or two Snow Performance nozzles
Bolt-on installation - no drilling required
Anodized aluminum construction for lightweight strength
Includes sealing O-ring for airtight fit
Enhances spray positioning for more effective injection coverage
Clean installation without modifying intake piping
Ideal for forced-induction LS engines seeking optimized injection placement

Specifications

Part Number: SNO-40084
Throttle Body Diameter: 102 mm
Ports: Dual 1/8" NPT for injection nozzles
Material: Anodized aluminum plate
Location: Spacer between throttle body and intake manifold
Compatibility: LS Gen III/IV V8 throttle bodies with 102 mm bore
Installation: Bolt-on - hardware and O-ring included
Application: For water/methanol injection nozzle mounting

Included Components

1x 102 mm throttle body injection plate
1x Sealing O-ring
Required mounting hardware

Product Description

The Snow Performance SNO-40084 102 mm LS Throttle Body Injection Plate provides a purposeful solution for mounting water/methanol injection nozzles precisely where they're most effective - right behind the throttle body. Designed to fit LS-series engines equipped with a 102 mm throttle body, this bolt-on spacer eliminates the need to drill holes in intake piping and offers clean, OEM-like integration for up to two injection nozzles. Its anodized aluminum construction and included O-ring ensure an airtight seal and reliable long-term performance.

Ideal for performance builds on Gen III and Gen IV GM V8 platforms - such as Camaro, Corvette, Tahoe, Escalade, and other LS-swapped vehicles - the plate enhances water/methanol spray placement to maximize intercool charge cooling and detonation suppression under boost. Installation is straightforward, with all necessary hardware provided for quick integration between the throttle body and intake manifold.
