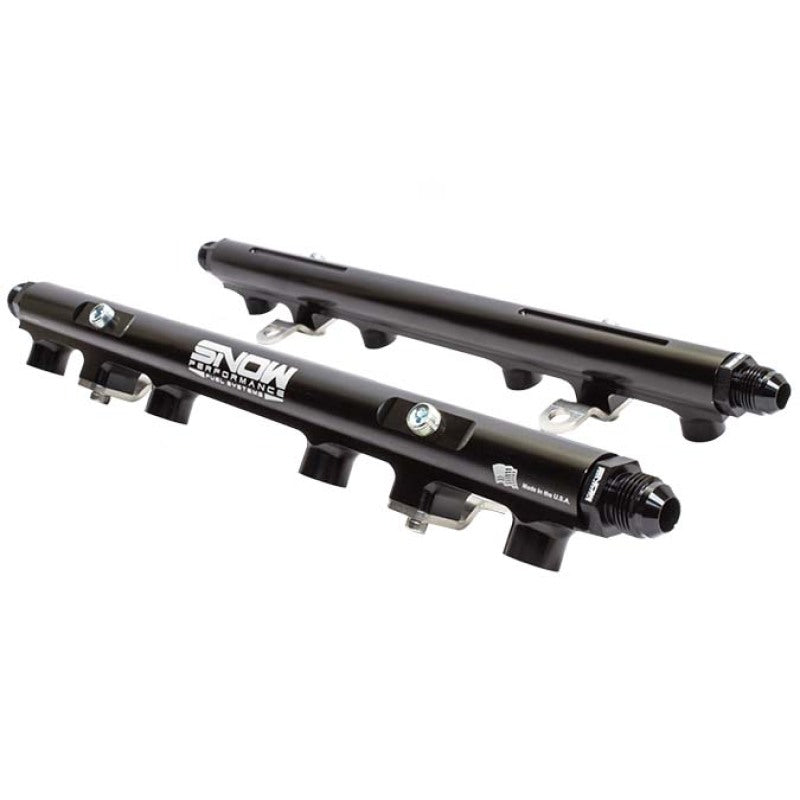

Snow Performance SNF-30012 Return Billet Fuel Rail Kit for 2011-2017 Ford 5.0

Vehicle Fitment

• 2011-2014 Ford Mustang GT (5.0L Coyote V8, 1st Gen manifold)
• 2015-2017 Ford Mustang GT (5.0L Coyote V8, 2nd Gen manifold)
• 2011-2017 Ford Mustang Boss 302 (5.0L Coyote V8, Boss 302 manifold)
• 2015-2016 Ford Mustang GT350 (5.2L Voodoo V8, GT350 manifold)
• 2011-2017 Ford F-150 (5.0L Coyote V8, all Coyote truck intake manifolds)
• 2018+ 3rd Gen Coyote manifold when retro-fitted to a 2011-2017 engine
• Cobra Jet intake manifold applications
• Does NOT fit: 2018+ Mustang GT with factory 3rd Gen engine and manifold (see SNF-30112 for 2018+ Gen 3 Coyote)
• Not legal for sale or use in California

Features

• CNC-machined billet aluminum construction delivers a precision, direct-fit replacement for the factory fuel rails with zero tolerance for misalignment or fuel leaks
• Black anodized finish provides superior corrosion resistance, essential for compatibility with E85, ethanol blends, and gasoline over the long term
• High-strength stainless steel mounting brackets lock the rails securely to the intake manifold, preventing movement under high fuel pressure and vibration
• 8AN ORB (O-ring Boss) inlet and outlet ports on each rail eliminate the leak risks of push-lock or hose-barb connections - rated for high-pressure return-style fuel system use
• Two 1/8" NPT auxiliary ports per rail allow direct installation of fuel pressure gauges, sensors, or nitrous oxide feed fittings without additional adapters
• Return-style design is compatible with external fuel pressure regulators for precise, adjustable fuel pressure control in high-horsepower builds
• Designed for stock-height 60mm Coyote fuel injectors - accepts all standard Coyote port injectors
• Shorter injectors can be accommodated using Snow Performance injector spacers (sold separately)
• Sold as a pair - includes both driver-side and passenger-side rails, covering all eight injector positions on the 5.0L Coyote V8
• Designed and manufactured in the USA by Snow Performance (a Nitrous Express company)

Specifications

• Style: Return-style (bypass) - requires external fuel pressure regulator and return line
• Quantity: Pair (2 rails - driver side and passenger side)
• Material: CNC-machined billet aluminum
• Finish: Black anodized
• Mounting Brackets: High-strength stainless steel
• Inlet/Outlet Ports: 8AN ORB (O-ring Boss) per rail
• Auxiliary Ports: Two 1/8" NPT per rail (4 total across both rails)
• Injector Height: 60mm (factory/stock Coyote height)
• Compatible Manifolds: 1st Gen GT, 2nd Gen GT, 3rd Gen (retro-fit), Boss 302, GT350, Cobra Jet, all Coyote truck manifolds
• Country of Origin: Made in USA
• California Emissions: Not legal for sale or use in California

Included Components

• 2x CNC-machined billet aluminum fuel rails (driver and passenger side)
• 4x 8AN ORB inlet/outlet fittings
• 4x 1/8" NPT port plugs (2 per rail)
• 1x Set of stainless steel mounting brackets for factory-height Coyote injectors
• Note: Fuel pressure regulator, return line, and injectors are not included
• Note: Snow Performance injector spacers required for sub-60mm injectors (sold separately)

Product Description

The Snow Performance SNF-30012 is a CNC-machined billet aluminum return-style fuel rail kit designed for the 2011-2017 Ford 5.0L Coyote V8 platform, covering the Mustang GT, Boss 302, GT350, Cobra Jet, and all F-150 applications sharing the Coyote architecture and compatible intake manifolds. Sold as a complete pair, these rails are precision-machined for a direct, bolt-in fit to the factory injector bosses and intake manifold mounting positions - no cutting, drilling, or modification to the intake is required. The black anodized billet aluminum body and stainless steel mounting brackets provide a clean, show-quality appearance while delivering the structural rigidity needed to maintain a leak-free seal under the elevated fuel pressures common in forced induction and high-horsepower builds.

Each rail features 8AN ORB (O-ring Boss) inlet and outlet ports - the industry standard for high-flow, high-pressure fuel system connections - ensuring a secure, leak-free interface with AN fuel lines and fittings. The two 1/8" NPT auxiliary ports per rail serve multiple purposes: one port can accept a fuel pressure gauge or electronic pressure sensor, while the second can be used to feed a nitrous oxide system, a secondary fuel delivery point, or capped with the included plugs if not needed. This makes the SNF-30012 a particularly capable foundation for builds combining high-horsepower fuel delivery with nitrous oxide supplementation.

The SNF-30012 is a return-style fuel rail, meaning it requires an external aftermarket fuel pressure regulator and a dedicated fuel return line running back to the tank - the factory returnless fuel system must be converted to a return-style setup for use with these rails. This configuration is standard practice in high-performance builds as it enables precise, adjustable fuel pressure control independent of the factory fuel pressure control system. Rails are sized for the factory 60mm stock-height Coyote injectors; shorter injectors can be used with Snow Performance's injector spacers, available separately. Not legal for sale or use in California.
