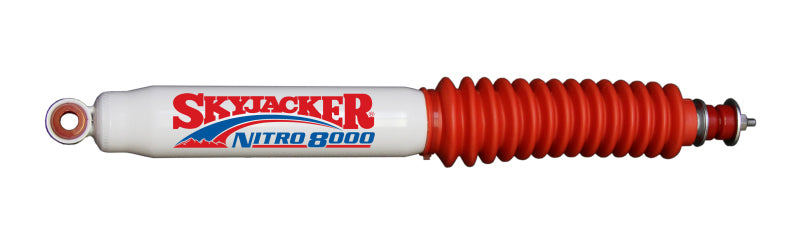

Skyjacker N8056 Nitro 8000 Shock for Jeep Wrangler YJ Ford Bronco Toyota Tacoma

Vehicle Fitment

• 1966-1979 Ford Bronco (4WD) - Front | 3.5-8 in. Lift (varies by year)
• 1970-1976 Ford F-100 (4WD) - Rear | 1.5-2 in. Lift
• 1977-1979 Ford F-150 (4WD) - Front (Dual OE, Forward of Axle) | 5-6 in. Lift; Rear | 1.5-2 in. Lift
• 1977 Ford F-250 High Boy (4WD) - Rear | 4 in. Lift
• 1977-1979 Ford F-250 Low Boy (4WD) - Rear | 4 in. Lift
• 1979 Ford F-350 (4WD) - Rear | 1-3 in. Lift
• 1980-1986 Ford F-250 (4WD) - Front | 5-8 in. Lift
• 1980 Toyota Pickup (4WD) - Front | 7-8 in. Lift
• 1984-1985 Toyota 4Runner (4WD) - Front | 7-8 in. Lift
• 1987-1995 Jeep Wrangler YJ (4WD) - Front | 2-2.5 in. Lift
• 2005-2018 Toyota Tacoma - Rear | 2 in. Lift

Fitment Notes

• Position varies by application - see fitment table for front vs. rear placement per vehicle
• Sold individually; 2 required per axle
• Upper mount: S1 (Stud); Lower mount: ES25 (Eye with sleeve)
• 1978-1979 Ford Bronco with OE Front Dual Shock - 3-5 in. lift uses Forward of Axle mount position; 6 in. lift uses Behind Axle mount position (2 required per position)
• All necessary washers, bushings, and nuts included; factory mounting bolts are reused

Features

• 150 PSI nitrogen gas charge eliminates shock fade and delivers faster, more consistent damping response
• Multi-stage velocity-sensitive valving automatically adjusts resistance to match terrain and speed conditions
• Twin-tube DOM construction reduces internal wear for long service life under repeated off-road stress
• 14mm hardened double-chrome piston rod resists bending and corrosion in harsh environments
• Oversized bonded iron piston and leak-proof seal maintain consistent oil pressure throughout the shock's life
• Red polyurethane bushings and protective boot enhance responsiveness and shield the shaft from debris
• Limited lifetime warranty against defects in materials and workmanship

Specifications

• Shock Series: Nitro 8000
• Shock Type: Gas Charged 150 PSI Nitrogen Twin-Tube
• Extended Length: 24.3 in.
• Collapsed Length: 14.52 in.
• Stroke: 9.78 in.
• Body Diameter: 2.375 in.
• Shaft Diameter: 14mm hardened double-chrome
• Upper Mount: S1 (Stud)
• Lower Mount: ES25 (Eye with Sleeve)
• Bushing Material: Red Polyurethane
• Boot Color: Red
• Weight: 6.05 lbs
• Sold: Individually (1 per unit)

Included Components

• 1x Skyjacker Nitro 8000 Shock Absorber (N8056) with red polyurethane boot
• 1x Hardware kit (washers, bushings, and nuts)
• Note: 2 shocks required per axle for a complete replacement

Product Description

The Skyjacker N8056 is a Nitro 8000 series shock absorber covering a wide range of classic and modern applications - from the 1966-1979 Ford Bronco and 1980-1986 F-250 to the 1987-1995 Jeep Wrangler YJ and 2005-2018 Toyota Tacoma. Depending on the application, it serves as either a front or rear shock at various lift heights. Charged with 150 PSI of nitrogen gas and built around a twin-tube DOM design, the N8056 delivers consistent, fade-free damping performance across all speeds and terrain types. The multi-stage velocity-sensitive valving adapts instantly - tightening up for highway stability and softening for off-road articulation.

The 14mm hardened double-chrome piston rod, oversized bonded iron piston, and leak-proof seal are engineered to outlast factory shocks in demanding environments. The stud upper mount (S1) and eye with sleeve lower mount (ES25) are vehicle-specific - always confirm position and lift height in the fitment table before ordering. Owners of 1978-1979 Ford Broncos with OE dual front shocks should note that forward-of-axle and behind-axle mounting positions have different application notes. Sold individually - two are required per axle.
