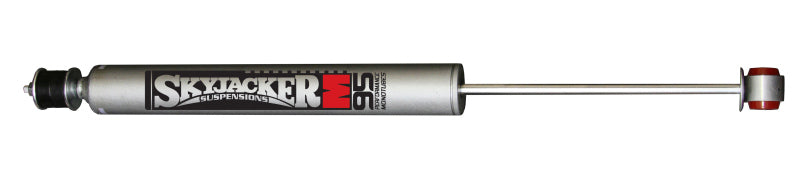

Skyjacker M9591 M95 Monotube Front Shock for 94-18 Ram/F-250/F-350 0-1" Lift

Vehicle Fitment

• 1994-2001 Dodge Ram 1500 (All Engines, 4WD, 0-1" Lift)
• 1994-2002 Dodge Ram 2500 (All Engines, 4WD, 0-1" Lift)
• 2003-2010 Dodge Ram 2500 (5.7L V8, 5.9L Cummins, 6.7L Cummins, 4WD, 0-1" Lift)
• 2003-2010 Dodge Ram 3500 (5.7L V8, 5.9L Cummins, 6.7L Cummins, 8.0L V10, 4WD, 0-1" Lift)
• 2011-2018 Ram 2500 (5.7L V8, 6.7L Cummins, 4WD, 0-1" Lift)
• 2011-2018 Ram 3500 (5.7L V8, 6.7L Cummins, 4WD, 0-1" Lift)
• 2005-2018 Ford F-250 Super Duty (All Engines, 4WD, 0-1" Lift)
• 2005-2018 Ford F-350 Super Duty (All Engines, 4WD, 0-1" Lift)
• 2003-2009 Hummer H2 (6.0L V8, 6.2L V8, 4WD, 0-1" Lift)
• 1985-1987 Toyota Land Cruiser FJ60 (4.2L I6, 4WD, 0-1" Lift)

Features

• M95 Monotube design with single-tube construction keeps operating temps cooler under extreme conditions
• High-pressure nitrogen gas with floating piston technology creates fastest responding shock ever
• Large 46mm bore diameter provides maximum fluid capacity for fade-free performance
• Internal bump stop prevents harsh bottoming and protects shock from damage
• 180-degree directional mounting allows versatile installation orientation
• Velocity-sensitive valving automatically adapts to changing road conditions
• No fade or lag for consistent performance on-road and off-road
• Limited lifetime warranty to original purchaser as long as you own the vehicle

Specifications

• Part Number: M9591 / SJA-M9591
• Series: M95 Monotube Performance
• Position: Front
• Extended Length: 22.63 inches
• Collapsed Length: 13.75 inches
• Stroke: 8.88 inches
• Lift Range: 0-1 inch (stock to mild leveling)
• Internal Design: Single-tube monotube with floating piston
• Bore Diameter: 46mm (1.811 inches)
• Gas Type: High-pressure nitrogen
• Upper Mount: Stem/stud type
• Lower Mount: Eyelet type
• Quantity: Sold individually (2 required per vehicle)

Included Components

• 1x Skyjacker M95 monotube front shock absorber
• 1x Mounting bushings and hardware (as applicable)

Product Description

The Skyjacker M9591 M95 Monotube Shock Absorber represents the ultimate in shock technology for light trucks, SUVs, and Jeeps running stock ride height or mild 0-1 inch leveling lifts. Featuring advanced single-tube monotube construction, this shock keeps operating temperatures significantly cooler than conventional twin-tube designs, even under the most extreme off-road conditions. The single large-bore tube allows heat to dissipate more efficiently through the shock body, preventing fade and maintaining consistent damping force during extended use. High-pressure nitrogen gas combined with floating piston technology creates the fastest responding shock Skyjacker has ever produced, automatically adapting to changing road surfaces and suspension velocities for superior control and comfort.

The M95's large 46mm bore diameter provides maximum fluid capacity and piston surface area, resulting in precise damping control across the full range of suspension motion. Velocity-sensitive valving responds instantly to compression and rebound inputs, delivering firm control over large impacts while remaining compliant over small bumps and road imperfections. The integrated internal bump stop prevents harsh bottoming during extreme suspension compression, protecting both the shock and vehicle from damage during off-road use or heavy towing. The 180-degree directional mounting capability allows the shock to be installed in either orientation, providing installation flexibility for custom applications or tight clearances.

This front shock fits a wide range of heavy-duty trucks including 1994-2018 Dodge/Ram 1500, 2500, and 3500 models (4WD), 2005-2018 Ford F-250 and F-350 Super Duty trucks (4WD), 2003-2009 Hummer H2, and 1985-1987 Toyota Land Cruiser FJ60. The M9591 is specifically designed for vehicles at stock ride height or with 0-1 inch leveling lifts, with dimensions of 22.63 inches extended and 13.75 inches collapsed providing 8.88 inches of stroke. This shock is sold individually - two shocks are required for complete front axle replacement. Important notes: This shock is designed for 4WD applications only. Professional installation and proper torque specifications are recommended. After installation, verify that the shock is not fully extended or compressed at normal ride height. The M95 series is backed by Skyjacker's limited lifetime warranty to the original purchaser as long as they own the vehicle, reflecting over 45 years of suspension engineering excellence.
