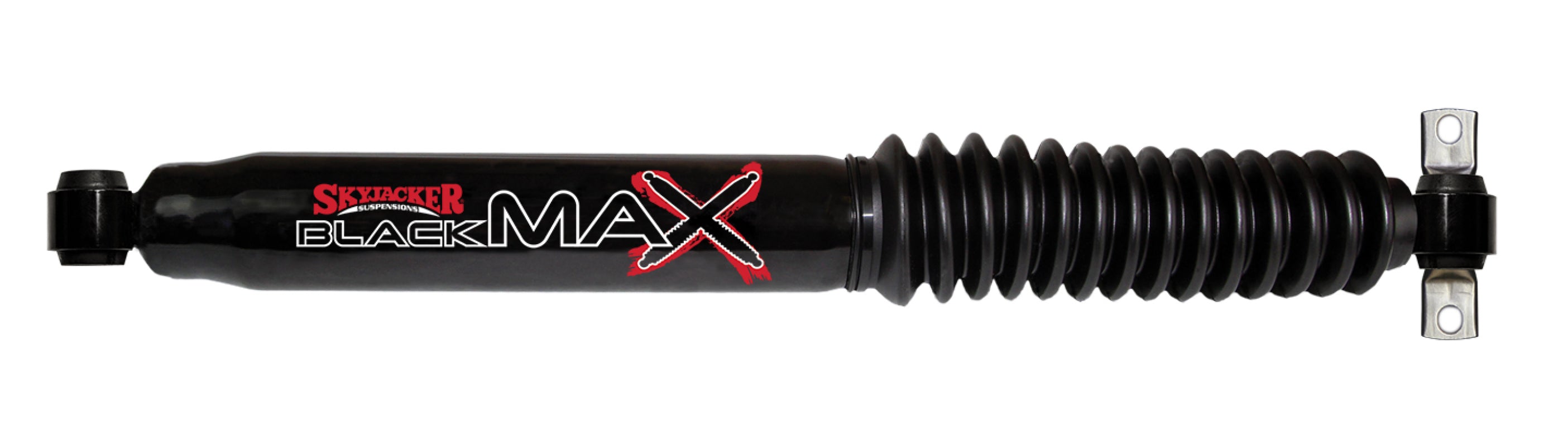

Skyjacker B8567 Black MAX Rear Shock for 2007-2018 Jeep Wrangler JK 4-5in Lift

Vehicle Fitment

• 2007-2018 Jeep Wrangler JK 2-Door (Sport, Sahara, Rubicon, X - 2WD & 4WD) - Rear, 4-5 in. Lift
• 2007-2018 Jeep Wrangler JK Unlimited 4-Door (Sport, Sahara, Rubicon, X - 2WD & 4WD) - Rear, 4-5 in. Lift

Fitment Notes

• Fits rear position only; designed specifically for 4-5 in. of rear suspension lift on the JK platform
• Fits both the 2-Door JK and 4-Door JK Unlimited - rear shock geometry is identical across both body configurations
• Upper mount is a Bar Pin (BP12) style; lower mount is an Eyelet/Sleeve (ES25) - verify compatibility with your specific lift kit hardware before ordering
• This is the direct rear companion to the Skyjacker B8565 (front, 4-5 in. lift) - the B8565 and B8567 together make a complete 4-shock JK set for 4-5 in. lifts
• Does NOT fit Jeep Wrangler TJ (1997-2006) or YJ (1987-1995) - separate part numbers apply for those platforms
• Does NOT fit Jeep Wrangler JL (2018-present) - the JL uses a different rear suspension geometry; this shock is JK-specific only
• Note: The 2018 model year saw both JK and JL production; this shock fits the 2018 JK only, not the 2018 JL
• For 1-3.5 in. rear lift on the JK, see Skyjacker B8537; for lifts above 5 inches, a longer-travel shock is required
• Sold individually - purchase two (2) for a complete rear axle replacement
• Reuses factory shock mounting hardware; no additional brackets required

Features

• Advanced foam-cell technology uses a Low-Pro foam insert that compresses during oil expansion, maintaining consistent damping performance across the full operating temperature range
• Foam-cell design eliminates air inside the shock body, allowing mounting in any direction without performance loss or cavitation
• Vehicle-specific multi-stage StableSteer valving calibrated to the JK rear coil-link suspension geometry at 4-5 in. lift - maximizes tire-to-road contact for improved stability, handling, and traction on- and off-road
• Increased fluid capacity for maximum heat dissipation during sustained trail, rock-crawling, or off-road use
• 360° arc-welded end mounts deliver superior structural strength and long-term durability under extreme flex and articulation
• 180° directional mounting allows flexible installation orientation
• Chrome-plated hardened shock shaft resists pitting and corrosion, extending seal life and overall shock service life
• Sintered iron piston and heavy-duty compression head minimize internal wear for an extended service life
• Twin-tube construction with DOM (Drawn Over Mandrel) tubing maintains tight tolerances for consistent damping output
• Durable corrosion-resistant black coating over heavy-duty steel shock body
• Black polyurethane bushings at both mounts provide rattle-free, precise fitment
• Backed by Skyjacker's Limited Lifetime Warranty against defects in materials and workmanship

Specifications

• Part Number: B8567
• Position: Rear (Driver Side or Passenger Side)
• Extended Length: 26.83 in. (681.48 mm)
• Collapsed Length: 15.91 in. (404.11 mm)
• Stroke: 10.92 in. (277.37 mm)
• Internal Design: Twin-Tube
• Gas Charged: No (Hydraulic / Foam-Cell)
• Adjustable Valving: No
• Upper Mount Type: Bar Pin (BP12)
• Lower Mount Type: Eyelet / Sleeve (ES25)
• Bushing Material: Polyurethane
• Bushing Color: Black
• Shaft Finish: Chrome-Plated
• Body Finish: Black Powder Coat
• Lift Height Compatibility: 4-5 in. Rear Lift
• Weight: 6.00 lbs.
• Quantity: Sold Individually (1 per pack)

Included Components

• 1x Skyjacker B8567 Black MAX Rear Shock Absorber
• 1x Black Protective Dust Boot

Product Description

The Skyjacker B8567 Black MAX Twin-Tube Shock Absorber is the rear companion to the B8565, forming Skyjacker's complete 4-5 inch lift front-and-rear shock solution for the 2007-2018 Jeep Wrangler JK. Purpose-built for the JK's rear coil-link suspension at aggressive lift heights, the B8567 delivers 26.83 inches of extended length and a 10.92-inch stroke - correctly dimensioned for proper droop and compression travel at 4 to 5 inches of rear lift, where a shorter stock-replacement shock would overextend and compromise both ride quality and long-term durability. It fits all JK configurations: 2-Door and 4-Door Unlimited, all trim levels from Sport through Rubicon, across both 2WD and 4WD drivetrains.

Built on Skyjacker's Advanced Foam-Cell technology, the B8567 uses a Low-Pro foam insert that compensates for oil expansion under heat - maintaining consistent damping output during hard off-road sessions and eliminating air from the hydraulic fluid to prevent fade. Vehicle-specific multi-stage StableSteer valving is tuned to the JK's rear Dana 44 (Rubicon) or Dana 35 axle behavior at lifted ride heights, keeping the rear axle compliant and predictable through technical terrain while delivering a controlled, stable ride on pavement. The Bar Pin (BP12) upper mount and Eyelet/Sleeve (ES25) lower mount match the standard JK rear shock tower geometry for a direct bolt-on installation using factory hardware.

When paired with the B8565 front shock, the B8567 completes a purpose-matched, lift-height-specific front-to-rear damping setup for the JK at 4-5 inches of lift - avoiding the valving mismatches that can result from mixing lift-height shock ratings front to rear. The 2018 model year fitment covers 2018 JK production only; the Wrangler JL, which also launched in 2018, is a different platform with incompatible rear shock geometry. Each shock is sold individually - two are needed for a complete rear axle upgrade. Backed by Skyjacker's Limited Lifetime Warranty for the original retail purchaser.
