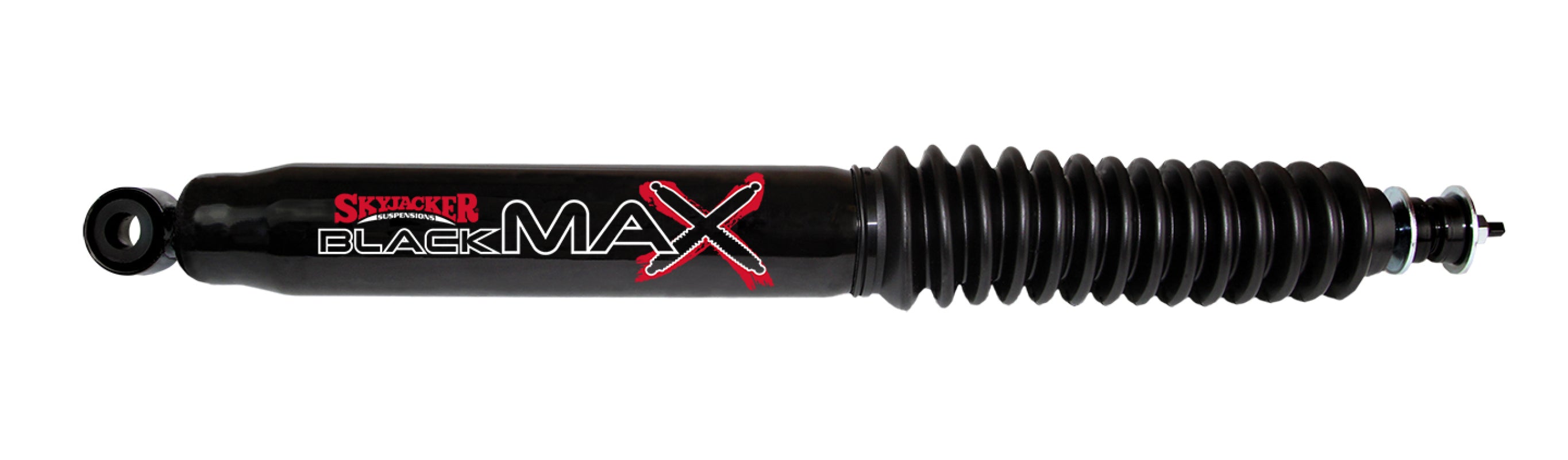

Skyjacker B8565 Black MAX Front Shock for 2007-2018 Jeep Wrangler JK 4-5in Lift

Vehicle Fitment

• 2007-2018 Jeep Wrangler JK 2-Door (Sport, Sahara, Rubicon, X - 2WD & 4WD) - Front, 4-5 in. Lift
• 2007-2018 Jeep Wrangler JK Unlimited 4-Door (Sport, Sahara, Rubicon, X - 2WD & 4WD) - Front, 4-5 in. Lift

Fitment Notes

• Fits front position only; designed specifically for 4-5 in. of front suspension lift on the JK platform
• Fits both the 2-Door JK and 4-Door JK Unlimited - front shock geometry is identical across both body configurations
• Upper mount is a Stem (S1) style; lower mount is an Eyelet/Sleeve (ES25) - verify compatibility with your specific lift kit hardware before ordering
• Does NOT fit Jeep Wrangler TJ (1997-2006) or YJ (1987-1995) - separate part numbers apply for those platforms
• Does NOT fit Jeep Wrangler JL (2018-present) - the JL uses a different front suspension geometry; this shock is JK-specific only
• Note: The 2018 model year saw both JK and JL production; this shock fits the 2018 JK only, not the 2018 JL
• For 1-3.5 in. front lift on the JK, see Skyjacker B8535; for 3.5-4 in. lift, see Skyjacker B8537 (front); for 6+ in. lift, a longer-travel shock is required
• Sold individually - purchase two (2) for a complete front axle replacement
• Reuses factory shock mounting hardware; no additional brackets required

Features

• Advanced foam-cell technology uses a Low-Pro foam insert that compresses during oil expansion, maintaining consistent damping performance across the full operating temperature range
• Foam-cell design eliminates air inside the shock body, allowing mounting in any direction without performance loss or cavitation
• Vehicle-specific multi-stage StableSteer valving calibrated to the JK front coil-link suspension geometry at 4-5 in. lift - maximizes tire-to-road contact for improved stability, handling, and traction on- and off-road
• Increased fluid capacity for maximum heat dissipation during sustained trail, rock-crawling, or off-road use
• 360° arc-welded end mounts deliver superior structural strength and long-term durability under extreme flex and articulation
• 180° directional mounting allows flexible installation orientation
• Chrome-plated hardened shock shaft resists pitting and corrosion, extending seal life and overall shock service life
• Sintered iron piston and heavy-duty compression head minimize internal wear for an extended service life
• Twin-tube construction with DOM (Drawn Over Mandrel) tubing maintains tight tolerances for consistent damping output
• Durable corrosion-resistant black coating over heavy-duty steel shock body
• Black polyurethane bushings at both mounts provide rattle-free, precise fitment
• Backed by Skyjacker's Limited Lifetime Warranty against defects in materials and workmanship

Specifications

• Part Number: B8565
• Position: Front (Driver Side or Passenger Side)
• Extended Length: 24.79 in. (629.67 mm)
• Collapsed Length: 14.56 in. (369.82 mm)
• Stroke: 10.23 in. (259.84 mm)
• Internal Design: Twin-Tube
• Gas Charged: No (Hydraulic / Foam-Cell)
• Adjustable Valving: No
• Upper Mount Type: Stem (S1)
• Lower Mount Type: Eyelet / Sleeve (ES25)
• Bushing Material: Polyurethane
• Bushing Color: Black
• Shaft Finish: Chrome-Plated
• Body Finish: Black Powder Coat
• Lift Height Compatibility: 4-5 in. Front Lift
• Weight: 5.95 lbs.
• Quantity: Sold Individually (1 per pack)

Included Components

• 1x Skyjacker B8565 Black MAX Front Shock Absorber
• 1x Black Protective Dust Boot

Product Description

The Skyjacker B8565 Black MAX Twin-Tube Shock Absorber is a front shock purpose-engineered for the 2007-2018 Jeep Wrangler JK running 4 to 5 inches of front suspension lift. At 24.79 inches extended and a 10.23-inch stroke, the B8565 is dimensioned specifically for the JK's front coil-link geometry at this aggressive lift height range - providing proper droop and compression travel that a stock-length shock cannot deliver when the suspension is working at extended ride heights. It fits all JK trim levels across both the 2-Door and 4-Door Unlimited body configurations, and is compatible with both 2WD and 4WD models.

Built on Skyjacker's Advanced Foam-Cell technology, the B8565 uses a Low-Pro foam insert that compensates for oil expansion as the shock heats up during hard off-road use - maintaining consistent damping output regardless of operating temperature and eliminating air from the hydraulic fluid to prevent fade during sustained trail sessions. Vehicle-specific multi-stage StableSteer valving is tuned to the JK's front axle behavior at 4-5 inch lift heights, keeping the Dana 30 or Dana 44 front axle planted through bumps, ruts, ledges, and loose terrain while delivering a composed, stable ride on paved roads. The Stem (S1) upper mount and Eyelet/Sleeve (ES25) lower mount match the standard JK front shock tower geometry for a direct bolt-on installation using factory hardware.

The B8565 sits in the middle of Skyjacker's JK front shock range: for 1-3.5 in. of front lift, the B8535 is the correct choice; for lifts above 5 inches, a longer-travel shock is required. The 2018 model year fitment is specific to 2018 JK production only - the 2018 Wrangler JL launched as a concurrent model and uses different front suspension geometry incompatible with the B8565. Each shock is sold individually - two are needed for a complete front axle upgrade. Backed by Skyjacker's Limited Lifetime Warranty for the original retail purchaser.
