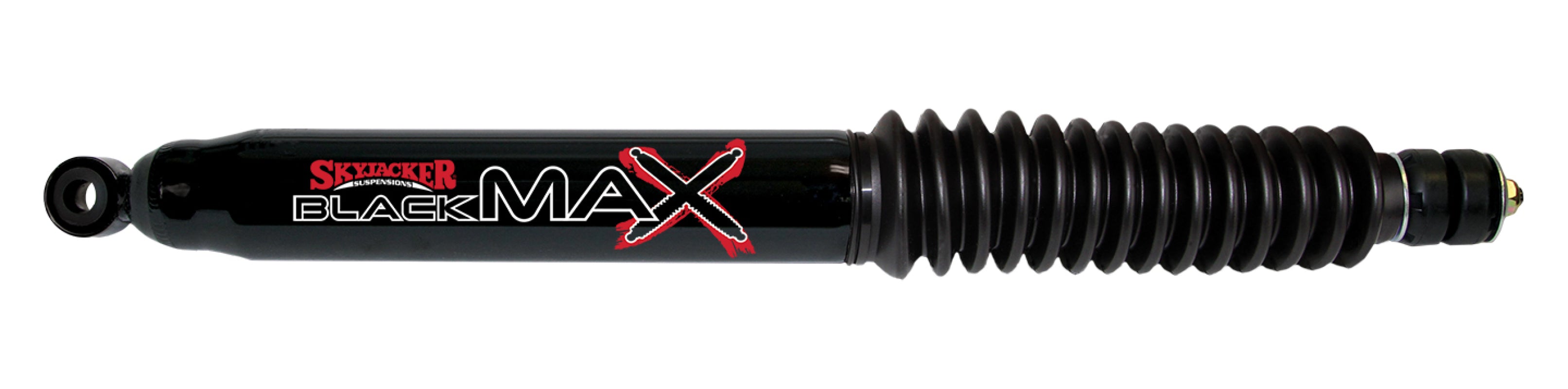

Skyjacker B8594 Black MAX Front Shock Dodge Ram 2500 3500 Ford F-250 F-350 4WD

Vehicle Fitment

• 1994-2010 Dodge Ram 2500 (4WD) - Front, 4-5 in. Lift
• 1994-2010 Dodge Ram 3500 (4WD) - Front, 4-5 in. Lift
• 2011-2012 Ram 2500 (4WD) - Front, 4-4.5 in. Lift
• 2011-2012 Ram 3500 (4WD) - Front, 4-4.5 in. Lift
• 2014-2018 Ram 2500 (4WD) - Front, 6 in. Lift
• 2005-2018 Ford F-250 Super Duty (4WD) - Front, 8-8.5 in. Lift
• 2005-2017 Ford F-350 Super Duty (4WD) - Front, 8-8.5 in. Lift

Fitment Notes

• Fits front position only; all fitments are 4WD only - this shock does not fit 2WD configurations
• 1994-2010 Dodge Ram 2500/3500: designed for 4-5 in. of front lift depending on model year; 1994-2008 applications target 4-4.5 in. lift, 2009-2010 applications target 4-5 in. lift
• 2011-2012 Ram 2500/3500: designed for 4-4.5 in. of front lift
• 2014-2018 Ram 2500: designed for 6 in. of front lift; pairs with Skyjacker B8592 (rear) for the complete set
• 2005-2018 Ford F-250 Super Duty / 2005-2017 Ford F-350 Super Duty: designed for 8-8.5 in. of front lift - this is the tall, high-lift front shock for the Super Duty platform at extreme lift heights
• Note: For Super Duty and Ram 2500 at lower lift heights (4-7 in.), see Skyjacker B8593 - B8594 is specifically for the higher end of the lift range where additional extended length is required
• Upper mount is a Stem style; lower mount is an Eyelet/Sleeve - verify compatibility with your specific lift kit hardware before ordering
• Sold individually - purchase two (2) for a complete front axle replacement
• Reuses factory shock mounting hardware; no additional brackets required

Features

• Advanced foam-cell technology uses a Low-Pro foam insert that compresses during oil expansion, maintaining consistent damping performance across the full operating temperature range
• Foam-cell design eliminates air inside the shock body, allowing mounting in any direction without performance loss or cavitation
• Vehicle-specific multi-stage StableSteer valving calibrated to each supported platform's front suspension geometry at the specified high-lift heights - maximizes tire-to-road contact for improved stability, handling, and traction on- and off-road
• Increased fluid capacity for maximum heat dissipation during sustained off-road, towing, or hauling use at aggressive lift heights
• 360° arc-welded end mounts deliver superior structural strength and long-term durability
• 180° directional mounting allows flexible installation orientation
• Chrome-plated hardened shock shaft resists pitting and corrosion, extending seal life and overall shock service life
• Sintered iron piston and heavy-duty compression head minimize internal wear for an extended service life
• Twin-tube construction with DOM (Drawn Over Mandrel) tubing maintains tight tolerances for consistent damping output
• Durable corrosion-resistant black coating over heavy-duty steel shock body
• Black polyurethane bushings at both mounts provide rattle-free, precise fitment
• Backed by Skyjacker's Limited Lifetime Warranty against defects in materials and workmanship

Specifications

• Part Number: B8594
• Position: Front (Driver Side or Passenger Side)
• Extended Length: 28.75 in. (730.25 mm)
• Collapsed Length: 16.50 in. (419.10 mm)
• Stroke: 12.25 in. (311.15 mm)
• Internal Design: Twin-Tube
• Gas Charged: No (Hydraulic / Foam-Cell)
• Adjustable Valving: No
• Upper Mount Type: Stem
• Lower Mount Type: Eyelet / Sleeve
• Bushing Material: Polyurethane
• Bushing Color: Black
• Shaft Finish: Chrome-Plated
• Body Finish: Black Powder Coat
• Weight: 6.8 lbs.
• Lift Height Compatibility: 4-5 in. (Ram 2500/3500 1994-2010); 4-4.5 in. (Ram 2500/3500 2011-2012); 6 in. (Ram 2500 2014-2018); 8-8.5 in. (Ford F-250/F-350 Super Duty 2005-2018)
• Quantity: Sold Individually (1 per pack)

Included Components

• 1x Skyjacker B8594 Black MAX Front Shock Absorber
• 1x Black Protective Dust Boot

Product Description

The Skyjacker B8594 Black MAX Twin-Tube Shock Absorber is a long-travel front shock designed for heavy-duty lifted trucks - specifically the Dodge/Ram 2500 and 3500 running 4-6 inches of front lift (depending on year), and the Ford F-250 and F-350 Super Duty running extreme 8 to 8.5 inch front lifts. At 28.75 inches extended and a 12.25-inch stroke, the B8594 is significantly longer than its companion B8593 (26.65 in. extended), making it the correct choice when a lift kit puts the front shock towers at heights where the shorter shock would over-extend and lose damping control. All fitments are 4WD only across both platforms.

The Ram 2500 and Ram 3500 fitment spans multiple generations from 1994 through 2018 - covering the BR/BE-generation trucks (1994-2002), the third-gen DR body (2003-2009), the fourth-gen DJ (2010-2018), with specific lift ranges calibrated per generation. The Ford Super Duty fitment covers the P2 (2005-2007) and P3/P4 (2008-2016, 2017+) generations, where the B8594 serves the highest lift ranges on these platforms. Built on Skyjacker's Advanced Foam-Cell technology, the shock uses a Low-Pro foam insert that compensates for oil expansion under the heat of sustained towing, hauling, and off-road use - maintaining consistent damping output throughout the operating temperature range and eliminating air from the hydraulic fluid to prevent fade.

Vehicle-specific multi-stage StableSteer valving is tuned to the front coil spring suspension geometry of the Ram 2500/3500 and the solid front axle (Dana 60) geometry of the Super Duty at these respective lift heights, keeping the front axle planted and predictable under heavy load and over rough terrain. Each shock is sold individually - two are required for a complete front axle upgrade. Backed by Skyjacker's Limited Lifetime Warranty for the original retail purchaser.
