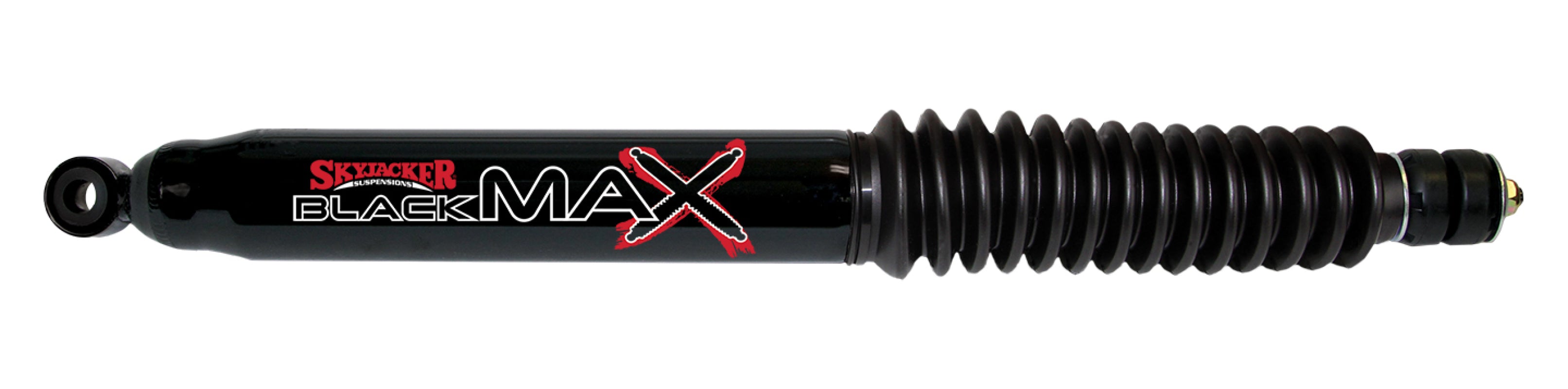

Skyjacker B8593 Black MAX Front Shock Dodge Ram 1500 Ford F-250 F-350 Super Duty

Vehicle Fitment

• 1994-2001 Dodge Ram 1500 (4WD) - Front, 4-5 in. Lift
• 2014-2018 Ram 2500 (4WD) - Front, 4-7 in. Lift
• 2018 Ram 3500 (4WD) - Front, 4-7 in. Lift
• 2005-2018 Ford F-250 Super Duty (4WD) - Front, 4-7 in. Lift
• 2005-2018 Ford F-350 Super Duty (4WD) - Front, 4-7 in. Lift

Fitment Notes

• Fits front position only across all supported platforms
• 1994-2001 Dodge Ram 1500 (4WD): designed for 4-5 in. of front lift; pairs with Skyjacker B8517 (rear) as the complete 4-shock set for this application
• 2014-2018 Ram 2500 / 2018 Ram 3500 (4WD): designed for 4-7 in. of front lift; pairs with Skyjacker B8592 (rear) to form a complete front-and-rear shock set
• 2005-2018 Ford F-250 & F-350 Super Duty (4WD): designed for 4-7 in. of front lift; pairs with Skyjacker B8591 (rear) for the complete Super Duty shock set
• Upper mount is a Stem style; lower mount is an Eyelet/Sleeve - verify compatibility with your specific lift kit hardware before ordering
• All fitment is 4WD only - this shock does not fit 2WD configurations of any listed vehicle
• Sold individually - purchase two (2) for a complete front axle replacement
• Reuses factory shock mounting hardware; no additional brackets required

Features

• Advanced foam-cell technology uses a Low-Pro foam insert that compresses during oil expansion, maintaining consistent damping performance across the full operating temperature range
• Foam-cell design eliminates air inside the shock body, allowing mounting in any direction without performance loss or cavitation
• Vehicle-specific multi-stage StableSteer valving calibrated to each supported platform's front suspension geometry at the specified lift heights - maximizes tire-to-road contact for improved stability, handling, and traction on- and off-road
• Increased fluid capacity for maximum heat dissipation during sustained off-road, towing, or hauling use at aggressive lift heights
• 360° arc-welded end mounts deliver superior structural strength and long-term durability
• 180° directional mounting allows flexible installation orientation
• Chrome-plated hardened shock shaft resists pitting and corrosion, extending seal life and overall shock service life
• Sintered iron piston and heavy-duty compression head minimize internal wear for an extended service life
• Twin-tube construction with DOM (Drawn Over Mandrel) tubing maintains tight tolerances for consistent damping output
• Durable corrosion-resistant black coating over heavy-duty steel shock body
• Black polyurethane bushings at both mounts provide rattle-free, precise fitment
• Backed by Skyjacker's Limited Lifetime Warranty against defects in materials and workmanship

Specifications

• Part Number: B8593
• Position: Front (Driver Side or Passenger Side)
• Extended Length: 26.65 in. (676.91 mm)
• Collapsed Length: 15.87 in. (403.10 mm)
• Stroke: 10.78 in. (273.81 mm)
• Internal Design: Twin-Tube
• Gas Charged: No (Hydraulic / Foam-Cell)
• Adjustable Valving: No
• Upper Mount Type: Stem
• Lower Mount Type: Eyelet / Sleeve
• Bushing Material: Polyurethane
• Bushing Color: Black
• Shaft Finish: Chrome-Plated
• Body Finish: Black Powder Coat
• Lift Height Compatibility: 4-5 in. (Ram 1500); 4-7 in. (Ram 2500/3500, Ford F-250/F-350 Super Duty)
• Quantity: Sold Individually (1 per pack)

Included Components

• 1x Skyjacker B8593 Black MAX Front Shock Absorber
• 1x Black Protective Dust Boot

Product Description

The Skyjacker B8593 Black MAX Twin-Tube Shock Absorber is a front shock spanning three distinct full-size truck platforms: the 1994-2001 Dodge Ram 1500, the 2014-2018 Ram 2500/3500, and the 2005-2018 Ford F-250 and F-350 Super Duty. All confirmed fitments are 4WD only. At 26.65 inches extended and a 10.78-inch stroke, the B8593 is built for lifted applications - running from 4-5 inches on the Ram 1500 up to 4-7 inches on the heavier-duty Super Duty and Ram 2500/3500 platforms, where the greater gross vehicle weight and stiffer factory suspension allow for broader shock compatibility across that wider lift range.

Built on Skyjacker's Advanced Foam-Cell technology, the B8593 uses a Low-Pro foam insert that compensates for oil expansion as the shock heats up during towing, hauling, or off-road use - maintaining consistent damping output throughout the operating temperature range and eliminating air from the hydraulic fluid to prevent fade. Vehicle-specific multi-stage StableSteer valving is calibrated to the front suspension geometry and spring rates of each platform at these lift heights, keeping the front axle controlled and tires planted whether navigating trails, running rutted dirt roads, or pulling weight on the highway. The Stem upper mount and Eyelet/Sleeve lower mount are direct bolt-on replacements using each vehicle's factory hardware.

The B8593 is the front companion to different rear shocks depending on the application: B8517 for the 1994-2001 Ram 1500 (4-5 in. lift set), B8591 for the 2005-2018 Ford F-250/F-350 Super Duty, and B8592 for the 2014-2018 Ram 2500 and 2018 Ram 3500. Each shock is sold individually - two are required for a complete front axle upgrade. Backed by Skyjacker's Limited Lifetime Warranty for the original retail purchaser.
