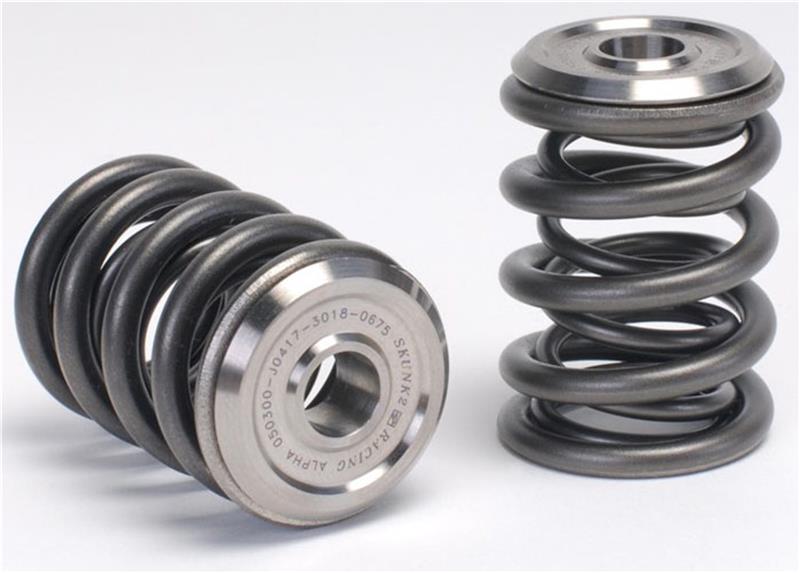

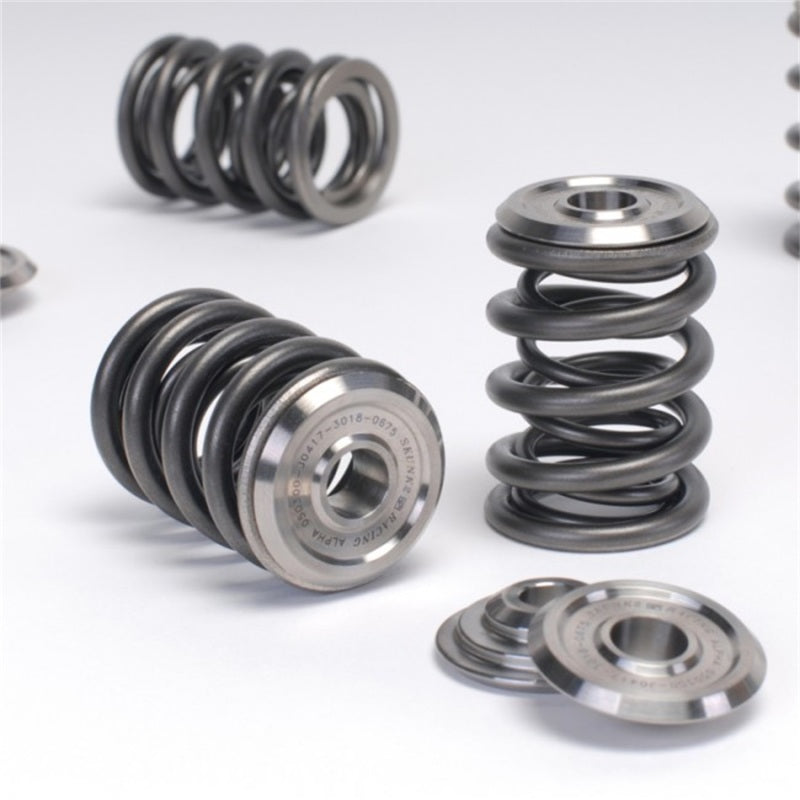

Skunk2 344-05-1300 Alpha Series Valve Spring & Titanium Retainer Kit for B-Serie

Vehicle Fitment

• 1992-2001 Acura Integra GS-R/Type R (B17A/B18C/C5 engines)
• 1994-1997 Honda Civic del Sol VTEC (B16A engine)
• 1999-2000 Honda Civic Si (B16A/B16B engine)

Features

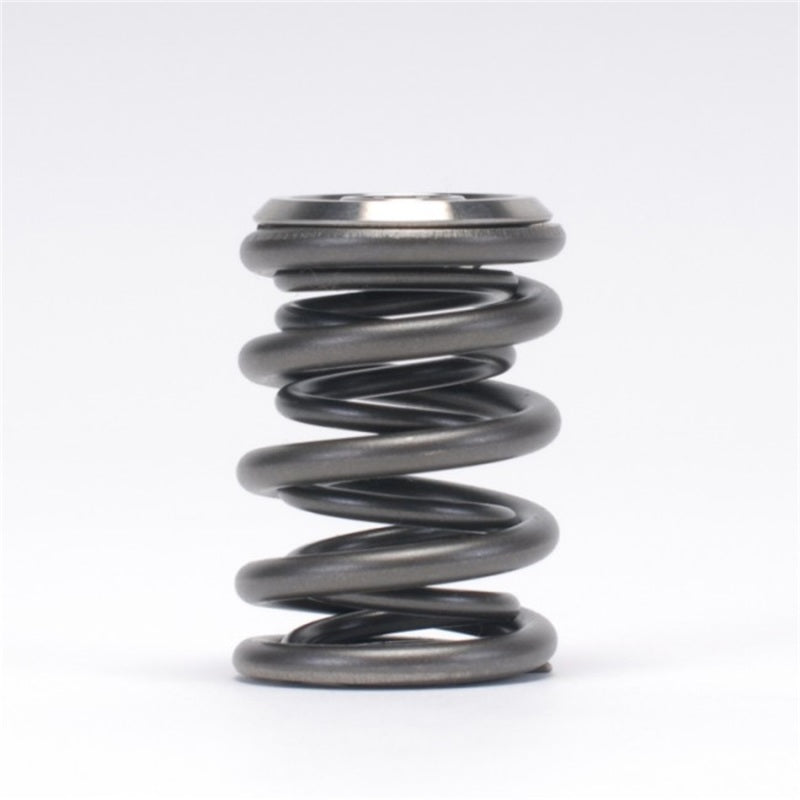

• Alpha Series dual valve springs designed to prevent valve float at high RPM

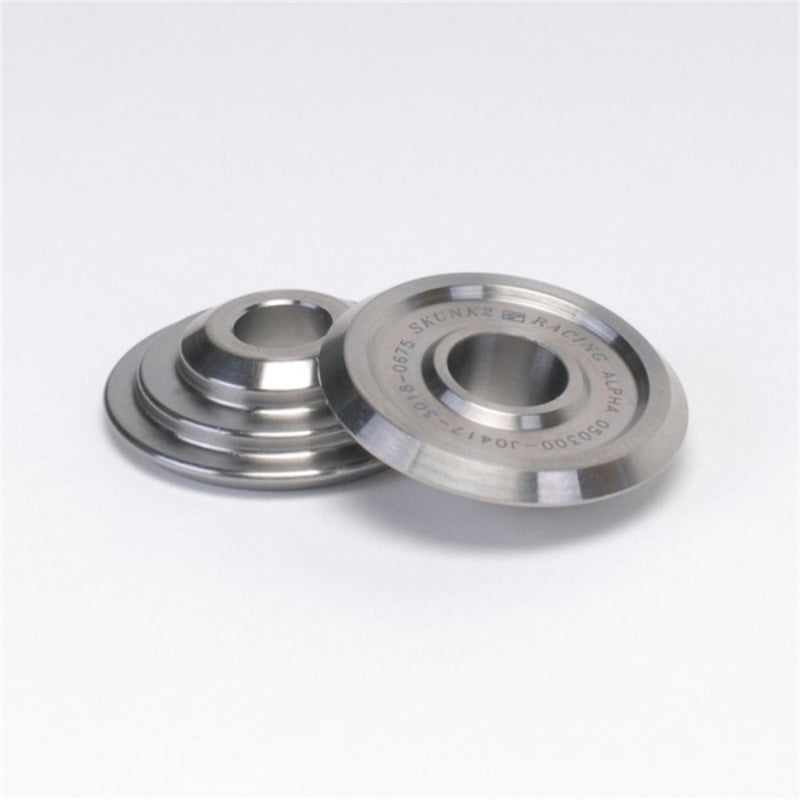

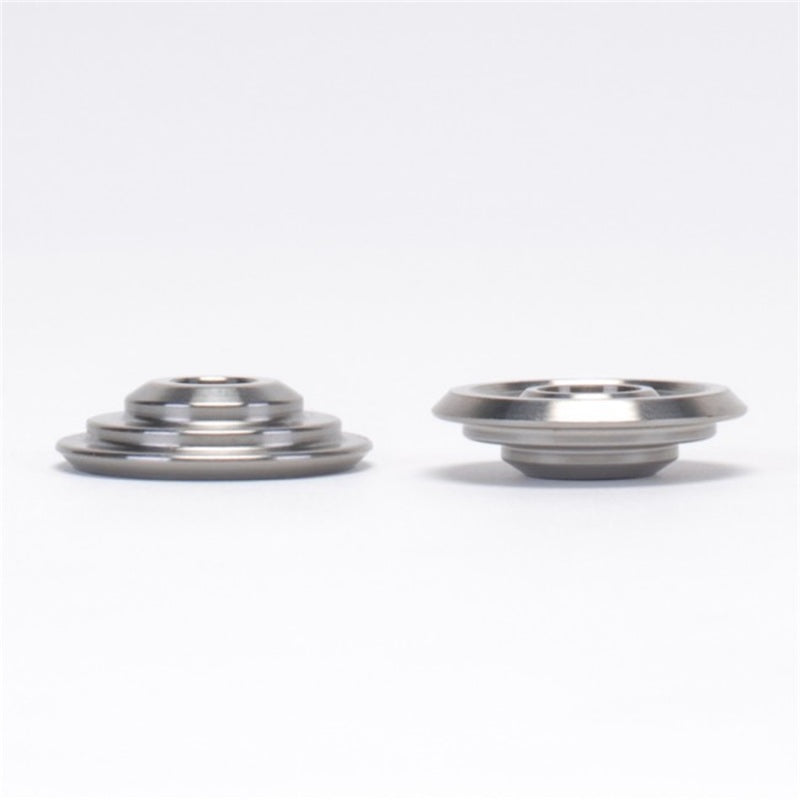

• Includes titanium retainers to reduce valvetrain reciprocating mass
• CNC-machined titanium for strength and lightweight performance
• Dual-rate spring design maintains stability above 10,000 rpm
• Radius-cut edges and lightening grooves for clearance and reduced mass
• Precision engineered with 3D CAD and FEA for optimized strength/weight
• Improves valvetrain stability and increases potential power at high revs
• Race-proven components developed from extensive testing

Specifications

• Part Number: 344-05-1300
• Kit Type: Valve springs and titanium retainers
• Valve Spring Seat Pressure: ~68 lbs @ 1.320"
• Valve Spring Open Pressure: ~210 lbs @ 0.820"
• Coil Bind Height: ~0.800"
• Material - Springs: Chrome-silicon dual-rate wire
• Material - Retainers: Aircraft-grade titanium (6AL-4V)
• Application: Honda B-Series VTEC engines

Included Components

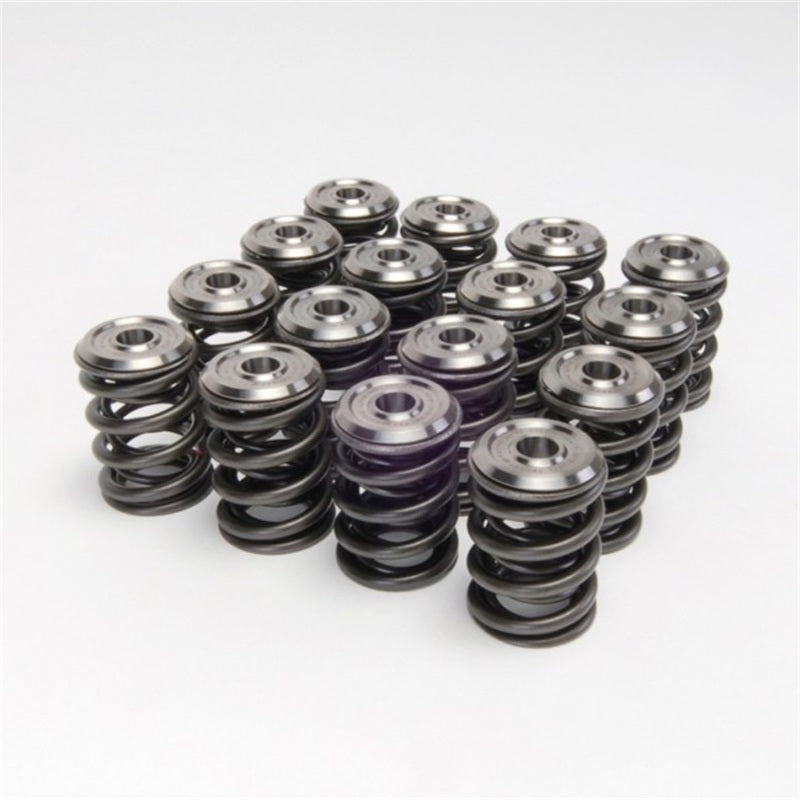

• 8x High-quality dual valve springs
• 8x Titanium valve retainers

Product Description

The Skunk2 344-05-1300 Alpha Series Valve Spring and Titanium Retainer Kit is a high-performance valvetrain upgrade engineered specifically for Honda B-Series VTEC engines in Acura Integra and Honda Civic/del Sol applications. This kit combines premium dual-rate valve springs and ultralight titanium retainers to improve valvetrain stability at very high RPMs - helping prevent valve float when using performance camshafts or pushing the engine beyond stock limits. The springs are wound from super-clean chrome-silicon wire to maintain proper seat and open pressures, while the aircraft-grade titanium retainers significantly reduce reciprocating mass, promoting quicker rev response and improved reliability.

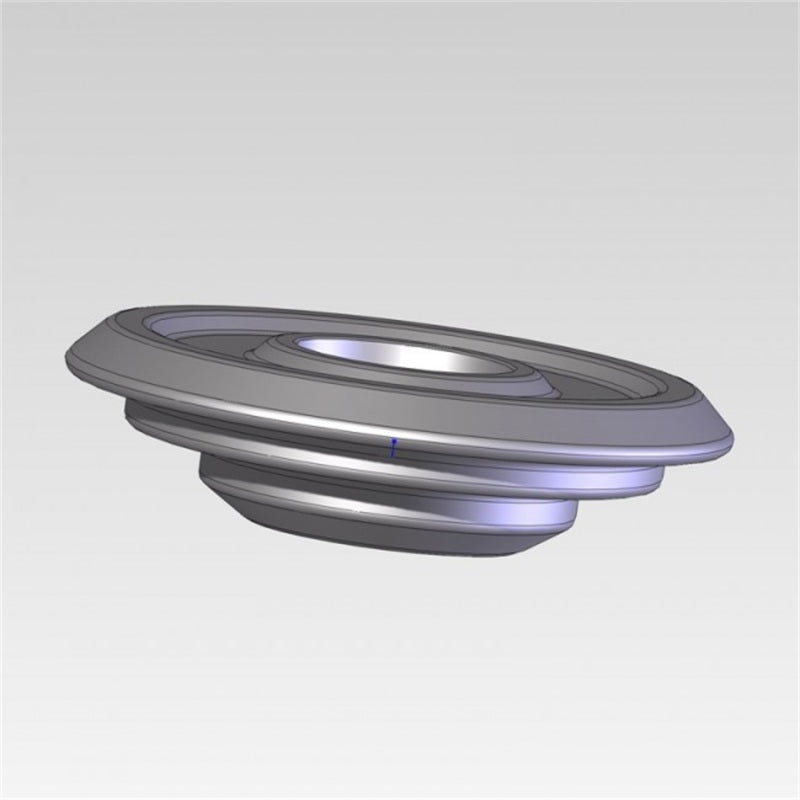

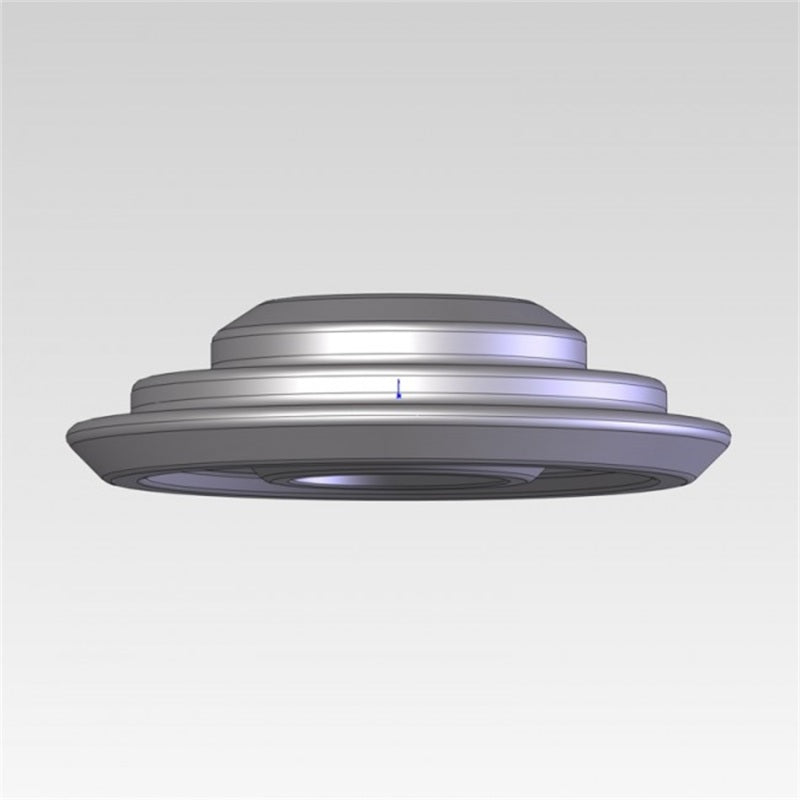

Titanium retainers are precision-machined using advanced CAD and FEA methods, featuring radius-cut edges, lightening grooves, and reduced profile heights for optimal clearance and weight savings. Designed for racing and high-revving engines, this Alpha Series kit enhances valvetrain performance for applications such as 1999-2000 Honda Civic Si, 1994-1997 Civic del Sol VTEC, and 1992-2001 Acura Integra GS-R/Type R. While not compatible with certain Pro Series camshafts, this race-ready kit is ideal for performance builds looking to support elevated RPM limits, more aggressive cam profiles, and improved horsepower potential.
