SHW Performance AFR45006 Front Right Rotor for 2020-2026 Audi SQ7/SQ8 4.0T V8

Vehicle Fitment

• 2020-2026 Audi SQ7 - 4.0L Twin-Turbo V8, quattro AWD; front right
• 2020-2026 Audi SQ8 - 4.0L Twin-Turbo V8, quattro AWD; front right
• 2020-2026 Audi RS Q8 - 4.0L Twin-Turbo V8 mild hybrid, quattro AWD; front right
• 2024-2026 Audi Q8 55 TFSI e quattro - 3.0L Turbo V6 Plug-In Hybrid, quattro AWD; front right
• 2024-2026 Audi Q8 60 TFSI e quattro - 3.0L Turbo V6 Plug-In Hybrid, quattro AWD; front right

Fitment Notes

• Position: Front Right (Passenger Side).
• Rotor must be matched to the vehicle's factory 400 mm front brake configuration.
• OEM reference: 4M0 615 302 K / 4M0615302K.
• Paired opposite-side rotor: SHW Performance AFL45005.
• Designed for two-piece factory-style front brake systems.
• quattro all-wheel drive is required for the listed Audi applications.
• Premium Plus and Prestige SQ7/SQ8 trims are specifically cataloged.
• 2026 SQ7/SQ8 and RS Q8 catalog coverage is present; verify VIN and factory brake configuration before ordering.
• Do not substitute for vehicles equipped with a different front rotor diameter or brake package.

Features

• SHW Performance OE-style lightweight front brake rotor.
• Front right/passenger-side specific design.
• 400 mm rotor outside diameter.
• 38 mm nominal rotor thickness.
• Two-piece rotor construction reduces unsprung mass compared with conventional one-piece designs.
• Internally vented design promotes heat dissipation during repeated braking.
• Smooth, non-drilled and non-slotted friction surface maintains OE-style braking characteristics.
• High-carbon cast construction provides thermal stability under demanding braking conditions.
• Coated rotor surface helps resist corrosion on exposed areas.
• ECE R90 approved.
• Designed as a direct replacement for the specified factory rotor.
• Manufactured to match the OE 4M0615302K application.

Specifications

• Brand: SHW Performance
• Part Number: AFR45006
• Product Type: Front Right Brake Rotor
• Position: Front Right / Passenger Side
• Rotor Diameter: 400 mm
• Rotor Thickness: 38 mm
• Minimum Thickness: 36 mm
• Rotor Construction: Two-Piece
• Ventilation: Internally Vented
• Friction Surface: Smooth
• Material: High-Carbon Cast Iron
• Surface Treatment: Coated
• Weight: 16.1 kg
• ECE Approval: R90
• OEM Reference: 4M0615302K
• Opposite-Side Rotor: AFL45005
• Quantity: 1 rotor

Included Components

• 1x SHW Performance AFR45006 Front Right 400 mm Brake Rotor

Product Description

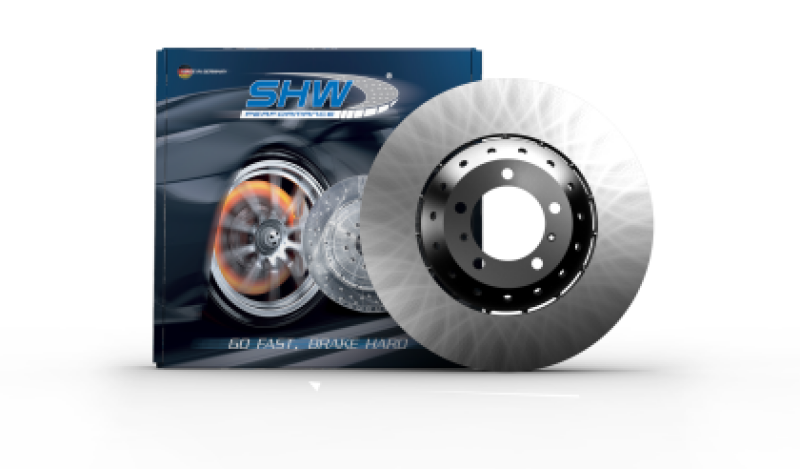

The SHW Performance AFR45006 is a lightweight, two-piece front right brake rotor designed for Audi performance applications using the 400 mm factory front brake configuration. It features a 400 mm outside diameter, 38 mm nominal thickness and internally vented construction. The smooth friction surface maintains an OE-style braking design while the high-carbon material provides thermal stability during demanding street and performance driving.

AFR45006 is engineered as the passenger-side counterpart to SHW Performance AFL45005 and cross-references to Audi OE part number 4M0615302K. Its two-piece construction is designed to reduce unsprung weight while retaining the dimensional requirements of the original braking system. The rotor is coated for additional corrosion protection and carries ECE R90 approval.

The rotor is cataloged for Audi SQ7, SQ8 and RS Q8 applications, as well as selected Q8 TFSI e quattro models using the same 400 mm front brake specification. Because Audi offers multiple factory brake configurations, the existing rotor dimensions and OE part number should be matched before installation. AFR45006 is sold individually for the front right side.
