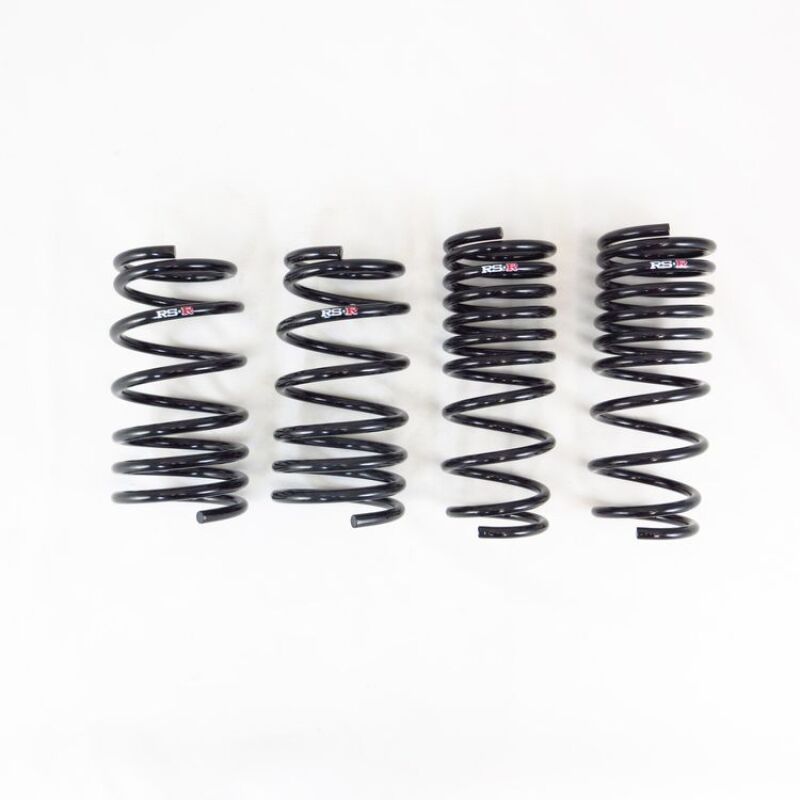

RS-R T067S Super Down Lowering Springs for 2022-2026 Toyota GR86 ZN8 35mm Drop

Vehicle Fitment

• 2022-2026 Toyota GR86 (ZN8 chassis)

Fitment Notes

• Fits 6-speed manual transmission models
• GR86-specific spring rates - for Subaru BRZ, order F067S
• Designed for use with factory shocks - performance shocks recommended for optimal results
• Suspension alignment required after installation
• Professional installation recommended
• Drop measurements are approximate and may vary based on vehicle condition and options

Features

• Super Down Series - aggressive lowered stance with improved handling
• Lowers front approximately 30-35mm (1.2" to 1.4")
• Lowers rear approximately 30-35mm (1.2" to 1.4")
• Engineered spring rates matched to GR86 suspension geometry
• Progressive rate design maintains ride comfort while reducing body roll
• Reduces fender gap for aggressive street appearance
• Lowers center of gravity for improved cornering performance
• Cold-wound from high-tensile SAE 9254 spring steel
• Shot-peened and heat-treated for extended durability
• Powder-coated finish resists corrosion
• Made in Japan by RS-R - Japan's #1 aftermarket spring manufacturer

Specifications

• Part Number: T067S
• Series: Super Down
• Type: Lowering Spring Set
• Position: Front and Rear
• Quantity: Set of 4 (2 front, 2 rear)
• Front Lowering: 30-35mm (1.2" to 1.4")
• Rear Lowering: 30-35mm (1.2" to 1.4")
• Front Spring Rate: 3.57 kg/mm
• Rear Spring Rate: 4.80 kg/mm
• Material: SAE 9254 High-Tensile Spring Steel
• Finish: Powder Coated
• Country of Origin: Japan

Included Components

• Front lowering springs (2)
• Rear lowering springs (2)

Product Description

The RS-R T067S Super Down Lowering Springs deliver an aggressive lowered stance and significantly improved handling for 2022-2025 Toyota GR86 owners. This complete front and rear spring set lowers your GR86 approximately 30-35mm at all four corners, eliminating excessive fender gap while dramatically lowering the center of gravity for enhanced cornering performance. RS-R engineers developed application-specific spring rates (3.57 kg/mm front, 4.80 kg/mm rear) that work in harmony with the GR86's factory suspension geometry, shock dampening characteristics, and weight distribution. The progressive rate design provides excellent body roll control during spirited driving while maintaining acceptable ride quality for daily use. Cold-wound from premium SAE 9254 high-tensile spring steel and finished with shot-peening, heat treatment, and powder coating, these springs deliver long-lasting durability and corrosion resistance. As Japan's number one aftermarket spring manufacturer, RS-R backs these springs with a 3-Year/36,000-mile warranty.
