RS-R XLIT191MA Best-i Active Coilovers for 2014-2016 Lexus IS250/IS350

Vehicle Fitment

• 2014-2016 Lexus IS250, RWD, F Sport, Chassis Code: GSE31
• 2014-2016 Lexus IS350, RWD, F Sport, Chassis Code: GSE31

Fitment Notes

• Compatible with the factory AVS (Adaptive Variable Suspension) system - the factory electronic actuator continues to control damping on this coilover, unlike standard aftermarket coilovers that lose this function
• RWD F Sport trim specific - confirm chassis code GSE31 before ordering
• Not an emissions-related item

Features

• Retains full function of the factory AVS electronic damping controller - damper adjustments continue to run through the factory system
• Monotube, hand-assembled damper system built to improve ride quality, performance, and comfort together
• Laser-cut upper mounts and hand-welded lower brackets, vehicle-specific valving, all hand-assembled for precision and quality
• Roller bearings eliminate spring twist noise on MacPherson-type suspension as the coil springs rotate with the steering wheel
• Urethane bushings reduce excess vibration from everyday driving and minimize suspension movement noise
• Rubber padding further helps eliminate potential noise from suspension movement
• 36-way primary damper adjustment plus a secondary 24-way adjustment dial located at the base of the dampers
• On select vehicles, the upper mount can add 1.5 degrees of camber from preset by unbolting and rotating the mount plate 180 degrees

Specifications

• Part Number: XLIT191MA
• Brand: RS-R
• Product Line: Best-i Active Coilovers
• Preset Height, Front: -35mm to -40mm (-1.4in to -1.6in)
• Preset Height, Rear: -35mm to -40mm (-1.4in to -1.6in)
• Maximum Adjustment, Front: +25mm to -95mm (+1.0in to -3.7in)
• Maximum Adjustment, Rear: -10mm to -60mm (-0.2in to -2.4in)
• Recommended Adjustment, Front: -5mm to -60mm (-0.2in to -2.4in)
• Recommended Adjustment, Rear: -10mm to -60mm (-0.4in to -2.4in)
• Front Spring Rate: 10.00 kg/mm
• Rear Spring Rate: 8.30 kg/mm
• Damper Control: Factory AVS-compatible

Included Components

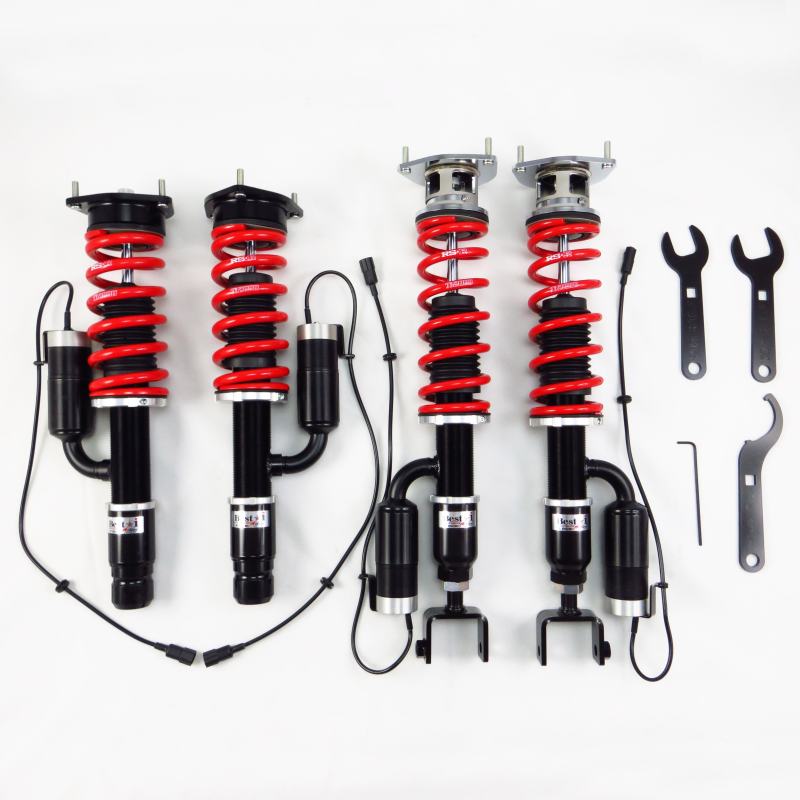

• 4x RS-R Best-i Active Coilover Assemblies (Front and Rear, pair each)

Product Description

The RS-R XLIT191MA Best-i Active coilover system solves the problem most aftermarket coilover swaps run into on a factory-AVS-equipped Lexus: the electronic adaptive damping system normally stops working the moment the factory shocks come out. RS-R engineers the Best-i Active line to keep that factory actuator functioning on an aftermarket coilover, so 2014-2016 IS250 and IS350 F Sport owners can lower and upgrade their suspension without losing the electronically adjustable damping built into the car.

Beyond the factory-integration feature, the coilover carries RS-R's full build standard - hand-assembled monotube dampers with laser-cut upper mounts and hand-welded lower brackets, roller bearings to eliminate spring twist noise, and urethane bushings to cut down on everyday driving vibration. A 36-way primary damper adjustment is joined by a secondary 24-way dial at the base of the damper for finer tuning, and select vehicles can gain an additional 1.5 degrees of camber by rotating the upper mount plate.

A front spring rate of 10.00 kg/mm pairs with an 8.30 kg/mm rear rate, tuned specifically for the IS chassis. Height adjusts well beyond the factory preset - up to -95mm at the front and -60mm at the rear - giving F Sport owners substantial range to dial in stance while keeping the factory AVS damping control fully intact.
