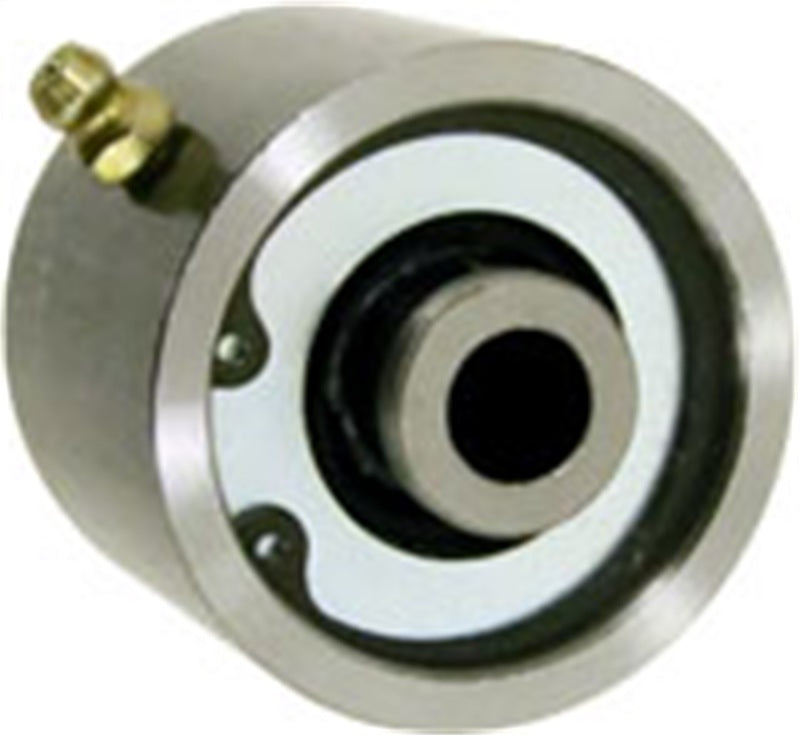

RockJock CE-9112P-12 2in Johnny Joint Weld-On Rod End Ext Greased .500in Ball

Vehicle Fitment

• Universal - weld-on rod end for custom suspension, steering, and traction bar fabrication (not vehicle-specific)

Fitment Notes

• Sold individually (each) - order 2 for a matched pair application
• Must be welded to a tube or bracket; this is a weld-in joint, not a bolt-in rod end
• Externally greased via zerk fitting - the center ball is not cross-drilled for internal thru-bolt lubrication
• Requires a separate 1/2 in. thru-bolt (sold separately) to complete the joint assembly

Features

• 2 in. Johnny Joint rod end offers up to 30 degrees of unrestricted movement in any direction, versus roughly 22 degrees on a common heim joint
• High-density "Tough 88" urethane bushing encases the inner ball for durable, weather-resistant cushioning
• Heat-treated steel center ball provides extra strength under load
• .180 in. DOM (drawn-over-mandrel) steel outer shell for weld-in fabrication strength
• Externally greased via zerk fitting for straightforward maintenance
• Heat-treated steel retaining washers support long-term durability
• Fully rebuildable design extends service life without full joint replacement
• 3-piece weld-in construction suited to custom control arms, traction bars, and steering links

Specifications

• Part Number: CE-9112P-12
• Brand: RockJock 4x4
• Joint Diameter: 2 in.
• Ball Bore: .500 in.
• Mounting Width: 2 in. (OAW)
• Outer Shell: .180 in. DOM steel tubing
• Grease Type: External, via zerk fitting
• Construction: 3-piece, weld-in
• Sold As: Each

Included Components

• 1x Johnny Joint Rod End (2 in., .500 in. ball, weld-in)

Product Description

The RockJock CE-9112P-12 is a 2 in. Johnny Joint rod end built for fabricators and suspension system builders who need a weld-in articulating joint rather than a bolt-in replacement. Like RockJock's other Johnny Joints, it's designed to deliver significantly more range of motion than a standard heim joint - up to 30 degrees of unrestricted movement in any direction - while a high-density urethane bushing cushions the joint for smoother, quieter operation than a metal-on-metal heim.

This version features a .500 in. ball bore and a 2 in. mounting width, with a heat-treated steel center ball and retaining washers for durability under load. The .180 in. DOM steel outer shell is designed to be welded directly into a custom-fabricated control arm, traction bar, or steering link. The joint is externally greased through a zerk fitting rather than through the bolt, so maintenance is done from the outside of the joint.

Because this is a universal, application-non-specific part, it's sold individually rather than as a matched pair or vehicle-specific kit - builders should order two for a symmetrical application and source a compatible 1/2 in. thru-bolt separately to complete the assembly.
