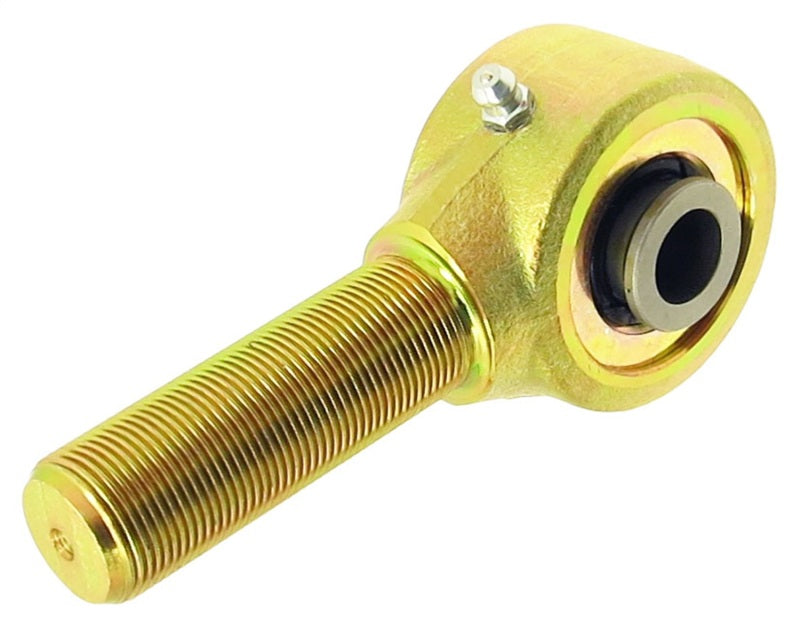

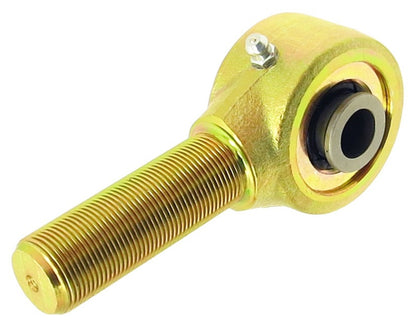

RockJock CE-9116N-23 2in Narrow Forged Johnny Joint 7/8in-14 RH Thread Universal

Vehicle Fitment

• Universal - Designed for custom off-road suspension fabrication and replacement applications
• Commonly used in trac bars, control arms, and custom link tubes on Jeep Wrangler (TJ, LJ, JK, JL), Jeep Gladiator (JT), Jeep Cherokee (XJ), Jeep Grand Cherokee (ZJ/WJ), and other solid-axle off-road platforms

Fitment Notes

• Threaded forged rod end - threads directly into components with a 7/8 in.-14 RH threaded receiver; no welding required
• 1.640 in. mounting width with .640 in. bore - slightly wider and larger bore than the CE-9116N-13 (1.600 in. / .562 in.); confirm clearance and bolt diameter requirements before ordering
• .640 in. thru-bolt bore (5/8 in. class) - no bolt included; source separately to match application
• Uses narrow-body-specific one-piece urethane internals - not interchangeable with standard-body internals
• Left-hand thread version available as CE-9116NL-23
• Rebuild kit CE-9112RK available separately for long-term serviceability
• Do NOT over-grease - use a hand pump grease gun only; pneumatic or electric grease guns can damage the joint

Features

• Narrow body design allows up to 40 degrees of unrestricted articulation - nearly double the 22-degree limit of a standard heim joint
• One-piece high-performance "Tough 88" urethane bushing unique to the narrow-body family provides a firm, load-capable feel and weather resistance
• Heat-treated center ball cross-drilled for thru-bolt lubrication and extended service life
• Narrow forged steel body maximizes articulation in tight suspension clearance environments
• External zerk fitting allows quick, tool-free greasing without disassembly
• Gold zinc plated finish for corrosion resistance in off-road and daily-driven environments
• Fully rebuildable using CE-9112RK rebuild kit
• Backed by RockJock's Limited Lifetime Warranty

Specifications

• Joint O.D.: 2.000 inches
• Body Type: Narrow Forged Steel (Threaded)
• Ball Size: 1.640 in. x .640 in.
• Mounting Width: 1.640 inches
• Thru-Bolt Hole: .640 inches (5/8 in. class)
• Thread Size: 7/8 in.-14 RH (Right Hand)
• Thread Shank Length: 2 1/4 inches
• Bushing Material: One-Piece High-Performance "Tough 88" Urethane (Narrow-Body Specific)
• Greasing Method: External Zerk Fitting / Cross-Drilled Center Ball
• Finish: Gold Zinc Plating
• Articulation: Up to 40 degrees (narrow body)
• Bolt Included: No
• Rebuild Kit: CE-9112RK
• Origin: Made in USA
• Warranty: Limited Lifetime

Included Components

• 1x Johnny Joint 2 in. Narrow Forged Rod End with 7/8 in.-14 RH Thread (CE-9116N-23)
• Note: Thru-bolt is NOT included

Product Description

The RockJock CE-9116N-23 is a 2-inch narrow-body forged Johnny Joint rod end with a 7/8 in.-14 RH threaded shank and a 1.640 in. x .640 in. ball. It shares the same 7/8-inch thread size as the CE-9116N-13 but steps up to a larger .640 in. (5/8-inch class) thru-bolt bore and a slightly wider 1.640 in. mounting width - making it the correct choice when a larger thru-bolt diameter is required at this thread size. Like all narrow-body Johnny Joints, it delivers up to 40 degrees of unrestricted articulation through its one-piece high-performance urethane bushing design, well beyond the range of standard heim joints (22°) or standard-body Johnny Joints (30°).

The heat-treated center ball is cross-drilled for thru-bolt lubrication, and an external zerk fitting allows quick greasing without removing the joint from the vehicle. The gold zinc plated finish provides corrosion resistance for daily and trail use. No thru-bolt is included - source a 5/8 in. class bolt separately to match your application's length and grade requirements. A left-hand thread equivalent is available as CE-9116NL-23, and the joint is fully rebuildable using RockJock's CE-9112RK rebuild kit. Backed by a Limited Lifetime Warranty.
