RockJock CE-9114-22 2.5in Forged Johnny Joint 1-1/4in-12 RH Thread 2.812x.750

Vehicle Fitment

• Universal - Designed for custom off-road suspension fabrication and replacement applications
• Commonly used in RockJock adjustable control arms, trac bars, drag links, and custom suspension builds on Jeep Wrangler (TJ, LJ, JK, JL), Jeep Gladiator (JT), Jeep Cherokee (XJ), Jeep Grand Cherokee (ZJ/WJ), and other solid-axle off-road platforms

Fitment Notes

• Threaded forged rod end - threads directly into components with a 1 1/4 in.-12 RH threaded receiver; no welding required
• 2.812 in. mounting width - the widest in the CE-9114 standard forged family; confirm clearance and mounting width requirement before ordering
• .750 in. thru-bolt bore (3/4 in.) - designed for heavy-duty applications requiring a larger bolt diameter; no bolt included
• Left-hand thread version available as CE-9114L-22
• Rebuild kit CE-9110RK (2 1/2 in. Standard) available separately for long-term serviceability
• Do NOT over-grease - use a hand pump grease gun only; pneumatic or electric grease guns can damage the joint

Features

• Up to 30 degrees of unrestricted articulation in any direction - significantly more than a standard heim joint's 22-degree limit
• High-density "Tough 88" urethane bushings absorb shock and dampen vibration for quiet, smooth on-road performance
• Heat-treated center ball cross-drilled for thru-bolt lubrication and extended service life
• Standard forged steel body for maximum shank strength in heavy-load control arm and steering applications
• External zerk fitting allows quick, tool-free greasing without removing the joint from the vehicle
• Gold zinc plated finish provides corrosion resistance in off-road and daily-driven environments
• Fully rebuildable using CE-9110RK rebuild kit
• Backed by RockJock's Limited Lifetime Warranty

Specifications

• Joint O.D.: 2.500 inches
• Body Type: Standard Forged Steel (Threaded)
• Ball Size: 2.812 in. x .750 in.
• Mounting Width: 2.812 inches
• Thru-Bolt Hole: .750 inches (3/4 in.)
• Thread Size: 1 1/4 in.-12 RH (Right Hand)
• Thread Shank Length: 2 1/4 inches
• Bushing Material: High-Density "Tough 88" Urethane
• Greasing Method: External Zerk Fitting / Cross-Drilled Center Ball
• Finish: Gold Zinc Plating
• Articulation: Up to 30 degrees (standard body)
• Bolt Included: No
• Rebuild Kit: CE-9110RK
• Origin: Made in USA
• Warranty: Limited Lifetime

Included Components

• 1x Johnny Joint 2 1/2 in. Standard Forged Rod End with 1 1/4 in.-12 RH Thread (CE-9114-22)
• Note: Thru-bolt is NOT included

Product Description

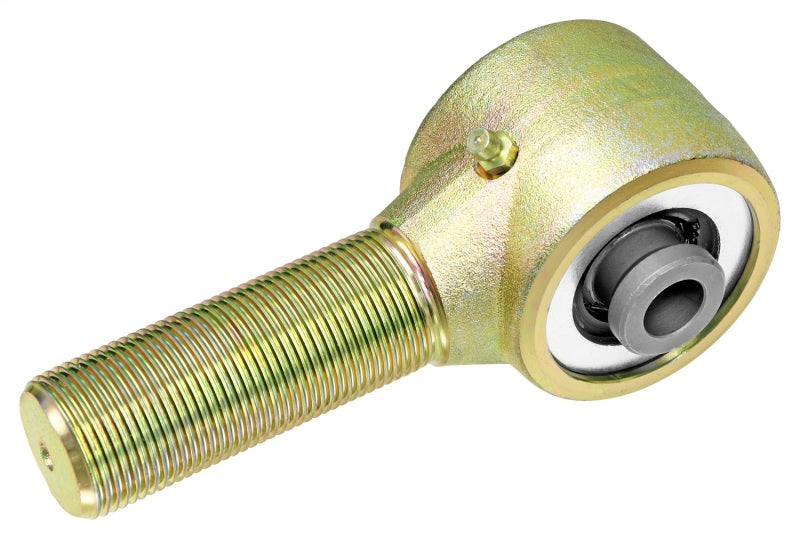

The RockJock CE-9114-22 is a 2 1/2-inch standard forged Johnny Joint rod end with a 1 1/4 in.-12 RH threaded shank and a 2.812 in. x .750 in. ball - the widest mounting width and largest bore configuration in the CE-9114 standard forged family. The oversized .750 in. (3/4 in.) thru-bolt bore makes this variant the right choice for heavy-duty applications that demand a larger bolt diameter than the more common .562 in. or .640 in. bore versions. Like all standard-body Johnny Joints, it delivers up to 30 degrees of unrestricted articulation through its high-density urethane bushing design, while cushioning road vibration and trail impacts for quiet, smooth on-road behavior.

The forged steel body is cross-drilled for thru-bolt lubrication, and an external zerk fitting enables routine greasing without disassembly. The gold zinc plated finish adds corrosion protection suited for both daily and trail use. No thru-bolt is included - source a 3/4 in. bolt separately to match your application's length and grade requirements. A left-hand thread equivalent is available as CE-9114L-22. The joint is fully rebuildable using RockJock's CE-9110RK standard rebuild kit and backed by a Limited Lifetime Warranty.
