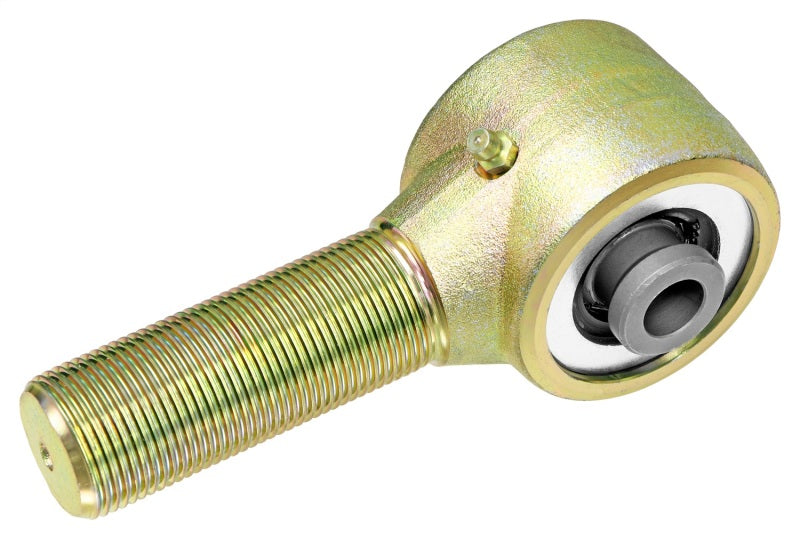

RockJock CE-9114L-24 Johnny Joint 2.5in Forged Rod End 1.25in LH Thread 2.585x.5

Vehicle Fitment

• Universal - Compatible with all suspension, steering, and control arm applications using a 1-1/4 in.-12 left-hand threaded joint mounting with a standard 2.585 in. x .562 in. ball specification

Fitment Notes

• Universal fit - verify thread direction (LH), thread size (1-1/4 in.-12), and ball mounting width (2.585 in.) and thru-bolt hole diameter (.562 in.) against your application before ordering
• Standard width body - provides 30+ degrees of articulation; for applications requiring greater articulation, see the narrow body variant
• The -24 suffix denotes the 2.585 in. overall ball width with a .562 in. thru-bolt hole - a slightly narrower ball than the standard CE-9114L (2.625 in. width); verify bracket and mounting location clearances before ordering
• Joint requires greasing at regular intervals using a hand pump grease gun only - do NOT use pneumatic or electric grease guns, as over-greasing can damage the joint
• Rebuild kits are available separately (CE-9110RK) for servicing worn joints
• Sold individually - one joint per unit

Features

• Forged steel body construction - significantly stronger than cast or machined alternatives for demanding off-road suspension and steering applications
• 1-1/4 in.-12 left-hand (LH) threaded shank - designed for use on the LH side of adjustable control arms and tie rods where LH thread is required for proper adjustment
• 30+ degrees of unrestricted articulation in any direction - substantially more movement than a standard heim joint (approx. 22 degrees), eliminating bind at extreme suspension travel
• High-density urethane bushing encases the inner ball to provide cushioning and vibration dampening that an open heim joint cannot - delivers smooth, quiet on-road performance
• Heat-treated center ball is cross-drilled for thru-bolt lubrication distribution throughout the joint
• Two heavy-duty heat-treated side washers and a snap ring retain the joint internals securely
• External 1/4 in.-28 zerk fitting for easy greasing without disassembly
• Gold zinc plating for corrosion resistance and a clean appearance
• Greaseable and rebuildable - extends service life in harsh off-road conditions

Specifications

• Part Number: CE-9114L-24
• Body Size: 2-1/2 in.
• Body Style: Standard Width, Forged
• Thread Direction: Left-Hand (LH)
• Thread Size: 1-1/4 in.-12
• Thread Length: 2-1/4 in.
• Ball Overall Width: 2.585 in.
• Thru-Bolt Hole Diameter: .562 in. (9/16 in.)
• Zerk Fitting: 1/4 in.-28 (external, pre-installed)
• Articulation: 30+ degrees (standard body)
• Bushing Material: High-Density Urethane
• Finish: Gold Zinc Plating
• Quantity: Sold individually
• Fitment Type: Universal

Included Components

• 1x RockJock CE-9114L-24 2-1/2 in. Forged Johnny Joint Rod End (LH Thread, assembled)

Product Description

The RockJock CE-9114L-24 is a 2-1/2 in. forged Johnny Joint rod end with a 1-1/4 in.-12 left-hand thread, designed for use in adjustable control arms, steering links, and other suspension components where a left-hand threaded joint is required. The -24 designation identifies the 2.585 in. overall ball width and .562 in. thru-bolt hole - a slightly narrower ball specification than the standard CE-9114L (2.625 in.), making it the correct replacement for specific RockJock suspension and steering components built to that dimension.

Johnny Joints have been a cornerstone of RockJock's suspension systems since 1996. The forged steel body houses a heat-treated ball encased in a high-density urethane bushing, delivering over 30 degrees of articulation in any direction while also providing the vibration dampening and quiet on-road performance that open heim joints cannot. The joint is externally greaseable via a 1/4 in.-28 zerk fitting and is fully rebuildable using the CE-9110RK rebuild kit. Use a hand pump grease gun only - pneumatic or electric guns can over-pressurize and damage the joint internals.
