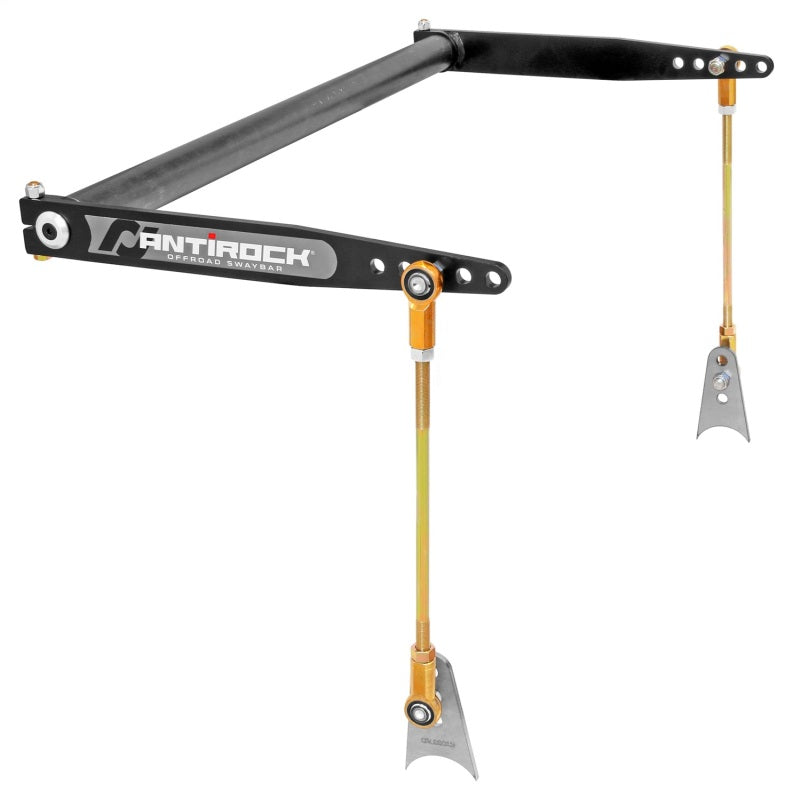

RockJock RJ-206006-101 Universal Antirock Sway Bar Kit 36in x 1in Bar 18in Arms

Vehicle Fitment

• Universal Application - designed for custom-built rigs, rock buggies, and fabricated suspension systems; not vehicle-specific

Fitment Notes

• Requires welding - this is a completely universal fabricator kit and is not a bolt-in system
• Includes everything needed to mount and install an Antirock sway bar except the welder
• Vehicles equipped with this Antirock sway bar will exhibit more body roll than vehicles running a factory sway bar, by design
• Antirock sway bars never require disconnecting for off-road use

Features

• 36 in. long x 1 in. diameter 4340 heat treated chromoly sway bar for ultimate strength, comparable to professional off-road competition sway bars
• 18 in. long fabricated steel arms allow custom builders to tune leverage and geometry for their specific application
• Adjustable sway bar links use a 14 in. long 1/2 in.-20 RH/LH threaded rod that can be cut to the builder's desired length
• Delrin sway bar bushings provide smooth, low-friction bar rotation
• Weld-on axle tabs allow the kit to be mounted on virtually any custom axle tube
• Balances front and rear suspension articulation off-road for more consistent traction
• Complete hardware pack included for a full, ready-to-fabricate installation

Specifications

• Part Number: RJ-206006-101
• Brand: RockJock 4x4
• Sway Bar: 36 in. long x 1 in. diameter, 4340 heat treated chromoly
• Mounting Tube: 34 in. long x 1 3/4 in. x .095 in. wall
• Arm Length: 18 in., fabricated steel
• End Link Rod: 14 in. long, 1/2 in.-20 RH/LH thread
• Installation: Weld-in, universal fabricator kit

Included Components

• 1x 36 in. x 1 in. 4340 Chromoly Sway Bar (RJ-204002-3)
• 1x 34 in. x 1 3/4 in. x .095 in. Wall Mounting Tube (CE-9901H)
• 2x 18 in. Fabricated Steel Sway Bar Arms (RJ-202007-103)
• 1x Set Adjustable Sway Bar Links (CE-99002RD2)
• Delrin Sway Bar Bushings (CE-9901D)
• Weld-On Axle Tabs (CE-9901G)
• 1x Hardware Pack (CE-99005A)
• Arm Stickers (RJ-720300-101)

Product Description

The RockJock RJ-206006-101 Universal Antirock Sway Bar Kit is built for fabricators and custom builders putting together their own rigs and rock buggies rather than fitting a factory production vehicle. It supplies a full 36 in. x 1 in. 4340 chromoly sway bar, 18 in. fabricated steel arms, a 34 in. mounting tube, and all the hardware, bushings, and weld-on axle tabs needed to fabricate a complete Antirock system - everything except the welder itself.

Like all Antirock sway bars, this kit is designed to balance a vehicle's front and rear suspension during off-road driving for more consistent traction, and it never needs to be disconnected for trail use the way a factory sway bar often does. The tradeoff is that vehicles running this system will show more body roll on-road compared to a factory sway bar, which is an expected characteristic of the Antirock design rather than a defect.

Because this is a fully weld-in, universal-fit kit, it's intended for builders with fabrication experience and welding equipment who are custom-mounting a sway bar system to a non-standard chassis or axle - it is not a direct bolt-on part for any specific production vehicle.
