Rigid Industries 322613 D-XL Pro 4x4 Driving Beam LED Pod Light Black Pair

Vehicle Fitment

• Universal - compatible with trucks, SUVs, Jeeps, UTVs, motorcycles, marine vessels, agricultural equipment, mining, and fire and rescue applications
• Ideal mounting locations include bumpers, grilles, A-pillars, roof mounts, roll cages, and push bars
• Off-road use only - not legal for on-road use on public streets or highways

Fitment Notes

• Surface mount - stainless steel U-shape bracket and vibration isolator included per light
• Sold as a pair (2 lights)
• Input voltage: 9-36V DC - compatible with 12V and 24V systems
• Wiring harness with Deutsch connector included

Features

• D-XL Pro series - larger 4x4-inch housing delivering up to 170% more raw lumens than the original D-Series, in a housing purpose-built for maximum output in a compact footprint
• Driving beam optic (Specter optics) - balanced oblong beam combining a bright center hot spot with strong horizontal dispersion for versatile trail and overland use
• 9,504 raw lumens per pair (4,752 per light) from 12 LEDs total (6 per light)
• Blacked-out circuit board and prominent Rigid branding for a refined, aggressive appearance
• High-grade aluminum alloy housing with UV-resistant polyester powder-coat finish
• Unbreakable polycarbonate lens for protection against trail debris and impacts
• Vibration isolator on each mount reduces vibration-induced wear on the housing and connections
• Stainless steel U-shape mounting hardware resists corrosion in wet and harsh environments
• IP68 rated - fully dust-tight and submersion-proof
• Over/under voltage protection, RFI/EMI protection, and reverse polarity protection
• RoHS compliant
• 50,000+ hour LED lifespan
• Designed, engineered, and assembled in the USA
• Backed by Rigid Industries' Limited Lifetime Warranty

Specifications

• Part Number: 322613
• Series: D-XL Pro
• Mount Type: Surface Mount
• Beam Pattern: Driving (Specter optics)
• Housing Color: Black
• Housing Dimensions: 4 inches x 4 inches (square)
• LED Count: 12 total (6 per light)
• Wattage: 89W per light (178W total)
• Amp Draw: 6.36A per light
• Raw Lumens: 9,504 lm (pair total)
• Lux @ 10m: 638.4
• Beam Distance (1 lux): 252.7m
• Beam Distance (0.25 lux): 505m
• Peak Beam Intensity: 63,841 cd
• Input Voltage: 9-36V DC
• Ingress Protection: IP68
• Housing Material: High-grade aluminum alloy
• Lens Material: Unbreakable polycarbonate
• Finish: UV-resistant polyester powder coat
• Weight: 5.0 lbs (pair)
• Quantity: 2 (sold as a pair)
• UPC: 849774027642
• Warranty: Limited Lifetime

Included Components

• 2x Rigid Industries D-XL Pro Driving LED Pod Lights (Black)
• 2x Stainless Steel U-Shape Surface Mount Brackets
• 2x Vibration Isolators
• 1x Wiring Harness with Deutsch Connector
• 1x Hardware Kit

Product Description

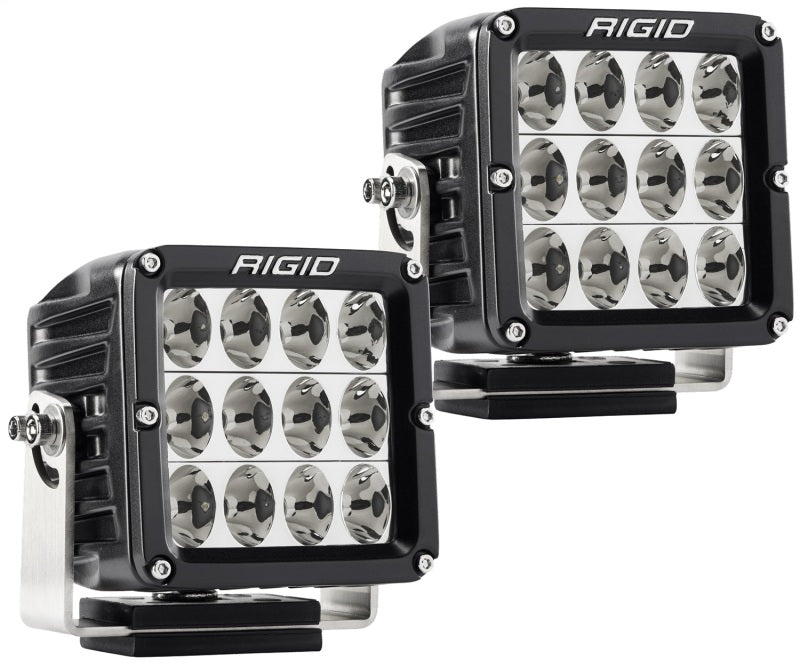

The Rigid Industries 322613 D-XL Pro is a pair of 4x4-inch square LED pod lights featuring Driving beam optics - Rigid's Specter optics system designed to produce an oblong output beam with a bright center hot spot and strong horizontal dispersion, balancing forward distance reach with wide coverage. An evolution of the original D-Series pod, the D-XL Pro's larger housing accommodates more LEDs and improved LED technology for up to 170% more raw lumens, delivering 9,504 total lumens from 12 LEDs across the pair.

Built for demanding environments, each light features a high-grade aluminum alloy housing, unbreakable polycarbonate lens, stainless steel mounting hardware, and an IP68 rating for full dust and submersion protection. A vibration isolator on each mount protects the housing and electrical connections from trail vibration. The blacked-out circuit board and prominent Rigid branding give the lights a refined aesthetic that complements modern off-road builds. Wiring harness with Deutsch connector included. Compatible with 9-36V DC systems. Backed by Rigid Industries' Limited Lifetime Warranty. Off-road use only.
