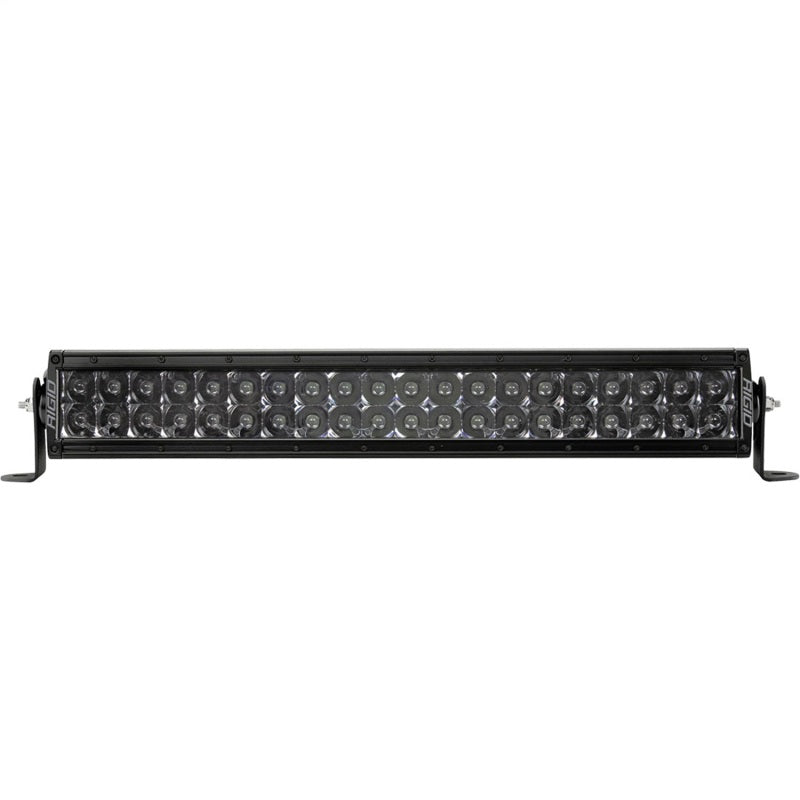

Rigid Industries 120213BLK E-Series PRO 20" Midnight Spot LED Light Bar Dual Row

Vehicle Fitment

Universal fit - this light bar is not vehicle-specific and is compatible with virtually any platform including trucks, Jeeps, SUVs, UTVs, ATVs, powersports, marine vessels, agricultural equipment, and first responder vehicles. Mounting brackets and hardware are included for surface mounting. Vehicle-specific mounting kits may be available separately from Rigid Industries' catalog for direct-fit installation. For off-road use only.

Fitment Notes

• Universal surface-mount design - compatible with any platform where appropriate mounting surface is available
• Included L-bracket mounting feet allow installation in most bumper, grille, windshield, and roof locations
• Wide 9V-36V operating range supports both 12V and 24V electrical systems across automotive, marine, and commercial platforms
• For off-road use only - not street legal for on-highway use in the United States
• Applications include off-road vehicles, power sports, marine, agricultural, industrial, and first responder equipment

Features

• Midnight Edition Hybrid Spot Optics with translucent black enamel coating - a fully blacked-out appearance during the day with zero visual presence, while delivering full LED output at night; black oxide hardware, dark grey screen-printed logos, and black embossed bezel lettering complete the stealthy aesthetic
• Dual row of 40 white LEDs in a straight bar configuration - double row architecture delivers maximum lumen density and sustained output for the 20-inch form factor compared to single-row designs
• Produces 25,080 raw lumens at 214 watts - with 3,340 lux at 10 meters, a peak beam intensity of 334,029 candela, and a beam distance of 578 meters at 1 lux (1,156 meters at 0.25 lux)
• Narrow 19° x 17° spot beam pattern optimized for extreme long-distance forward illumination - designed for high-speed open terrain driving where spotting obstacles far ahead is critical
• Extruded aluminum housing with UV-resistant black powder coat finish and integrated custom oversized heat sink - efficiently dissipates heat from 40 LEDs to maintain consistent output and extend service life
• IP68 certified dust and water ingress protection - fully sealed for total submersion resistance and proven performance in all weather conditions
• SAE J575 compliant for shock and vibration resistance - engineered to handle sustained off-road impacts, vibration, and trail abuse without failure
• Impact-resistant polycarbonate lens shields the optic array from debris, rocks, and trail abrasion without degrading light output
• Special black polymer-coated circuit board adds a refined internal look and additional protection from heat and environmental contamination
• Built-in RFI/EMI filtering, reverse polarity protection, and over/under voltage protection - safeguards the light bar's electronics from electrical system irregularities
• 9V-36V DC wide voltage range operates reliably on standard 12V automotive, 24V commercial/agricultural/marine, and fleet electrical systems
• 50,000+ hour LED lifespan - no bulb replacement required over the operating life of the light
• Operating temperature range: -40°F to 145°F - performs in extreme cold and heat across all climates
• RoHS compliant - manufactured without restricted hazardous substances
• Designed and manufactured in Gilbert, Arizona, USA - Rigid Industries in-house engineering, production, and quality control

Specifications

• Part Number: 120213BLK
• Series: E-Series PRO Midnight Edition
• Light Type: Dual Row LED Light Bar
• Beam Pattern: Spot
• Optics: Hybrid Spot - Translucent Black Enamel (Midnight)
• LED Count: 40 White LEDs
• Raw Lumens: 25,080
• Watts: 214W
• Current Draw @ 14V: 15.29A
• Voltage Range: 9V-36V DC
• Lux @ 10m: 3,340
• Peak Beam Intensity: 334,029 cd
• Beam Distance @ 1 LUX: 578m
• Beam Distance @ 0.25 LUX: 1,156m
• Horizontal Beam Angle: 19°
• Vertical Beam Angle: 17°
• Length: 20" nominal (approx. 22-23" with mounting feet)
• Weight: 6.1 lbs
• Housing: Extruded Aluminum, UV-Resistant Black Powder Coat
• Lens: Impact-Resistant Polycarbonate, Clear
• Hardware Finish: Black Oxide
• Mount Type: Surface Mount (L-Bracket)
• IP Rating: IP68
• Operating Temperature: -40°F to 145°F
• LED Lifespan: 50,000+ hours
• Compliance: IP68, SAE J575 (Shock/Vibration), RoHS, RFI/EMI, Over/Under Voltage, Reverse Polarity
• Country of Origin: USA (Gilbert, AZ)
• Warranty: Rigid Industries Limited Lifetime Warranty

Included Components

• 1x Rigid Industries E-Series PRO 20" Midnight Spot LED Light Bar (120213BLK)
• 2x L-Shape Surface Mounting Brackets with hardware
• 1x Wiring Harness with Switch (Deutsch connector)

Product Description

The Rigid Industries 120213BLK is the E-Series PRO 20-inch Spot Light Bar in Midnight Edition - Rigid's original and most iconic double-row LED platform in its latest updated form, dressed in full Midnight trim. Where the SR-Series PRO 930214BLK offers a low-profile single row, the E-Series PRO is the higher-output double-row benchmark - packing 40 LEDs and 25,080 raw lumens into a 20-inch bar that delivers 214 watts of spot-focused power. The Midnight Edition treatment applies a translucent black enamel over Rigid's Hybrid Spot optics, rendering the light bar nearly invisible against dark bumpers, brush guards, and roof racks during the day. At night, it projects a tight 19° x 17° beam to 578 meters at 1 lux and 1,156 meters at 0.25 lux - with a peak intensity of 334,029 candela that makes it one of the most powerful 20-inch spot configurations in the category.

The E-Series PRO's dual-row design provides substantially more lumen output per inch than single-row bars, making the 20-inch format well-suited for bumper mounting on mid-size trucks and SUVs, windshield mounting on UTVs, or forward-facing roofline placement where the wider, taller body is not a constraint. The extruded aluminum housing integrates an oversized heat sink that keeps the 40 LEDs thermally stable over extended high-duty use cycles. IP68 sealing provides complete protection against dust and water submersion, while SAE J575 compliance confirms the bar has been tested to withstand the shock and vibration loads of off-road driving. The black polymer-coated circuit board, black oxide hardware, and Midnight-coated lens give the 120213BLK a fully cohesive all-black internal and external appearance that stands out from standard clear-lens configurations.

The 120213BLK draws 15.29 amps at 14V on a 9V-36V input range, accommodating 12V automotive and 24V commercial or marine systems. Rigid's high-power relay harness (part 40190) or the 3-wire single light harness (part 40187) are recommended for switched power management and are available separately through Rigid Industries. The 50,000+ hour LED lifespan eliminates maintenance. Built-in RFI/EMI filtering, reverse polarity protection, and over/under voltage protection guard the electronics from electrical faults in demanding vehicle environments. Designed and manufactured in Gilbert, Arizona, the 120213BLK is covered by Rigid Industries' Limited Lifetime Warranty. Two are required for a symmetrical paired installation on bumper or grille guard applications.
