Rigid 110113 E-Series PRO 10" Dual Row Flood LED Light Bar -Universal, Off-Road

Vehicle Fitment

• Universal--suitable for trucks, SUVs, ATVs/UTVs, marine, and first responder vehicles with 10" light bar mounts

Fitment Notes

• Requires 10" mounting surface or bracket; sold individually
• 12-36 V input--direct-wiring via fused harness (included)
• Not DOT-approved for street-facing headlights--off-road use only

Features

• Dual-row E-Series PRO housing with 20 LEDs delivers raw 15,840 lm (10" Flood pattern)
• Hybrid optics focusing light sharply with 169 m @1 lux beam distance
• IP68-rated, SAE J575-compliant for dust, water, shock, and vibration resistance
• 9-36 V DC, over/under voltage, reverse-polarity, and RFI/EMI protected circuitry
• Polycarbonate lens, aluminum alloy housing, integrated thermal management
• Pressure equalizing vent maintains reliability across temp extremes
• Durable UV-resistant black powder coat; 50,000+ hr LED lifespan
• Made in USA and covered by a limited lifetime warranty

Specifications

• Part Number: 110113
• Length: 10"; LED Count: 20; Wattage: 185 W; Amp Draw: 13.21 A
• Raw Lumens: 15,840 lm; Lux @10 m: 285.75; Distance @1 lux: 169 m
• Voltage Range: 9-36 V DC; LED Optics: Flood; Beam Angle: ~50°H x 47°V
• Housing: Black powder coat aluminum; Lens: Polycarbonate; Weight: ~4.12 lb

Included Components

• 1x 10" Rigid E-Series PRO Flood Light (110113)
• 2x Mounting brackets & hardware
• 1x Wiring harness with switch (no connect-and-play adapter)
• Replaceable gasket & pressure equalizing vent

Product Description

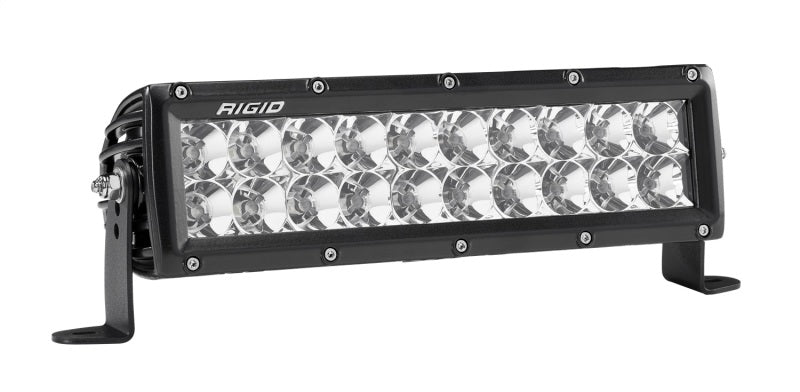

The Rigid Industries 110113 E-Series PRO 10" Flood Light is a rugged, high-performance LED bar ideal for off-road, marine, and utility applications. With 20 LEDs pushing 15,840 lumens and a precise flood beam reaching 169 m at 1 lux, it brings powerful visibility to any environment. Built in the USA with IP68/IP69K rating, hybrid optics, and a two-piece housing, it withstands harsh elements while offering easy servicing and long-term reliability.

Operating on a broad 9-36 V DC range and featuring comprehensive electrical protection, the 110113 is purpose-built for professional and enthusiast use. Though not street-legal as a headlight, it excels on trails, boats, and work vehicles. Covered by Rigid's limited lifetime warranty, this compact yet potent light bar offers unmatched ruggedness and luminosity in a 10" package.
