Ridetech 24359901 TQ Series Coil-Over Shock 5.2in Travel with Coil Kit

Vehicle Fitment

• Universal fit - competition-ready coilover designed to be custom configured to virtually any length or mounting style, not tied to a specific vehicle

Fitment Notes

• Sold individually (each), includes coil spring kit
• Bearing upper and lower mounts
• Designed for 2.5" ID coil springs

Features

• Triple-adjustable: 24-position rebound plus separate high-speed and low-speed compression adjustment
• Remote reservoir connected via 30" braided line for flexible mounting in tight spaces
• Monotube, gas-pressurized design, far superior to twin-tube shocks
• Powdercoated, high-tensile premium steel CNC cold-wound spring - lighter, more bow-resistant, and offering increased travel
• Impact-forged aluminum body with anodized finish
• Larger piston, double-sealed rod guide, 5/8" chrome shock shaft
• CNC-machined billet hardware included
• 1,000,001-mile warranty

Specifications

• Stroke/travel: 5.2"
• Mount type: Bearing, upper and lower
• Coil spring ID: 2.5"
• Adjustability: Rebound + high/low-speed compression
• Remote reservoir line length: 30"

Included Components

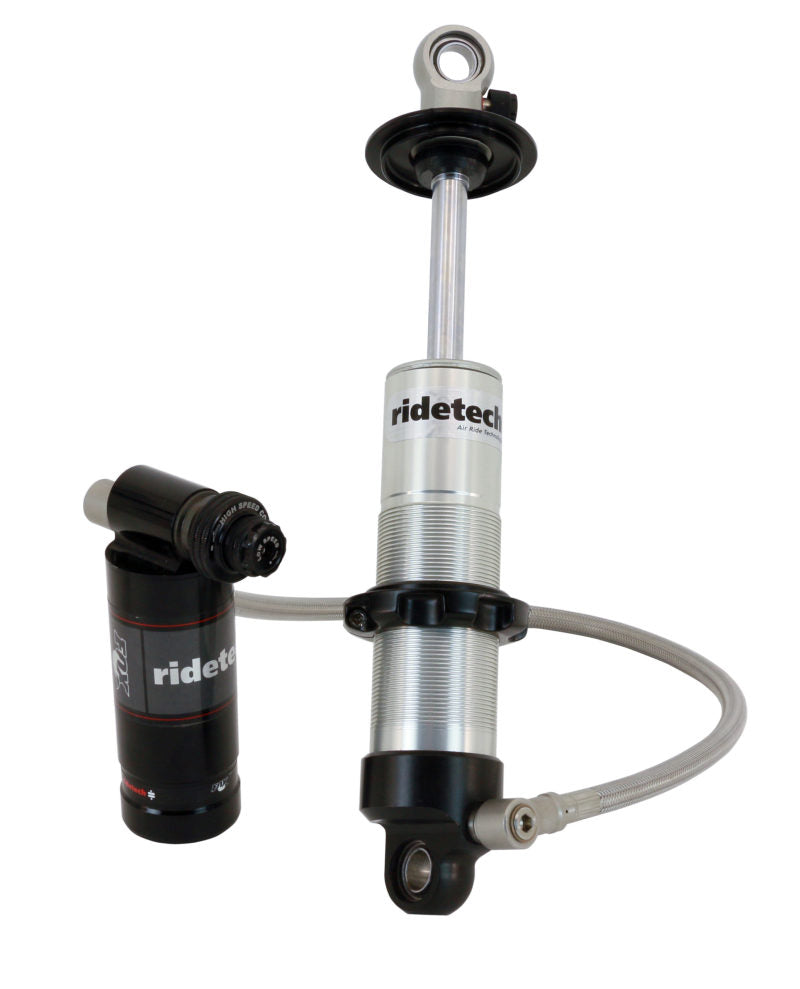

• 1x TQ Series Coil-Over Shock with Remote Reservoir
• Coil Spring Kit
• CNC-Machined Billet Hardware

Product Description

The Ridetech 24359901 is a 5.2" travel TQ Series coilover shock built for track-level performance in custom suspension applications. Unlike Ridetech's HQ Series, the TQ line adds independent high-speed and low-speed compression adjustment on top of 24-position rebound, giving serious control over how the suspension responds to both small bumps and hard hits.

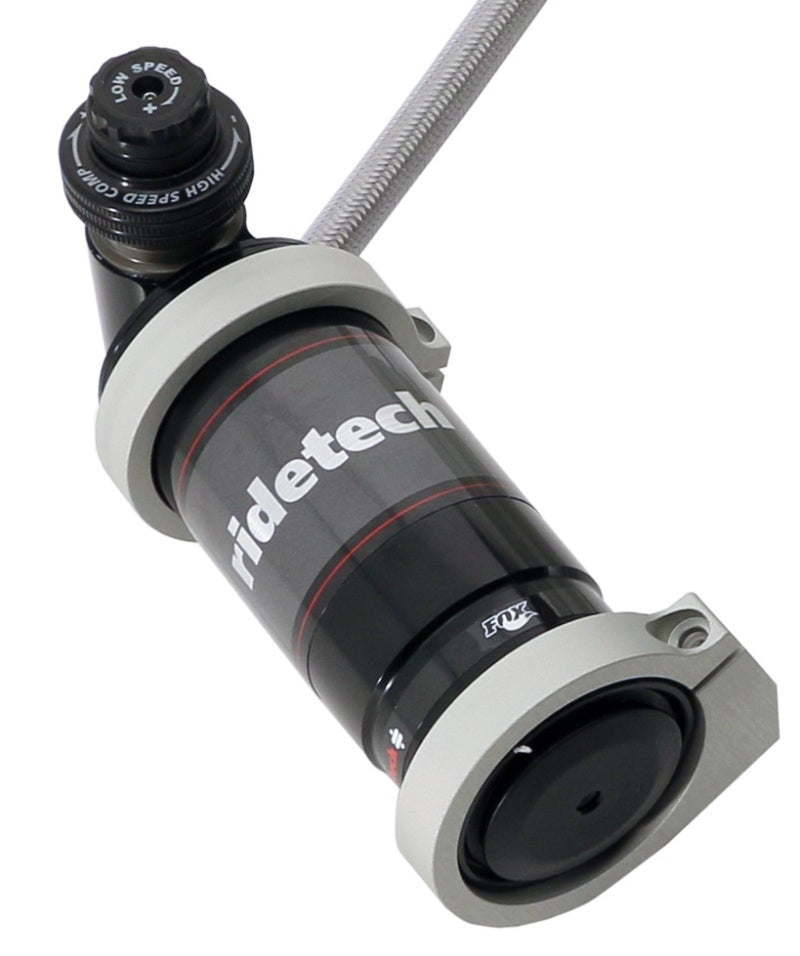

The remote reservoir, connected via a 30" braided line, allows for flexible mounting where space is tight, and it ships complete with a matched coil spring kit rather than requiring a separate spring purchase. Built for road courses, race tracks, and demanding street applications, it's aimed at builders who've outgrown the HQ Series and want competition-grade adjustability.
