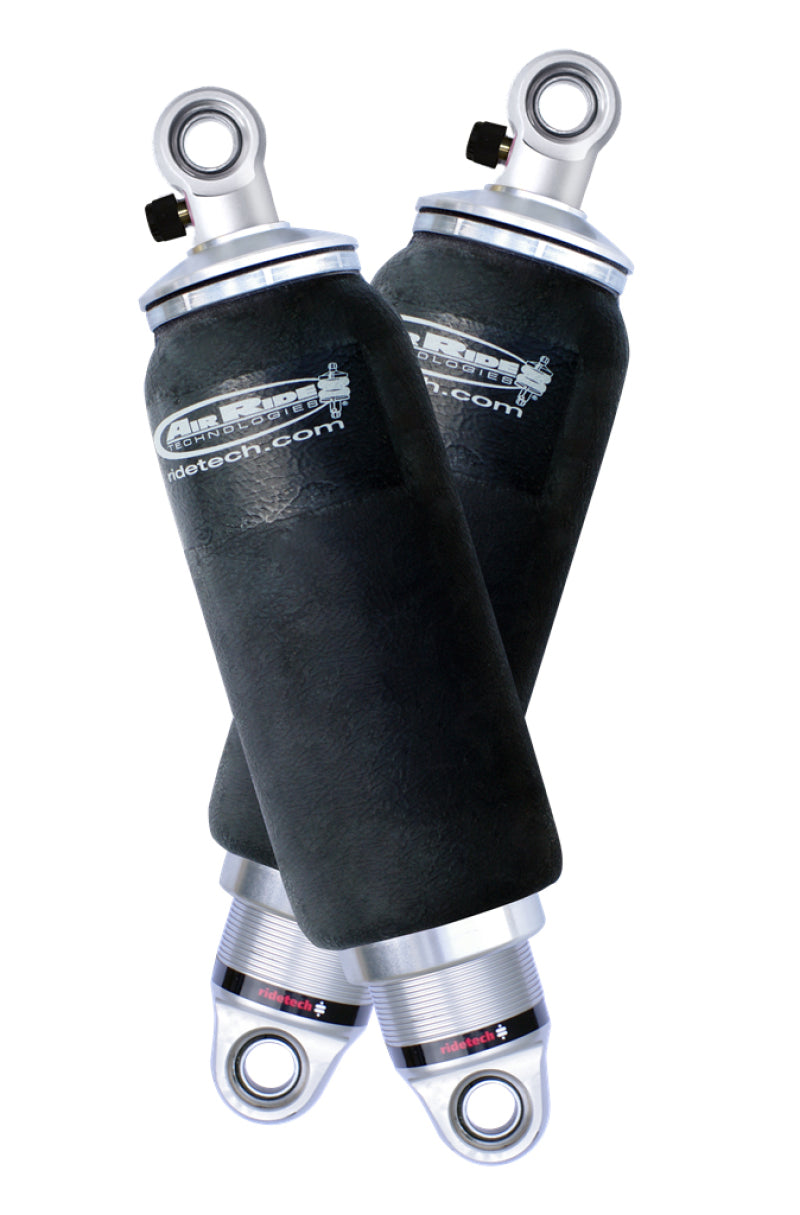

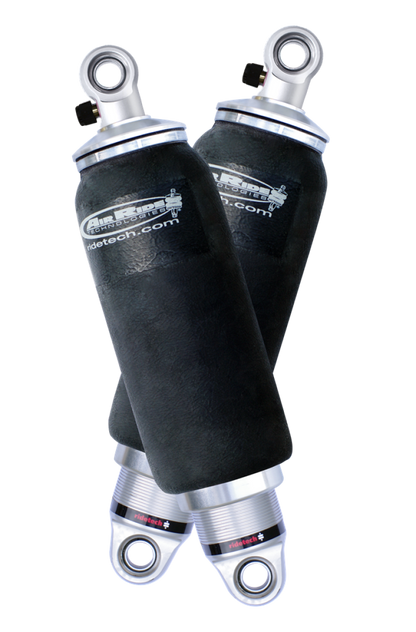

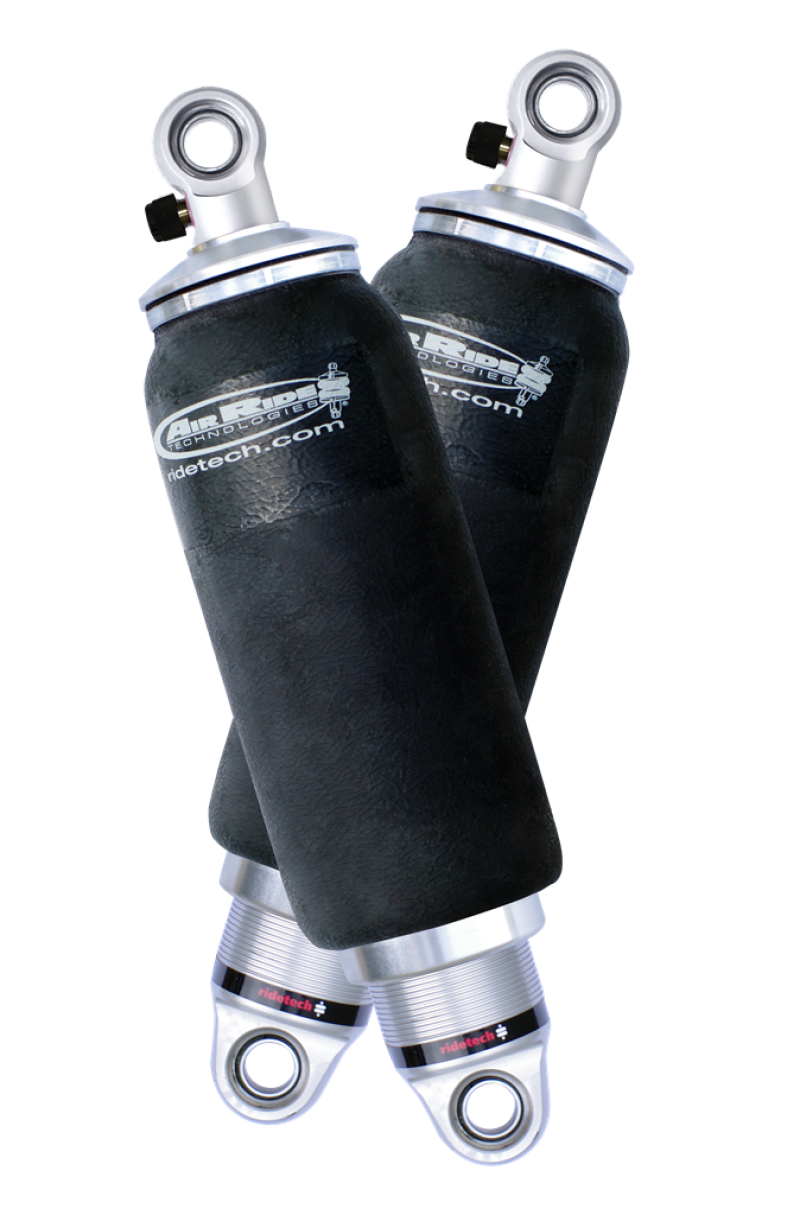

Ridetech 21170801 HQ 8000 Series ShockWave 6.9" Stroke Eye/Eye Universal Pair

Vehicle Fitment

• Universal - Solid Rear Axle Applications
• Recommended for solid rear axles where axle weight is under 2,000 lbs
• NOT recommended for independent front suspension (IFS) installations - insufficient load capacity for IFS use
• Suitable for street rods, hot rods, custom builds, and classic vehicles using a solid rear axle

Fitment Notes

• Eye/Eye mounting - upper and lower mounts are both 1.7" eyelet bearings; measure center eye to center eye for installed dimensions
• Replaces both the coil spring and shock absorber as a single integrated unit - installs similarly to a coil-over
• An air compressor and management/control system are required to operate the air springs and are sold separately
• Sold as a pair (left and right)
• For the 7000 Series (smaller diameter, lighter load capacity) equivalent with identical dimensions, use part #21170701
• For the TQ Series (triple-adjustable) version with identical dimensions, use part #24370801

Features

• ShockWave integrates a 5" diameter Firestone rolling sleeve air spring around the HQ Series shock absorber into a single compact unit - mounts like a coil-over, eliminates separate spring and shock hardware
• 8000 Series uses a 5" diameter air spring with a straight-piston lower profile delivering a linear spring rate throughout travel - appropriate for the rear of most solid axle vehicles
• HQ Series shock features an impact-forged aluminum monotube body with single rebound adjustment - 24-click knob allows precise damping tuning from soft to firm independently of ride height
• Adjustable ride height - inflate or deflate via the management system to raise and lower the vehicle; 50% inflation height is 16.75", 60% is 17.50"
• Impact-forged aluminum housing provides leak-free operation and superior oil control over cast alternatives
• 1,000,001-mile warranty on the HQ Series shock

Specifications

• Series: 8000 HQ (single rebound-adjustable)
• Air Spring: Firestone 5" diameter rolling sleeve
• Load Capacity: 1,200 lbs @ 100 psi
• Shock Travel: 6.9"
• ShockWave Travel: 6.3"
• Compressed Length: 13.75" (center eye to center eye)
• Extended Length: 20.00" (center eye to center eye)
• 50% Inflation Height: 16.75"
• 60% Inflation Height: 17.50"
• Mounting Style: Eye/Eye - 1.7" eyelet bearings, top and bottom
• Rebound Adjustment: 24-position single knob
• Shock Body: Impact-forged aluminum monotube
• Shock Warranty: 1,000,001 miles
• Quantity: Sold as a pair

Included Components

• 2x HQ 8000 Series ShockWave Units (left and right)

Product Description

The Ridetech 21170801 is a pair of HQ Series 8000 ShockWave units configured with a 6.9" shock stroke, Eye/Eye 1.7" eyelet mounts, and a Firestone 5" diameter rolling sleeve air spring - providing a compressed length of 13.75" and an extended length of 20.00" measured center eye to center eye. The ShockWave is Ridetech's most compact air suspension solution: it integrates the air spring and shock absorber into a single coil-over-style unit, eliminating the need for separate spring brackets or spring perches and simplifying installation considerably.

The 8000 Series is the larger-diameter sibling to the 7000 Series, offering a higher load capacity of 1,200 lbs at 100 psi with a linear spring rate from its straight-piston lower profile - making it the appropriate choice for solid rear axles where the axle assembly weight falls below 2,000 lbs. The HQ shock absorber inside provides 24-position single rebound adjustment, letting the builder dial in ride quality and handling response independently from ride height. An air compressor and management system are required and sold separately. The HQ Series shock carries Ridetech's 1,000,001-mile warranty.
