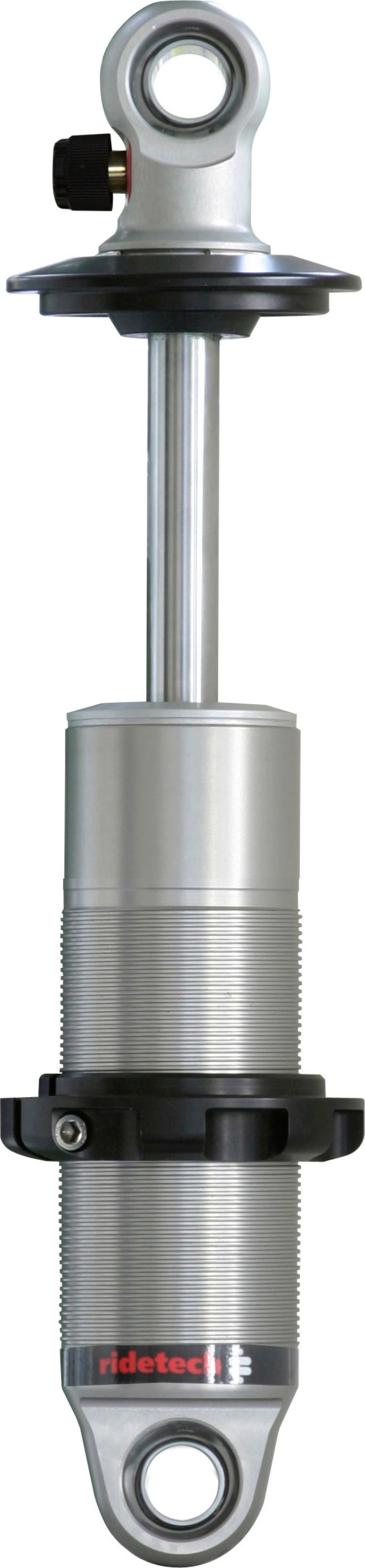

Ridetech 24139901 HQ Series Coil-Over Shock 3.6in Travel Universal Eyelet

Vehicle Fitment

• Universal fit - designed for custom coil-over builds and applications using a 2.5" ID spring, not tied to a specific vehicle

Fitment Notes

• Sold individually (each); does not include a coil spring - pair with Ridetech's recommended 8" free length, 2.5" ID spring (sold separately)
• Eyelet mount, top and bottom

Features

• Monotube, gas-pressurized design for fade-free performance
• Single adjustable rebound valving to dial in ride feel
• Impact-forged aluminum body with clear anodized finish for corrosion resistance
• Spherical bearing/Kevlar-lined bushings for smooth, noise-free operation
• Unique pinch-clamp height adjuster with fine threading for precise adjustment
• CNC-machined billet hardware included

Specifications

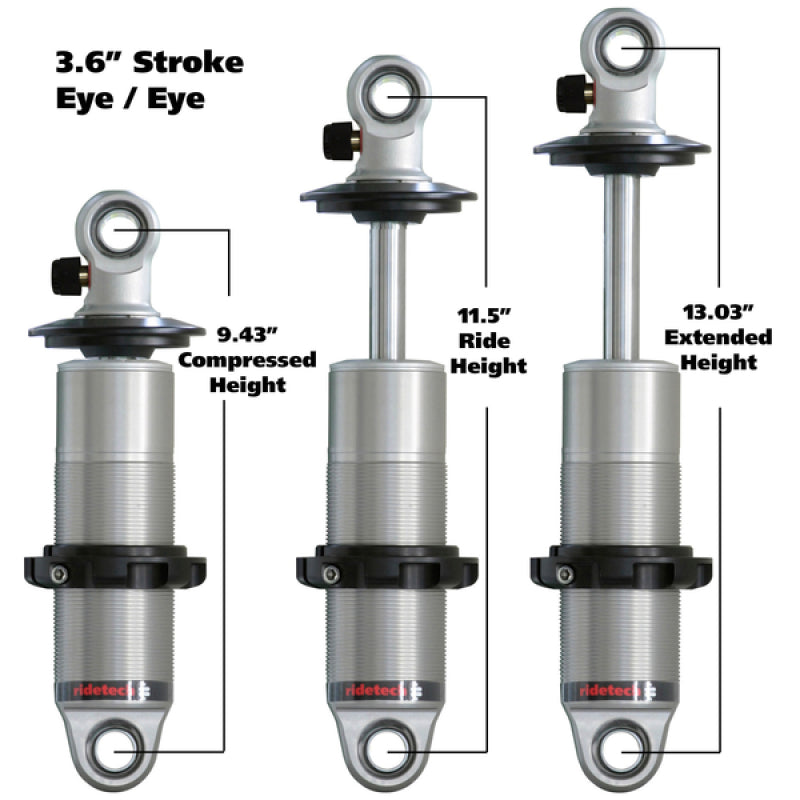

• Stroke/travel: 3.6"
• Compressed length: 9.43"
• Extended length: 13.03"
• Mount type: Eyelet, top and bottom
• Recommended spring: 8" free length, 2.5" ID
• Body material: Aluminum, clear anodized

Included Components

• 1x HQ Series Coil-Over Shock (spring not included)
• CNC-Machined Billet Hardware

Product Description

The Ridetech 24139901 is a 3.6" stroke, eyelet-mount coil-over shock built as a universal component for custom suspension builds. Its monotube, gas-pressurized design delivers consistent, fade-free damping, while single-adjustable rebound valving lets you dial in ride quality to taste.

Kevlar-lined spherical bearings keep the shock quiet under load, and the pinch-clamp height adjuster makes fine ride-height tuning straightforward. This is the bare shock only - pair it with a 2.5" ID coil spring (Ridetech's recommended 8" free length works well) to complete a coil-over setup.
