Ridetech 19003002 AIRoverLeaf 3000lb Side Frame Kit for 2-2.5in Leaf Springs

Vehicle Fitment

• Universal fit - for any vehicle with a leaf spring rear suspension using a 2"-2.5" wide leaf spring

Fitment Notes

• Uses a side-frame upper mount configuration - verify your frame style before ordering, as Ridetech also offers under-frame mount versions
• Not vehicle-specific; mounting hardware is pre-engineered to maintain ground clearance, driveline angles, tire clearance, and load capacity across a range of applications

Features

• 3,000 lb. load capacity air spring
• Bolt-on installation with little to no vehicle modification required
• Lowers ride height by removing one or two leaf springs, then restores load capacity, ride height, and spring rate via air pressure
• Improves handling and ride quality over a stock leaf spring setup
• Pre-engineered mounting hardware maintains proper ground clearance and driveline angles

Specifications

• Location: Rear
• Load capacity: 3,000 lb.
• Leaf spring width: 2"-2.5"
• Upper mount type: Side frame

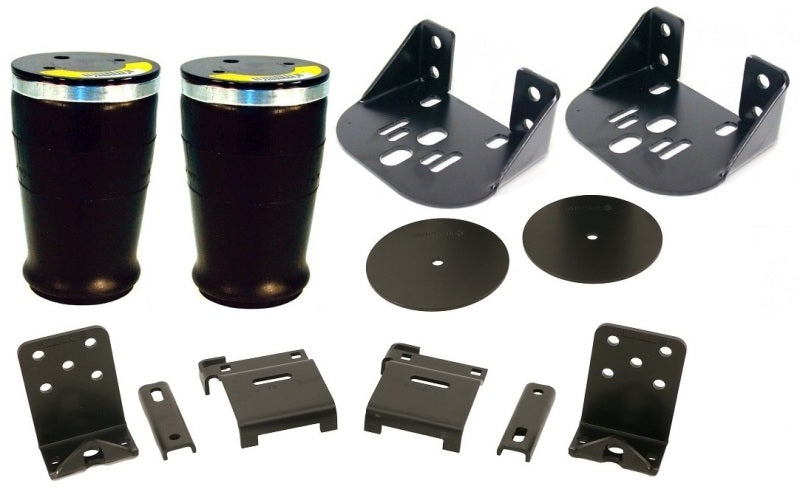

Included Components

• 2x Tapered Sleeve Air Springs
• 2x 2.5" Leaf Spring Brackets
• 2x Air Spring Roll Plates
• 2x Bolt-On Upper Brackets
• Mounting Hardware

Product Description

The Ridetech 19003002 AIRoverLeaf kit is a straightforward, bolt-on way to lower a leaf-spring-equipped vehicle and improve ride quality without re-engineering the rear suspension. Removing one or two leaf springs drops the ride height, and the included 3,000 lb. air spring is then inflated to restore load capacity, ride height, and spring rate.

It's built for 2"-2.5" wide leaf springs using a side-frame upper mount, with pre-engineered brackets that keep ground clearance, driveline angles, and tire clearance in check. As Ridetech's simplest and most cost-effective air ride system, it's a common choice for owners wanting a lowered stance and better handling without a full coil-over conversion.
