Ridetech 11397299 V8 Wishbone Brace Kit for 1982-2003 S10 2WD

Vehicle Fitment

• 1982-2003 Chevrolet S10, 2WD, with Ridetech Wishbone rear suspension
• 1982-1990 GMC S15, 2WD, with Ridetech Wishbone rear suspension
• 1991-2003 GMC Sonoma, 2WD, with Ridetech Wishbone rear suspension
• 1996-2000 Isuzu Hombre, 2WD, with Ridetech Wishbone rear suspension

Fitment Notes

• Designed specifically for trucks equipped with the Ridetech Wishbone rear suspension system.
• Intended for high-horsepower and V8-swapped applications where additional rear suspension and gas-tank crossmember support is required.
• The existing Ridetech Wishbone must have provisions for the brace bars, including two mounting points on the front Wishbone mount and two mounting points on the front side of the shock crossmember.
• The front Wishbone pivot bolt must be vertical; applications with a horizontal pivot bolt are not compatible.
• Applies to 2WD configurations only; 4WD applications are not supported.
• The brace kit is an accessory to the Ridetech Wishbone system and is not a standalone rear suspension conversion.

Features

• V8 Wishbone brace upgrade kit
• Provides additional rear suspension support for high-horsepower applications
• Designed to reinforce the OEM gas-tank crossmember area
• Includes dual adjustable brace bars
• Uses heim-joint ends for adjustable brace attachment
• Includes an EVAP canister relocation bracket
• Designed specifically around Ridetech Wishbone suspension geometry
• Helps address OEM gas-tank crossmember strength concerns on V8-swapped trucks
• Compatible with Ridetech air-suspension and coil-over Wishbone configurations
• Designed as a bolt-on support system when the required Wishbone mounting provisions are present

Specifications

• Brand: Ridetech
• Part Number: 11397299
• Product Type: Wishbone Brace Kit
• Application: V8 Wishbone upgrade
• Suspension Position: Rear
• Suspension Type: Air Suspension or Coil-Over Suspension
• Drivetrain: 2WD
• Primary Application: 1982-2003 GM S10/S15/Sonoma platform
• Brace Type: Adjustable brace bars
• Installation Requirement: Compatible Ridetech Wishbone system with brace provisions

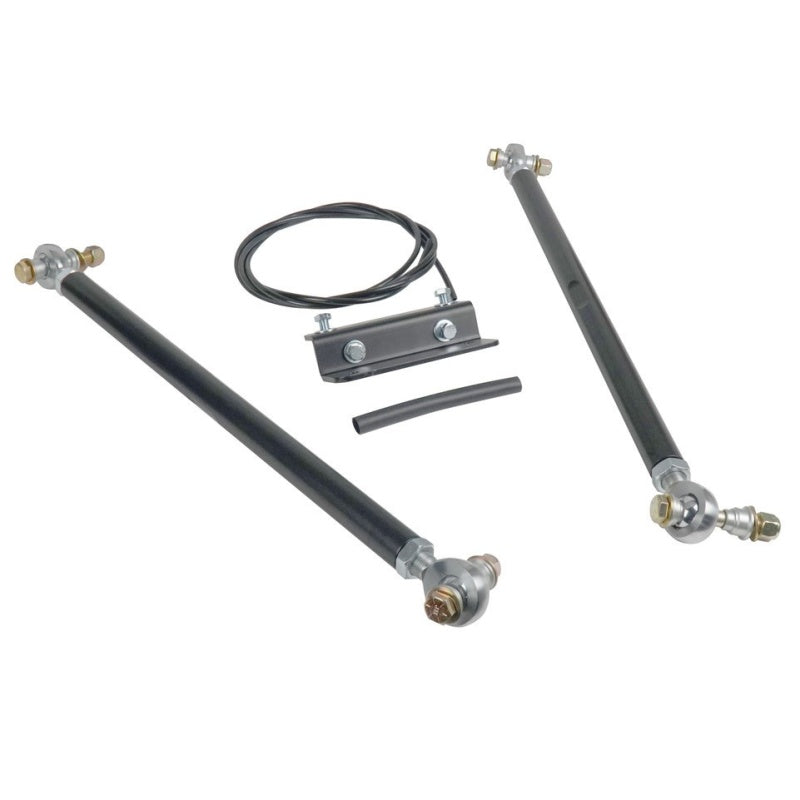

Included Components

• 2x Adjustable Brace Bars
• 4x Heim-Joint Ends
• 1x EVAP Canister Relocation Bracket

Product Description

The Ridetech 11397299 V8 Wishbone Brace Kit is designed to provide additional rear suspension support for 1982-2003 Chevrolet S10, 1982-1990 GMC S15, 1991-2003 GMC Sonoma, and 1996-2000 Isuzu Hombre 2WD trucks equipped with the Ridetech Wishbone rear suspension system. Ridetech specifically developed this brace kit for higher-horsepower and V8-swapped applications where additional support around the OEM gas-tank crossmember is desirable.

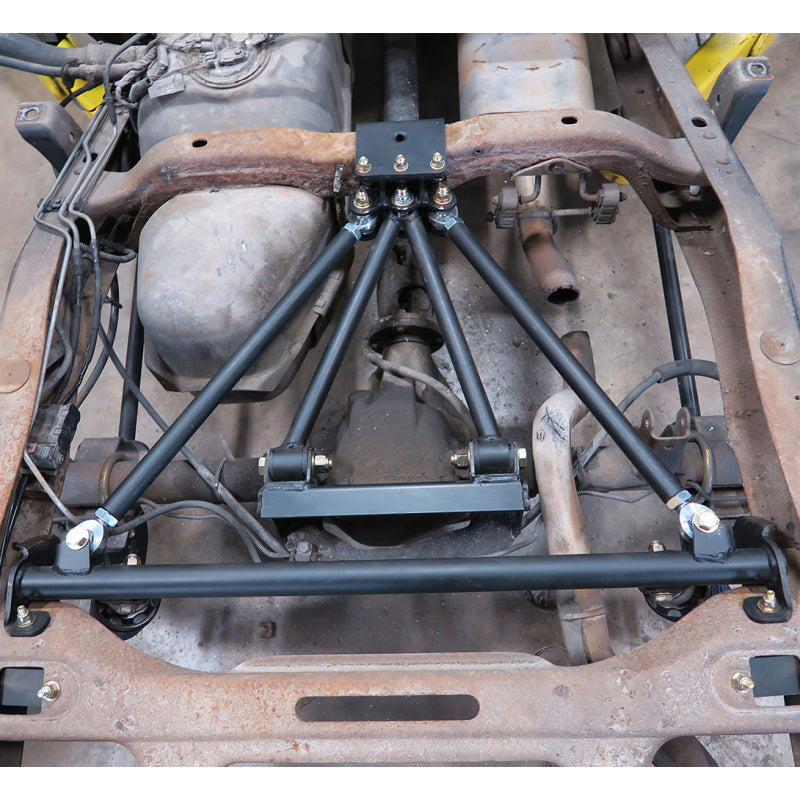

The kit uses two adjustable brace bars with heim-joint ends to reinforce the rear suspension structure. It also includes an EVAP canister relocation bracket to accommodate the installation. The brace system is designed to work with Ridetech Wishbone configurations used with CoilOver or ShockWave air-suspension systems.

Compatibility depends on the existing Ridetech Wishbone hardware. The Wishbone must have the dedicated mounting provisions for the brace bars, and the front Wishbone pivot bolt must be positioned vertically. A Wishbone system with a horizontal pivot bolt does not support this brace kit. The 11397299 is therefore an upgrade component for an existing compatible Ridetech Wishbone system rather than a standalone suspension kit.
