Ridetech 11172401 Front HQ Shockwaves for 1970-1981 Camaro/Firebird

Vehicle Fitment

• 1970-1981 Chevrolet Camaro - Front - RWD - 2nd Generation F-Body
• 1970-1981 Pontiac Firebird - Front - RWD - 2nd Generation F-Body

Fitment Notes

• Designed for use with stock lower control arms.
• Replaces the conventional front coil spring and shock with an integrated ShockWave air-suspension unit.
• Street rods using a Camaro subframe should measure shock length before ordering.
• Requires a compatible air compressor and air-management system, sold separately.
• Designed specifically for 1970-1981 GM F-Body applications listed above.

Features

• HQ Series single-adjustable ShockWave air suspension system.
• Front-position air spring and shock assembly.
• Adjustable rebound shock valving for suspension tuning.
• Impact-forged aluminum monotube shock construction.
• Large 1.834-inch shock piston for controlled damping performance.
• Heavy-duty 5/8-inch shock shaft.
• 6.5-inch double-convoluted air spring.
• Adjustable ride height through air pressure.
• 2.75-inch stud-style upper shock mount.

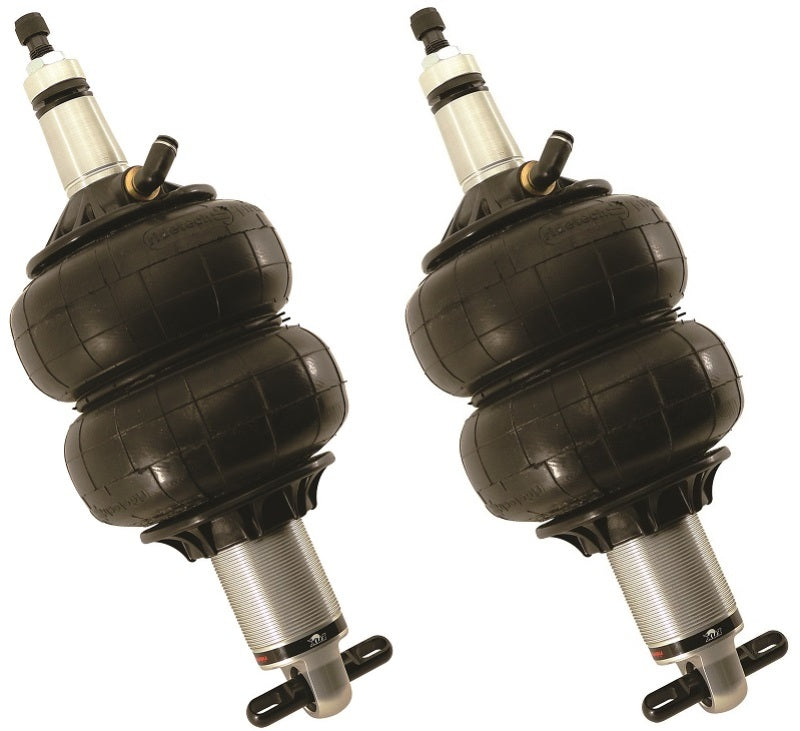

• Bar-pin lower shock mount for stock lower-control-arm installation.
• Polyurethane bushing material for the mounting assembly.

Specifications

• Brand: Ridetech
• Part Number: 11172401
• Product Type: HQ Series ShockWave Air Suspension
• Position: Front
• Adjustment: Single Adjustable - Rebound
• Shock Design: Monotube
• Shock Travel: 2.6 inches
• Compressed Length: 10.3 inches
• Ride Height: 11.75 inches
• Extended Length: 12.6 inches
• Upper Mount: 2.75-inch Stud
• Air Spring: 6.5-inch Double Convoluted
• Lower Mount: Bar Pin
• Bushing Material: Polyurethane

Included Components

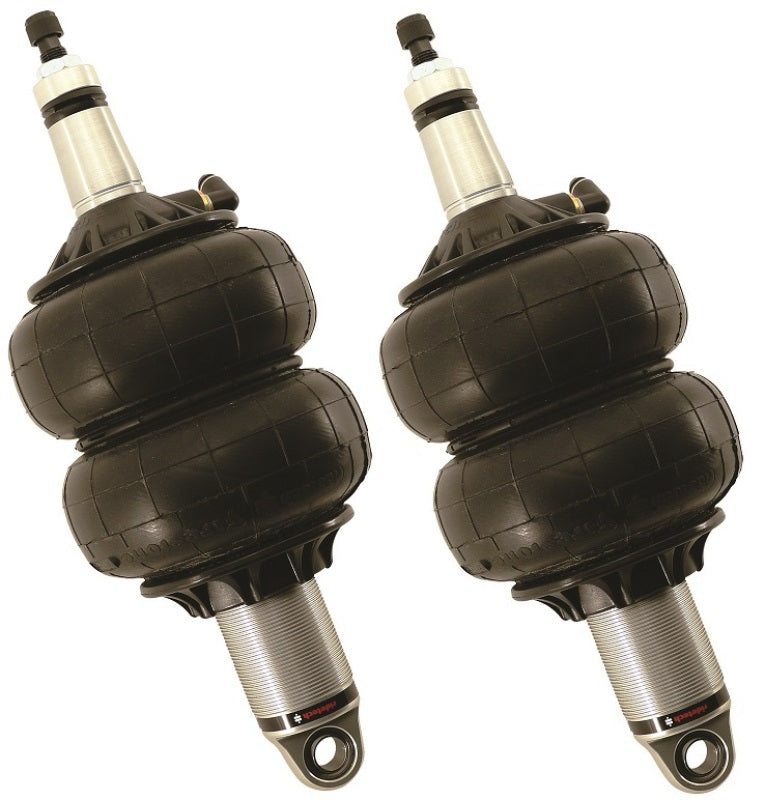

• 2x Ridetech HQ Series Front ShockWave Air Suspension Units
• 2x Integrated 6.5-inch Double-Convoluted Air Springs
• 2x Front ShockWave mounting assemblies
• 1x Set of air-line fittings

Product Description

The Ridetech 11172401 Front HQ ShockWave Kit is designed for 1970-1981 Chevrolet Camaro and Pontiac Firebird models with stock lower control arms. Combining an adjustable HQ monotube shock with a double-convoluted air spring, the ShockWave replaces the conventional front coil spring and shock with a compact, height-adjustable air-suspension assembly.

The HQ Series provides single-adjustable rebound damping, allowing suspension response to be tuned for street driving and performance applications. The system uses impact-forged aluminum shock construction, a heavy-duty 5/8-inch shaft, 2.6 inches of shock travel, and a 6.5-inch air spring. An air compressor and compatible air-management system are required separately for operation.
