Ridetech 11267197 Double Adj Rear Bolt-On 4-Link System for 1968-1974 Chevy Nova

Vehicle Fitment

• 1969-1974 Chevrolet Nova (1968 Chevy II)
• 1968-1971 Pontiac Acadian
• 1971-1974 Pontiac Ventura
• 1973-1974 Oldsmobile Omega
• 1973-1974 Buick Apollo

Fitment Notes

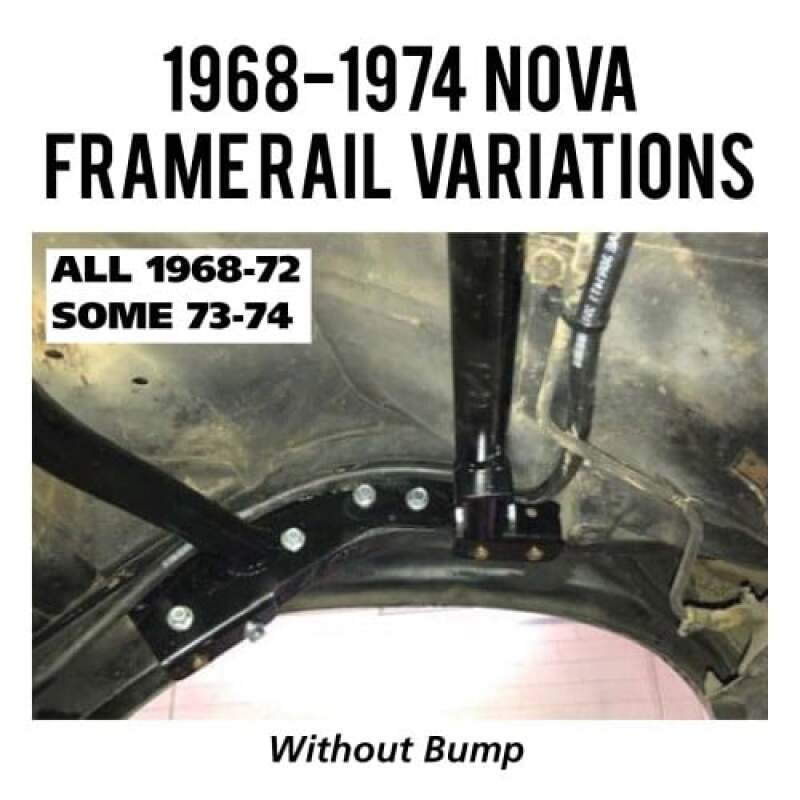

• Some 1973-1974 X-Body cars use a different frame rail shape and require kit #11267157 instead - check instruction manual to confirm frame type before ordering
• Double Adjustable bars allow length changes on both upper and lower bars without removing end nuts; the Standard version (11267199) has fixed lowers
• Coil-overs or ShockWave air springs are required and sold separately

Features

• Replaces OEM leaf springs with a fully adjustable 4-Link rear suspension
• Adjustable stance, roughly 1"-3" lower than stock
• Eliminates axle wrap and wheel hop under hard acceleration
• Adjustable anti-squat geometry for street or corner-focused tuning
• Optimized roll center height improves cornering confidence
• Patented R-Joint rod ends for low-friction, quiet articulation
• Bolt-on installation - no floor pan cutting or frame welding required
• Durable satin black powder coat finish

Specifications

• Location: Rear
• Bar adjustment: Double adjustable (upper and lower)
• Ride height change: Approx. 1"-3" lower than stock
• Compatible with mini-tub applications
• Compatible with Ridetech subframe connectors for added chassis strength

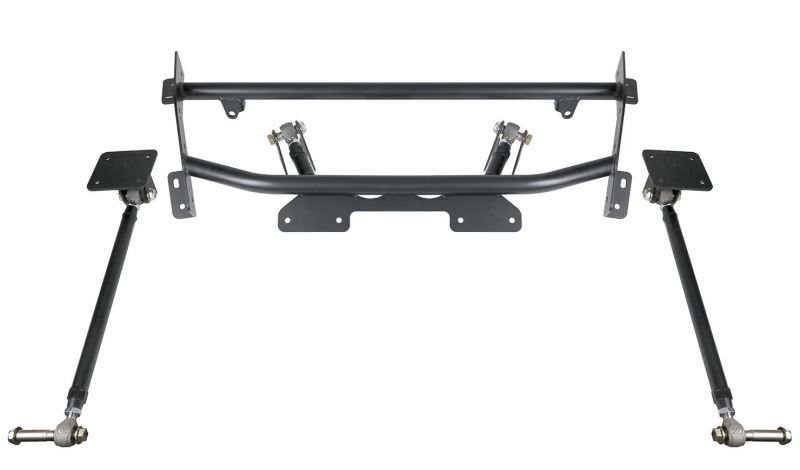

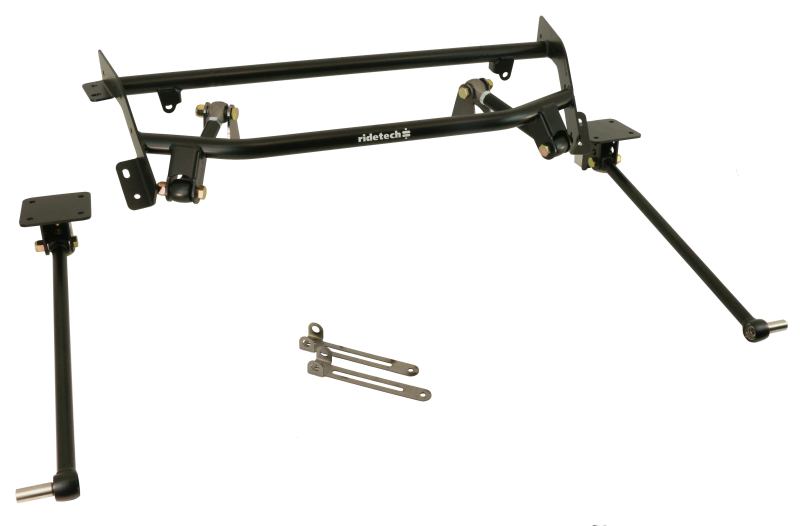

Included Components

• 2x Double Adjustable Upper Bars
• 2x Double Adjustable Lower Bars
• 1x Tubular Upper Cradle
• 2x Bolt-On Axle Brackets
• 8x R-Joint Rod Ends
• 1x Complete Mounting Hardware Kit

Product Description

The Ridetech 11267197 Bolt-On 4-Link replaces the factory leaf-spring rear suspension on 1968-1974 Nova-platform cars with a fully adjustable 4-link setup. The double adjustable bars let you fine-tune both upper and lower bar length for pinion angle and instant center without pulling bushings, making it easier to dial in handling once the car's back on the ground.

Installation is bolt-on at the factory leaf spring mounts and a welded cradle bridges the frame rails for the upper bar and shock mounts - no floor pan cutting required. It pairs with Ridetech coil-overs or ShockWave air springs (sold separately) and is a common upgrade for owners chasing better traction and cornering stability out of their Nova, Acadian, Ventura, Omega, or Apollo.
