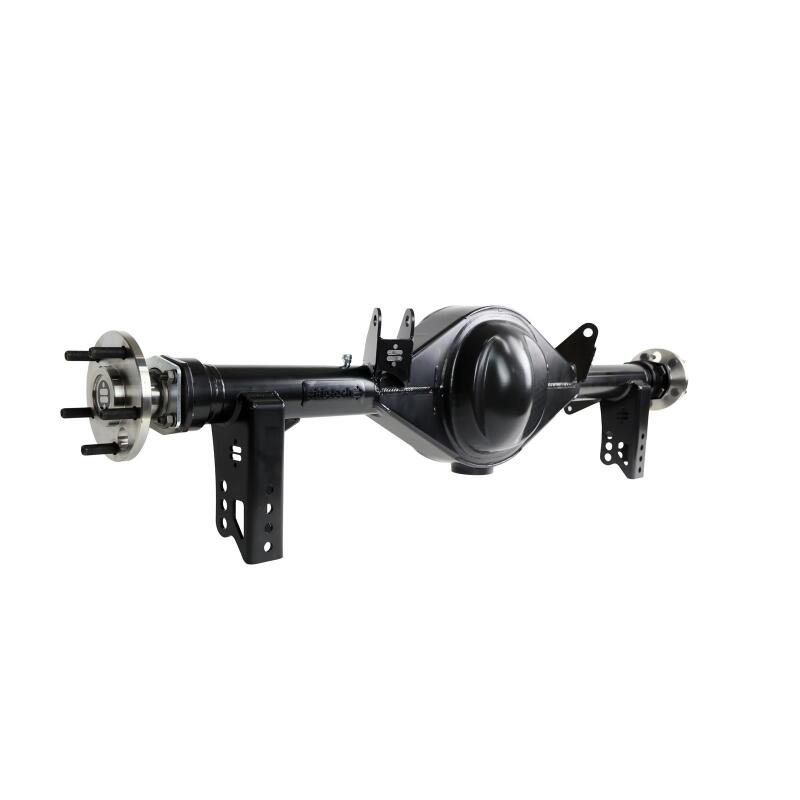

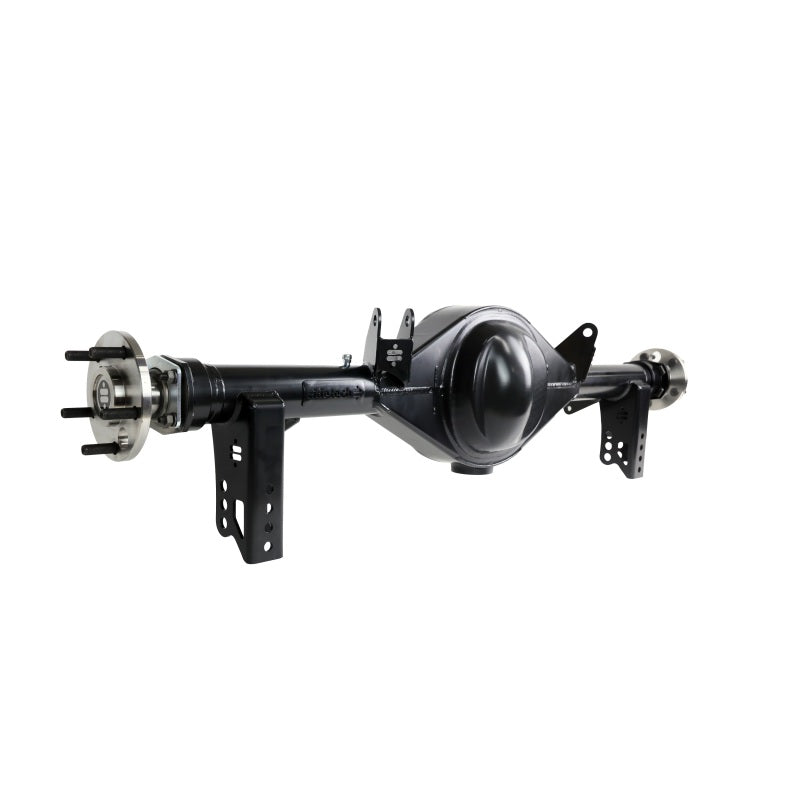

Ridetech 11169682 Ford 9in Rear Axle Housing for 1967-1969 Camaro/Firebird

Vehicle Fitment

• 1967-1969 Chevrolet Camaro - Rear - RWD - For use with Ridetech 4-Link
• 1967-1969 Pontiac Firebird - Rear - RWD - For use with Ridetech 4-Link
• 1968-1974 Chevrolet Nova / Chevy II - Rear - RWD - For use with Ridetech 4-Link
• 1968-1971 Pontiac Acadian - Rear - RWD - For use with Ridetech 4-Link
• 1971-1974 Pontiac Ventura - Rear - RWD - For use with Ridetech 4-Link
• 1973-1974 Buick Apollo - Rear - RWD - For use with Ridetech 4-Link
• 1973-1974 Oldsmobile Omega - Rear - RWD - For use with Ridetech 4-Link

Fitment Notes

• Designed for Ridetech's newer-style Bolt-On 4-Link systems with upper bars angled toward the vehicle centerline.
• 4-Link and sway-bar mounting brackets are integrated into the axle housing.
• Stock-width configuration measures 60.25 inches flange-to-flange.
• Does not include the third member, ring and pinion, or brake assemblies.
• Verify compatibility with the specific Ridetech 4-Link system before installation.

Features

• Ford 9-inch rear axle housing and axle package.
• Satin-black powder-coated finish.
• 60.25-inch stock flange-to-flange width.
• 3-inch diameter tubing with 1/4-inch wall thickness.

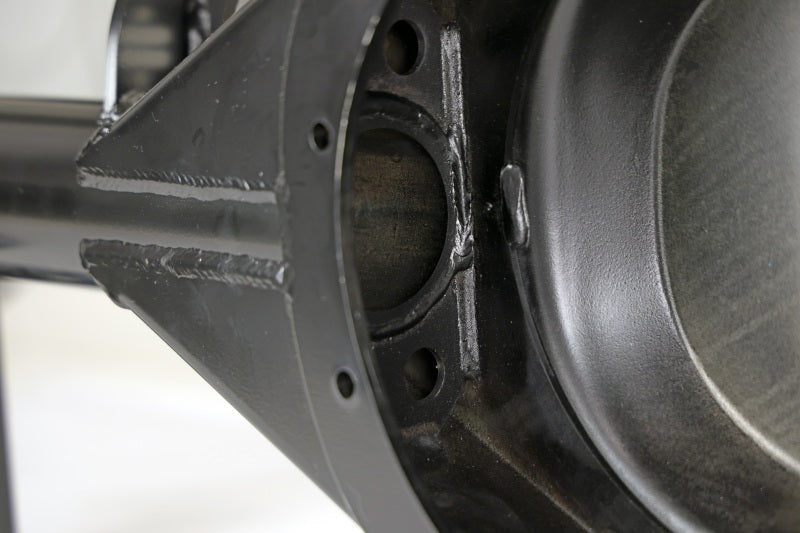

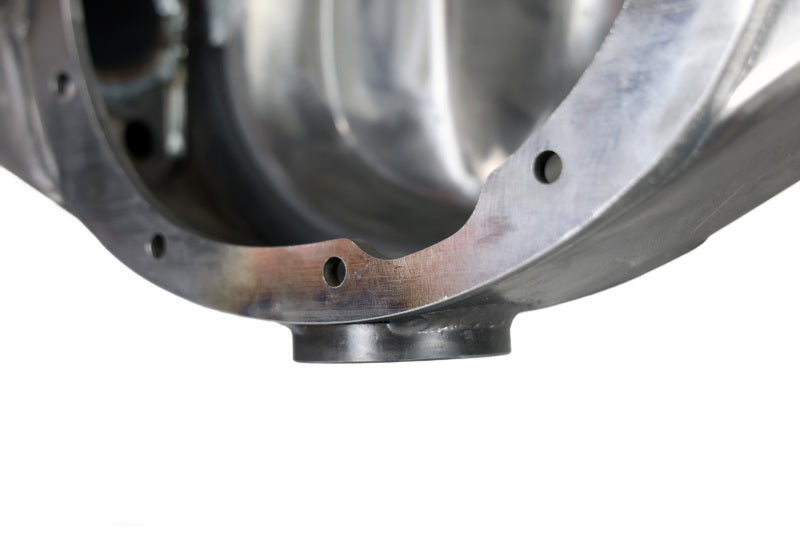

• Webbed center section with internal gusseting for added strength.

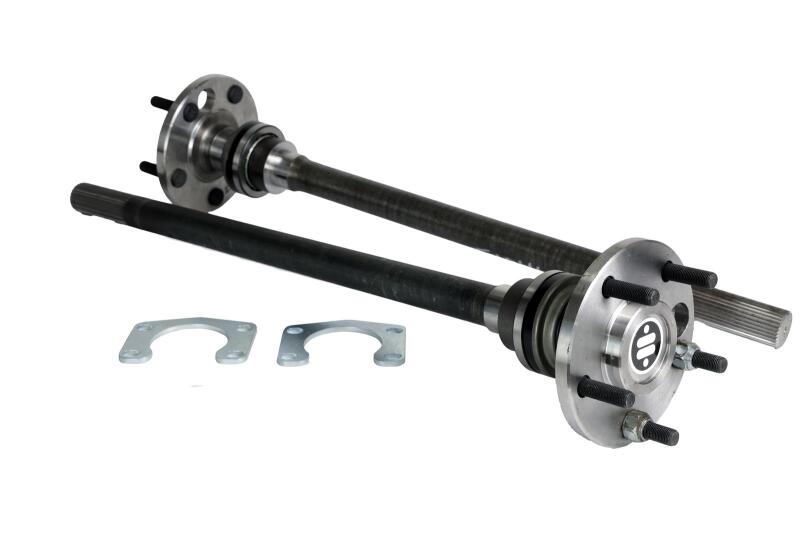

• 31-spline heat-treated 1541H custom-alloy axles.
• Timken SET20 tapered axle bearings.
• 5 x 4.75-inch wheel bolt pattern.
• Billet steel big-bearing Torino-style flanges.

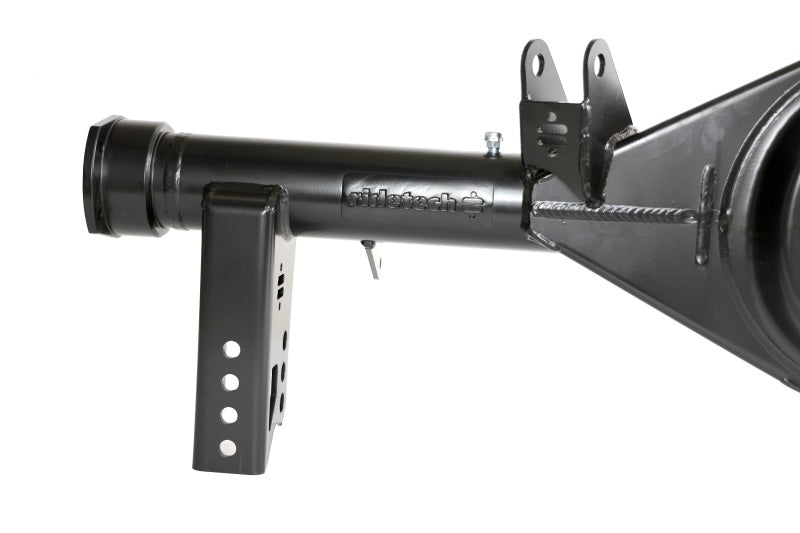

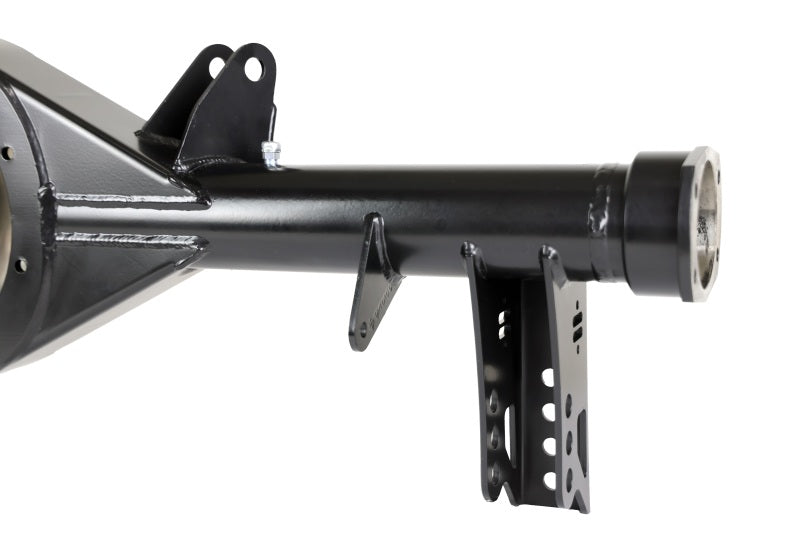

• Integrated Ridetech 4-Link and sway-bar mounting brackets.
• Pre-installed third-member studs, drain plug, and jack pad.

Specifications

• Brand: Ridetech
• Part Number: 11169682
• Position: Rear
• Axle Type: Ford 9-inch
• Overall Width: 60.25 inches flange-to-flange
• Housing Tubes: 3-inch diameter, 1/4-inch wall
• Axle Spline Count: 31-spline
• Axle Material: Heat-treated 1541H alloy steel
• Wheel Bolt Pattern: 5 x 4.75 inches
• Wheel Stud Thread: 1/2-20
• Finish: Satin-black powder coat
• Bearings: Timken SET20

Included Components

• 1x Ford 9-inch rear axle housing, satin-black powder coated
• 2x 31-spline 1541H rear axles
• 2x Timken SET20 axle bearings
• 1x Set of integrated 4-Link and sway-bar mounting brackets
• 1x Set of Grade 8 housing installation hardware

Product Description

The Ridetech 11169682 is a stock-width Ford 9-inch rear axle housing and axle package engineered for classic GM F-Body and X-Body applications using compatible Ridetech 4-Link suspension systems. It features a strong webbed center section, internally gusseted construction, 3-inch diameter 1/4-inch-wall tubes, and billet steel big-bearing Torino-style flanges for a durable rear-end foundation.

The package includes heat-treated 31-spline 1541H alloy axles with Timken SET20 bearings and a 5 x 4.75-inch wheel bolt pattern. The housing arrives satin-black powder coated with the Ridetech 4-Link and sway-bar brackets already integrated, along with pre-installed third-member studs, a drain plug, jack pad, and Grade 8 hardware. This assembly is intended for Ridetech's newer-style 4-Link systems and does not include a third member, ring and pinion, or brakes.
