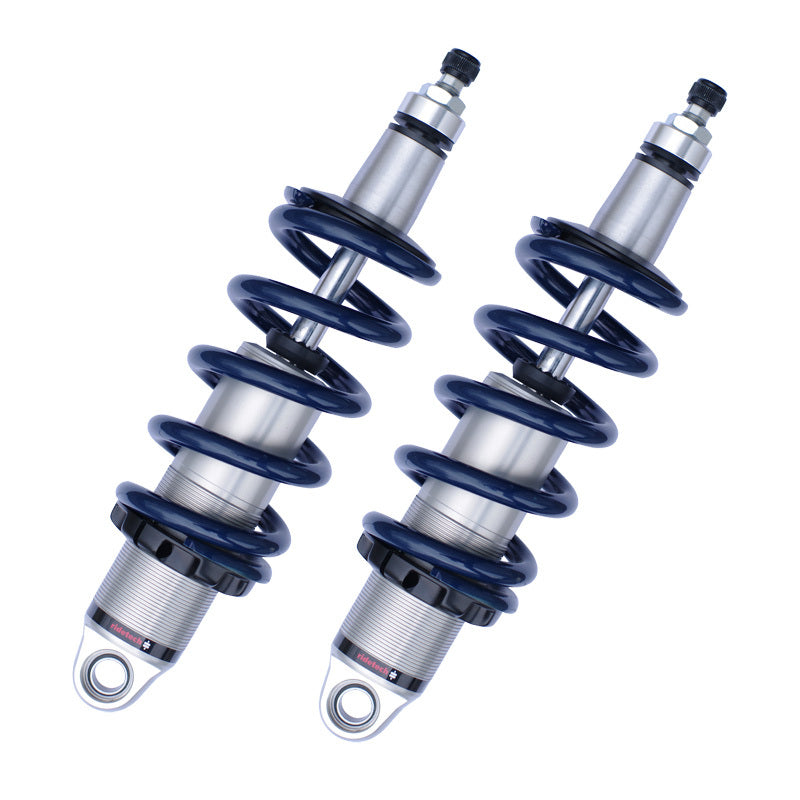

Ridetech 12313510 Front HQ Coil-Overs for 1965-1979 Ford F-100/F-150 2WD

Vehicle Fitment

• 1965-1979 Ford F-100, all factory engine configurations, 2WD, with Ridetech IFS/front suspension
• 1975-1979 Ford F-150, all factory engine configurations, 2WD, with Ridetech IFS/front suspension

Fitment Notes

• Designed specifically for use with the Ridetech front suspension/IFS system.
• Not a direct replacement for the factory front shock and coil-spring arrangement without the required Ridetech suspension system.
• F-150 coverage begins in 1975; 1965-1974 F-150 models are not applicable.
• 2WD applications only; 4WD/Four-Wheel-Drive configurations are excluded.
• Factory suspension configuration must be verified before installation.
• Ride height and spring preload must be adjusted after installation, followed by suspension clearance and alignment checks.

Features

• HQ Series front coil-over suspension system
• 24-position rebound adjustment for suspension tuning
• Large 1.834-inch shock pistons
• Heavy-duty 5/8-inch shock shafts
• Impact-forged shock bodies
• 10-inch Hyperco coil springs matched to the application
• 750 lb/in spring rate
• Adjustable coil-over ride height
• Delrin spring washers reduce friction during spring adjustment
• Designed to improve handling, ride quality, and vehicle stance
• Includes application-specific mounting components

Specifications

• Brand: Ridetech
• Part Number: 12313510
• Series: HQ
• Product Type: Front Coil-Over Shock and Spring Assembly
• Suspension Position: Front

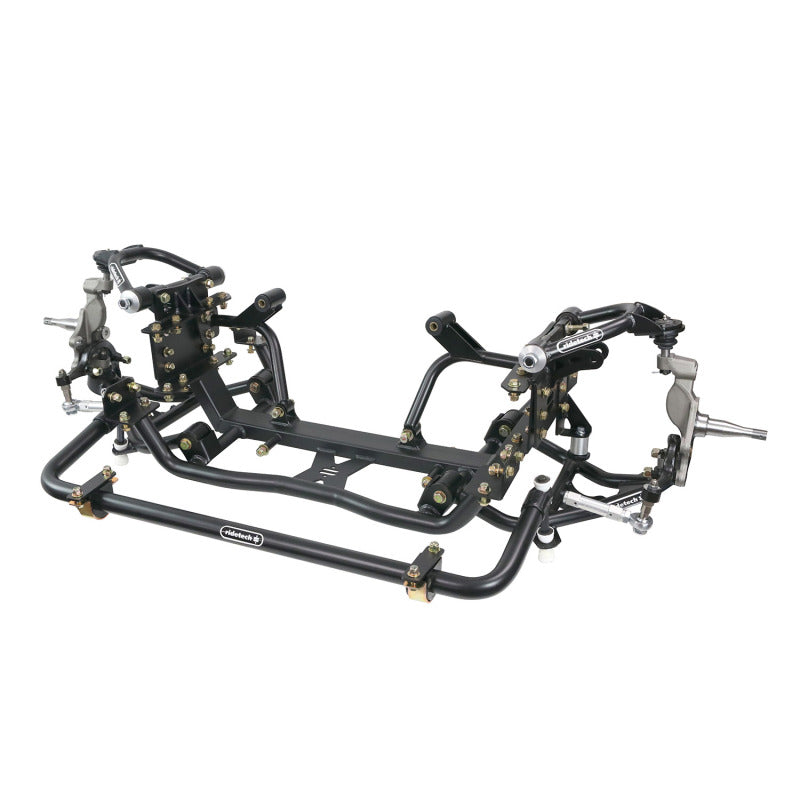

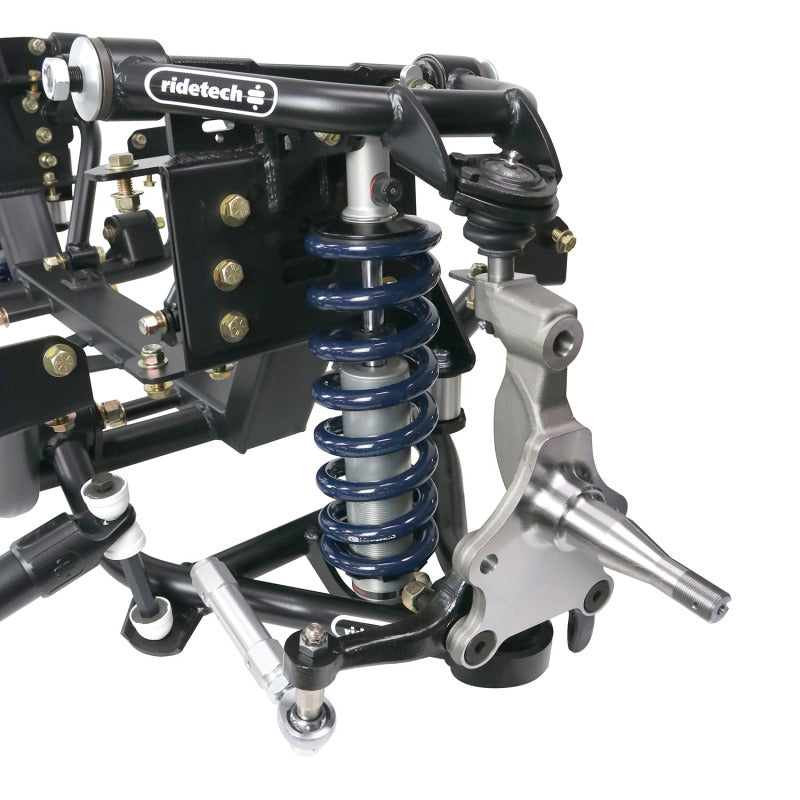

• Application: Ridetech IFS/front suspension
• Shock Stroke: 4.1 inches
• Shock Piston Diameter: 1.834 inches
• Shock Shaft Diameter: 5/8 inch
• Spring Length: 10 inches
• Spring Rate: 750 lb/in
• Rebound Adjustment: 24 positions
• Compressed Length: 11.13 inches
• Ride-Height Length: 13.50 inches
• Extended Length: 15.23 inches
• Upper Mount: Eyelet
• Lower Mount: Eyelet
• Drivetrain: 2WD
• Quantity: Pair

Included Components

• 2x HQ Series Coil-Over Shocks
• 2x 10-inch 750 lb/in Hyperco Coil Springs
• 2x Upper Coil-Spring Retaining Plates
• 4x Delrin Spring Washers
• 2x Lower Spring Adjuster Nuts
• 2x Adjuster Nut Locking Screws
• 2x Retaining Rings
• 8x Shock Bearing Spacer Halves

Product Description

The Ridetech 12313510 Front HQ Coil-Overs are designed for 1965-1979 Ford F-100 and 1975-1979 Ford F-150 2WD trucks equipped with the Ridetech front suspension/IFS system. The kit combines application-specific HQ Series coil-over shocks with matched Hyperco springs to provide adjustable ride height and improved suspension performance.

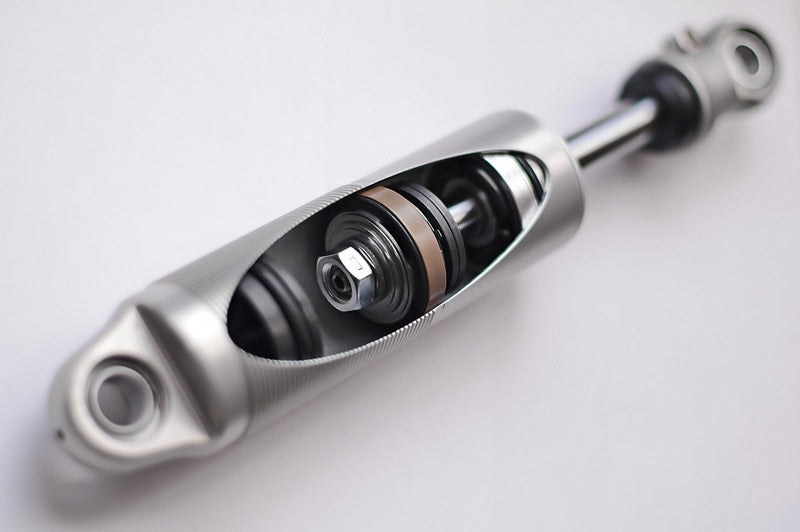

Each shock features a large 1.834-inch piston, heavy-duty 5/8-inch shaft, impact-forged body, and 24-position rebound adjustment. The included 10-inch Hyperco springs have a verified 750 lb/in rate, while the adjustable spring seats allow ride height and spring preload to be tuned after installation. Delrin spring washers help facilitate smooth spring adjustment.

The 12313510 is supplied as a pair and includes the coil springs, spring-retaining hardware, adjuster components, and bearing spacers identified in Ridetech's installation documentation. It is specifically intended for 2WD trucks using the Ridetech front suspension system and should not be applied to factory 4WD suspension configurations. Final ride-height, damping, and suspension-clearance checks should be completed after installation.
