Ridetech 12162401 Front HQ ShockWaves for 1960-1964 Ford Galaxie Air Ride

Vehicle Fitment

• 1960-1964 Ford Galaxie - Front Suspension (All Full-Size Models, Stock Lower Control Arms)
• 1960-1964 Ford Galaxie 500 - Front Suspension (Stock Lower Control Arms)
• 1960-1964 Ford Sunliner - Front Suspension (Stock Lower Control Arms)
• 1960-1964 Ford Starliner - Front Suspension (1960 Model)
• 1960-1964 Ford Country Sedan - Front Suspension
• 1960-1964 Ford Country Squire - Front Suspension
• 1960-1964 Ford Ranch Wagon - Front Suspension
• 1961-1964 Mercury Monterey - Front Suspension
• 1960-1964 Mercury Montclair - Front Suspension
• 1960-1964 Mercury Colony Park - Front Suspension
• 1960-1964 Mercury Commuter - Front Suspension
• 1963-1964 Mercury Marauder - Front Suspension
• 1960-1964 Mercury Park Lane - Front Suspension

Fitment Notes

• Front suspension kit only.
• Designed for vehicles using factory-style lower control arms.
• Requires a compatible air compressor, air tank, valves, and air management system (sold separately).
• Control arms must be reinforced in the trunnion mounting area as specified in the installation instructions.
• Not compatible with vehicles converted to aftermarket front suspension systems unless specifically approved by Ridetech.

Features

• HQ Series ShockWave combines an air spring and monotube shock into one compact assembly.
• 24-position rebound adjustment for precise ride tuning.
• Large 1.834-inch monotube piston improves damping consistency.
• Heavy-duty 5/8-inch hardened shock shaft for increased durability.
• Impact-forged shock body enhances strength and longevity.
• Adjustable ride height while maintaining excellent handling characteristics.
• Direct bolt-in installation using factory-style mounting locations.
• Designed to improve ride quality, handling, and stance.
• Made in the USA.

Specifications

• Brand: Ridetech
• Part Number: 12162401
• Product Type: HQ Series Front ShockWave Air Suspension Kit
• Position: Front
• Shock Type: Monotube
• Adjustment: 24-position rebound adjustable
• Piston Diameter: 1.834 in.
• Shaft Diameter: 5/8 in.
• Air Line Fittings: 1/4 in.
• Mounting: Stud Upper / Bar Pin Lower
• Compatible Suspension: Factory lower control arms

Included Components

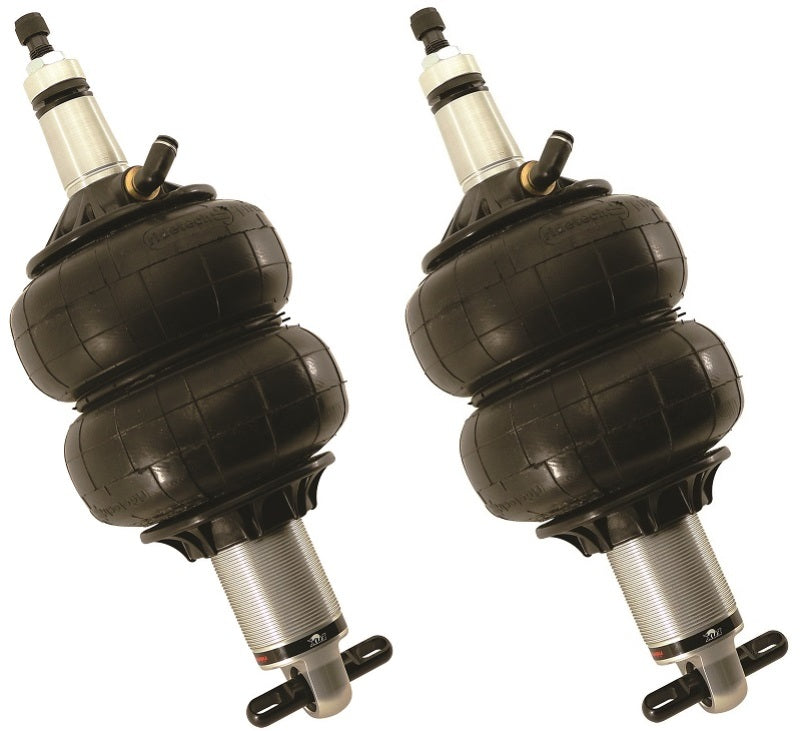

• 2x HQ Series ShockWave air spring/shock assemblies
• 2x Upper stud mounts
• 4x Universal trunnions
• 2x Aluminum stud top bases
• 1x Installation hardware kit
• 1x Installation instructions

Product Description

The Ridetech 12162401 HQ Series Front ShockWave System is engineered to bring modern air suspension performance to 1960-1964 Ford and Mercury full-size vehicles. By combining a high-performance monotube shock absorber with an integrated air spring, the system delivers outstanding ride quality, responsive handling, and fully adjustable ride height while utilizing factory-style front suspension mounting locations.

Featuring 24-position rebound adjustment, a large 1.834-inch piston, and a heavy-duty 5/8-inch shaft, the HQ ShockWaves provide exceptional damping performance for street, touring, and restomod applications. This front suspension kit is designed for use with stock lower control arms and must be paired with a compatible air management system to achieve full air ride functionality.
