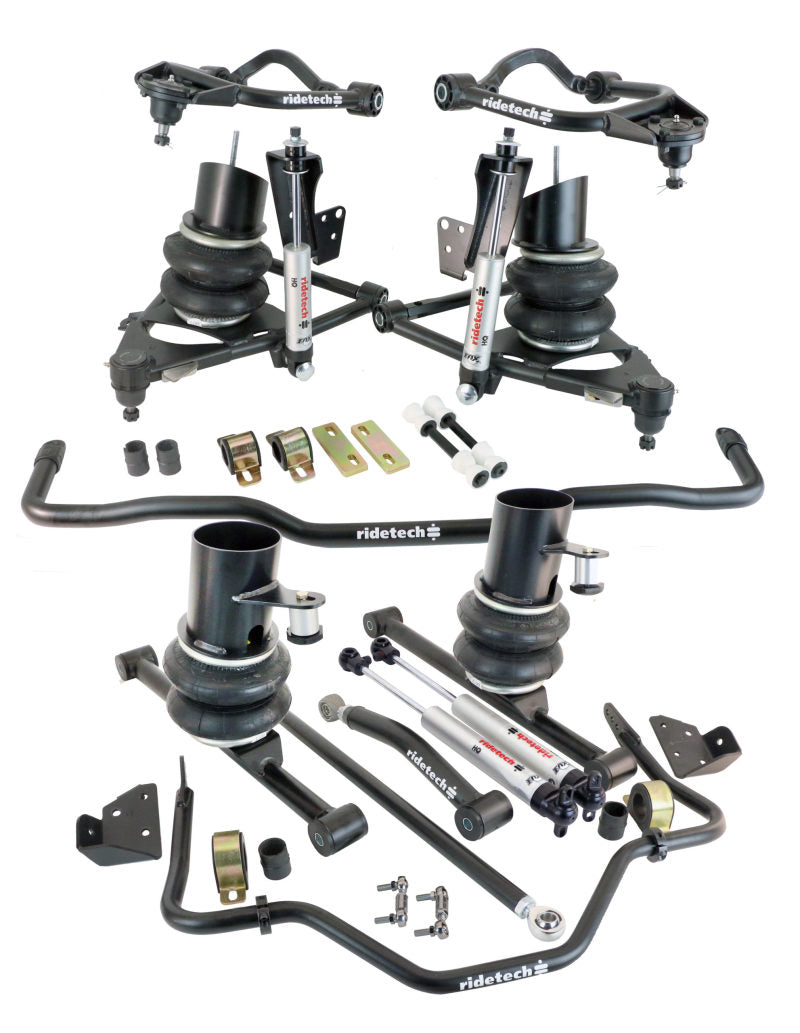

Ridetech 11060297 HQ Air Suspension System for 1959-1964 Chevy B-Body

Vehicle Fitment

• 1959-1964 Chevrolet Bel Air (B-Body, Base, RWD)
• 1959-1964 Chevrolet Biscayne (B-Body, Base, RWD)
• 1959-1961 Chevrolet Brookwood (B-Body, Base, RWD)
• 1959-1960 Chevrolet El Camino (B-Body, Base, RWD)
• 1959-1964 Chevrolet Impala (B-Body, Base, RWD)
• 1964 Chevrolet Impala SS (B-Body, RWD)
• 1959-1961 Chevrolet Kingswood (B-Body, Base, RWD)
• 1959-1961 Chevrolet Nomad (B-Body, Base, RWD)
• 1959-1961 Chevrolet Parkwood (B-Body, Base, RWD)
• 1959-1960 Chevrolet Sedan Delivery (B-Body, Base, RWD)

Fitment Notes

• Complete front and rear air suspension system for compatible Chevrolet B-Body configurations.
• Must use 1959-1964 stock spindles; drop spindles are not compatible.
• Disc-brake brackets must mount to the outside face of the spindle.
• Some vehicles with two rear upper control arms require an additional Ridetech StrongArm, part 11066698.
• Vehicles using stock-style power steering with an assist cylinder require additional bracket 11059121.
• A separate compatible compressor system is required to complete the air-suspension installation.
• Engine-specific fitment is not used for this chassis-based suspension system; listed applications are rear-wheel drive.

Features

• Complete front and rear Ridetech HQ air suspension system.
• Front and rear CoolRide air springs use Firestone air springs with application-specific brackets.

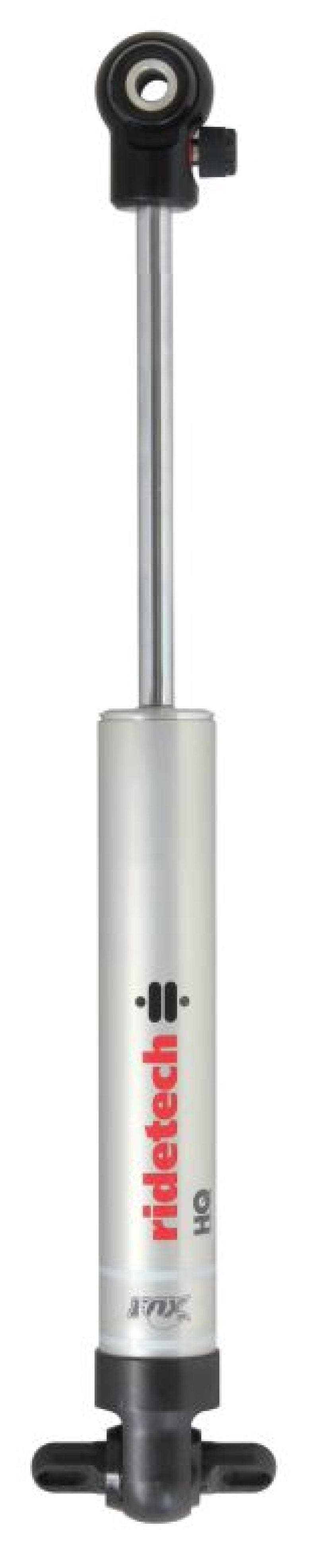

• HQ Series shocks feature lightweight aluminum bodies and monotube construction.
• HQ shocks provide adjustable rebound damping for ride and handling tuning.

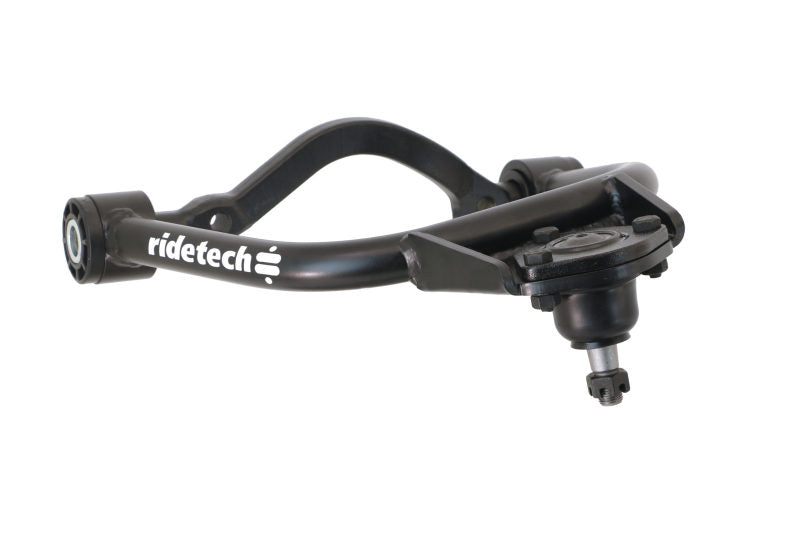

• Front tubular StrongArms provide corrected ball-joint angles and increased caster capability.
• Lower StrongArms use double-shear lower mounts for increased strength.
• Rear StrongArms use R-Joint technology to reduce roll bind and improve suspension movement.
• Adjustable rear Panhard bar helps center the axle at the selected ride height.

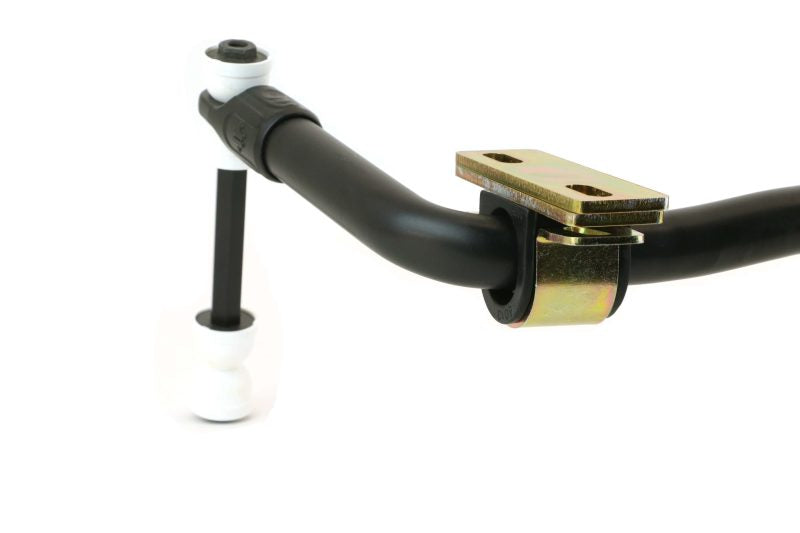

• Front and rear MuscleBar sway bars provide increased roll control.
• Performance end links and Delrin-lined sway-bar bushings improve suspension response.
• Designed to provide an ultra-low stance while maintaining ride quality and handling.

Specifications

• Brand: Ridetech
• Part Number: 11060297
• Product Type: Complete Air Suspension System
• Platform: Chevrolet B-Body
• Application Years: 1959-1964
• Suspension Position: Front and Rear
• Drivetrain: RWD
• Air Spring System: CoolRide
• Air Spring Manufacturer: Firestone
• Shock Series: HQ
• Shock Design: Aluminum-Body Monotube
• Shock Adjustment: Rebound Adjustable
• Control Arm Bushing Material: Delrin
• Rear Axle Location: Adjustable Panhard Bar
• Rear End Compatibility: Ford 9-inch or Stock/10-12 Bolt Chevrolet Rear End
• Spindle Requirement: 1959-1964 Stock Spindles
• Hardware Included: Yes

Included Components

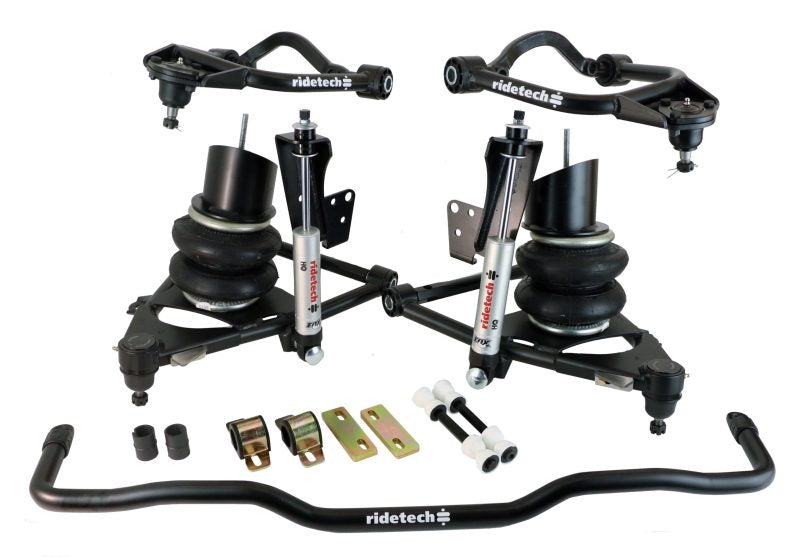

• 1x Front CoolRide Air Spring and HQ Shock System
• 1x Front Upper StrongArm Set
• 1x Front Lower StrongArm Set

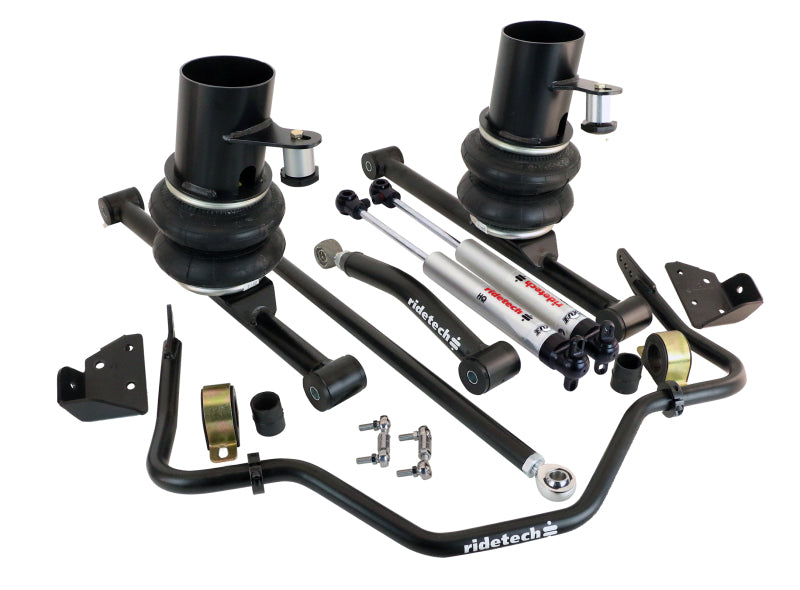

• 1x Rear CoolRide Air Spring and HQ Shock System
• 1x Rear Upper StrongArm Set

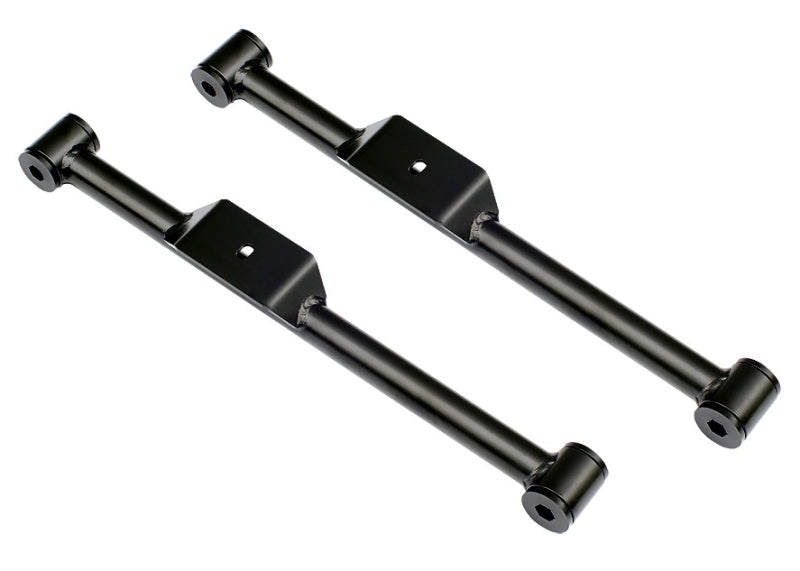

• 1x Rear Lower StrongArm Set
• 1x Adjustable Panhard Bar

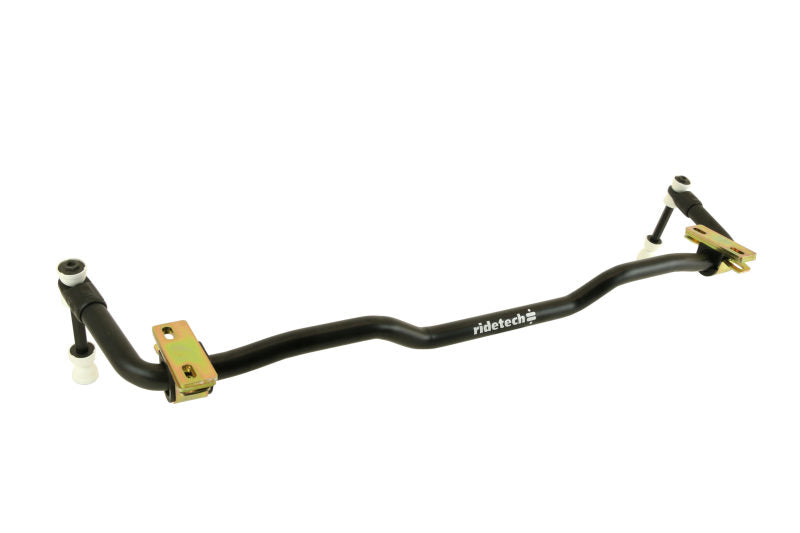

• 1x Front Sway Bar Assembly

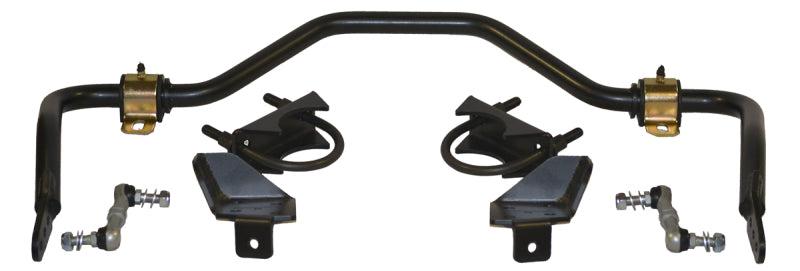

• 1x Rear Sway Bar Assembly
• 1x Mounting Hardware Set

Product Description

The Ridetech 11060297 is a complete HQ air suspension system engineered for compatible 1959-1964 Chevrolet B-Body vehicles. The system combines front and rear CoolRide air springs, HQ Series adjustable shocks, tubular StrongArms, performance sway bars and an adjustable Panhard bar to provide a substantially lower ride height while maintaining controlled handling and ride quality.

The front StrongArms feature corrected ball-joint geometry and increased caster capability, while the rear StrongArms use R-Joint technology to reduce suspension bind. Firestone air springs and application-specific mounting brackets provide adjustable ride height, and the rear Panhard bar helps center the axle at the selected height. The system requires the specified stock spindles and a separate compatible compressor system for operation.
