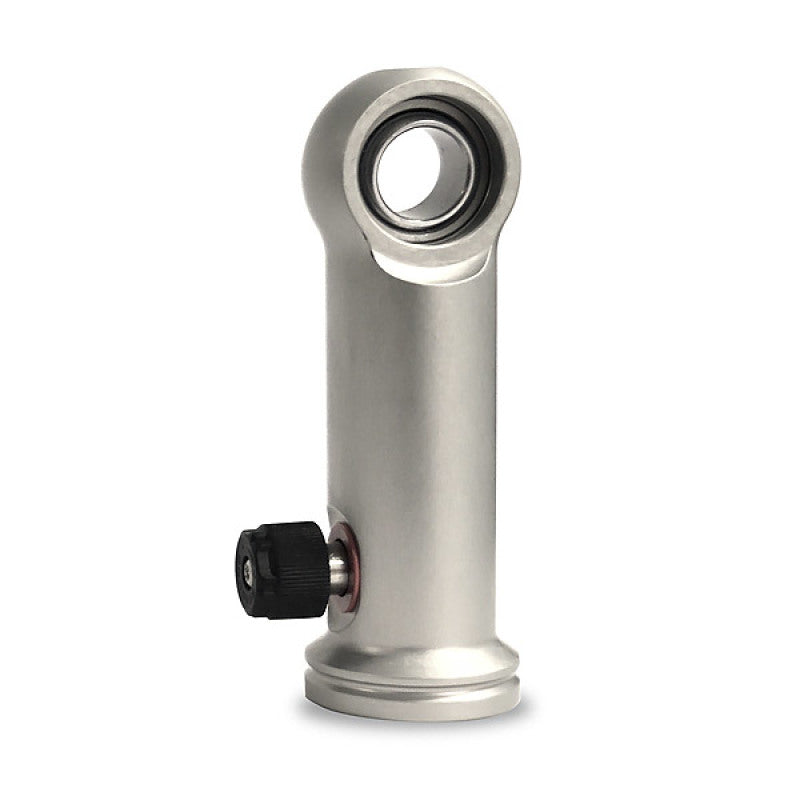

Ridetech 90002076 3.7in HQ Eye Mount for Coil-Overs Shockwaves

Vehicle Fitment

• Universal fit - compatible with all HQ and TQ Series coil-overs and ShockWaves using a 2" diameter threaded body, not tied to a specific vehicle

Fitment Notes

• Sold individually; verify your shock's threaded body diameter (2") before ordering
• Installation requires proper Loctite prep (712 primer, 262 threadlocker) on clean, dry threads, and torquing to 35-40 ft-lbs - Ridetech recommends installation by an authorized dealer

Features

• 3.7" tall eye mount for a taller upper mounting point
• Includes bearing and spacer kit
• Precision-engineered for seamless integration with Ridetech's coil-over and ShockWave line

Specifications

• Height: 3.7"
• Compatible thread diameter: 2" (HQ and TQ Series)
• Mount type: Eyelet with bearing and spacer
• Installation torque: 35-40 ft-lbs

Included Components

• 1x 3.7" Eyelet Assembly
• Bearing and Spacer Kit

Product Description

The Ridetech 90002076 is a 3.7" tall eye mount designed to work with any Ridetech HQ or TQ Series coil-over or ShockWave using a 2" diameter threaded shock body. It includes the bearing and spacer kit needed to complete the mounting point, offering a taller eyelet height than the standard end treatment.

Because it threads directly onto the shock body, proper installation matters - Ridetech specifies Loctite primer and threadlocker on clean threads along with precise torque specs, and recommends having it installed by Ridetech or a certified dealer. It's a common part for builders adjusting mounting geometry on a custom coil-over or ShockWave setup.
