Ridetech 90002048 2in HQ Stud Top Mount for Coil-Overs Shockwaves

Vehicle Fitment

• Universal fit - compatible with all HQ and TQ Series coil-overs and ShockWaves using a 2" diameter threaded body, not tied to a specific vehicle

Fitment Notes

• Sold individually; verify your shock's threaded body diameter (2") before ordering
• Installation requires proper Loctite prep (712 primer, 262 threadlocker) on clean, dry threads, and torquing to 35-40 ft-lbs - Ridetech recommends installation by an authorized dealer

Features

• 2" tall stud top mount for a taller upper mounting point
• Includes Delrin ball mount and all necessary hardware
• Precision-engineered for seamless integration with Ridetech's coil-over and ShockWave line

Specifications

• Height: 2"
• Compatible thread diameter: 2" (HQ and TQ Series)
• Mount type: Stud top with Delrin ball
• Installation torque: 35-40 ft-lbs

Included Components

• 1x 2" Stud Top Assembly
• Delrin Ball Mount
• Mounting Hardware

Product Description

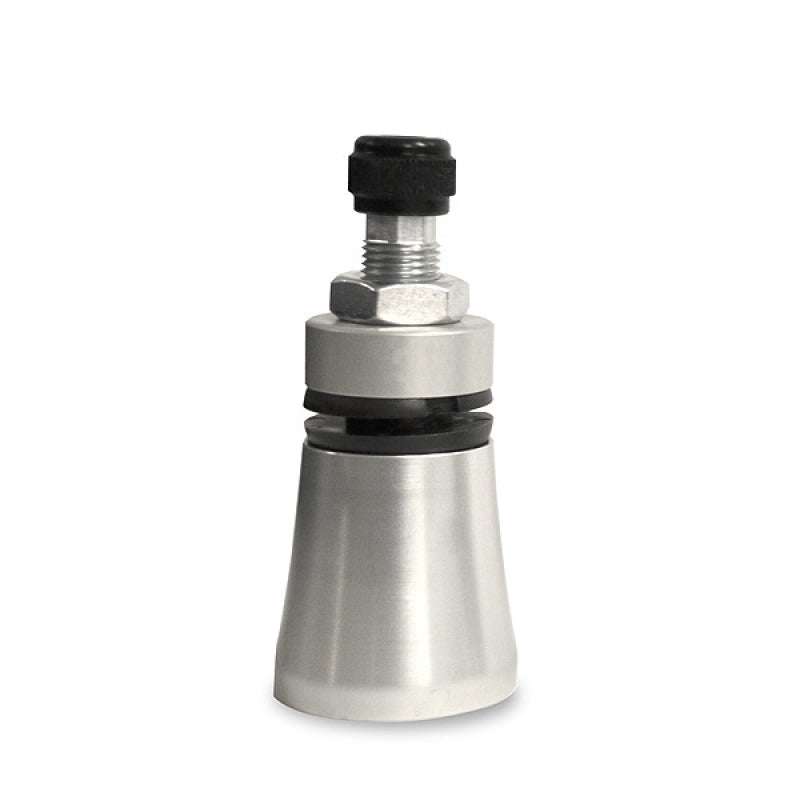

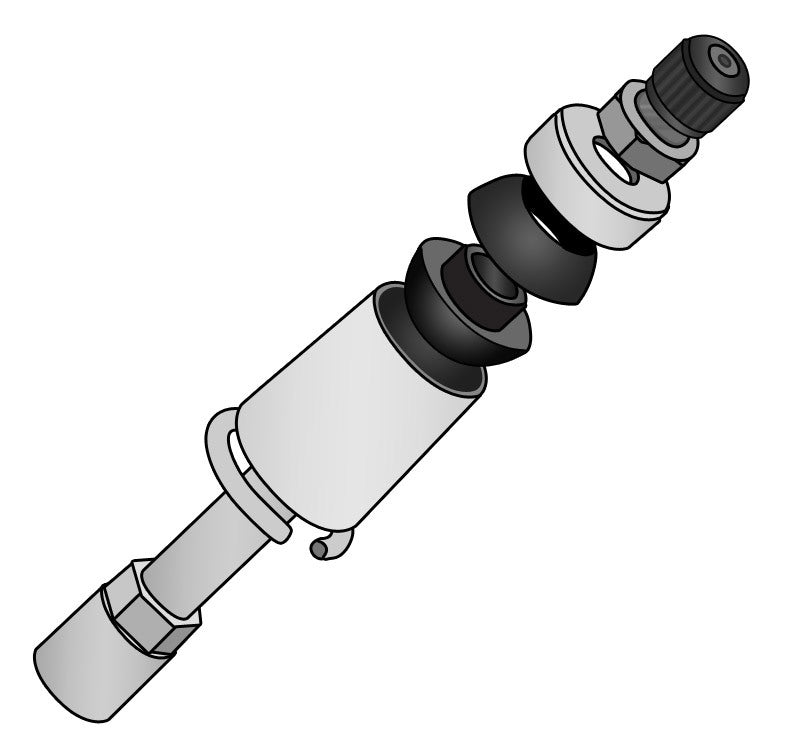

The Ridetech 90002048 is a 2" tall stud top assembly designed to work with any Ridetech HQ or TQ Series coil-over or ShockWave using a 2" diameter threaded shock body. It includes the Delrin ball mount and hardware needed to complete the upper mounting point, offering a taller stud height than the standard end treatment.

Because it threads directly onto the shock body, proper installation matters - Ridetech specifies Loctite primer and threadlocker on clean threads along with precise torque specs, and recommends having it installed by Ridetech or a certified dealer. It's a common part for builders customizing upper shock mount height on a coil-over or ShockWave setup.
