Ridetech 11702401 Front HQ ShockWaves for 2007-2018 Chevy Silverado 1500 2WD/4WD

Vehicle Fitment

• 2007-2018 Chevrolet Silverado 1500 (2WD/4WD)
• 2007-2018 GMC Sierra 1500 (2WD/4WD)
• 2019 Chevrolet Silverado 1500 Legacy
• 2019 GMC Sierra 1500 Limited

Fitment Notes

• Designed for use with stock lower control arms - no control arm upgrade required
• Compatible with both 2WD and 4WD applications

Features

• Integrated "shock-within-a-spring" air spring and shock assembly
• Lowers ride height 1"-2" from stock (3"-4" when combined with 2" drop spindles)
• 24-position rebound adjustment for tunable ride quality
• Monotube design with large 1.834" pistons and 5/8" hardened shafts
• Impact-forged body for leak-free, durable operation
• Instant ride height adjustment via air pressure, on the fly
• 1,000,001-mile shock warranty

Specifications

• Location: Front
• Rebound adjustment: 24 positions (HQ single-adjustable)
• Ride height drop: 1"-2" (3"-4" with 2" drop spindles)
• Piston diameter: 1.834"
• Shaft diameter: 5/8"

Included Components

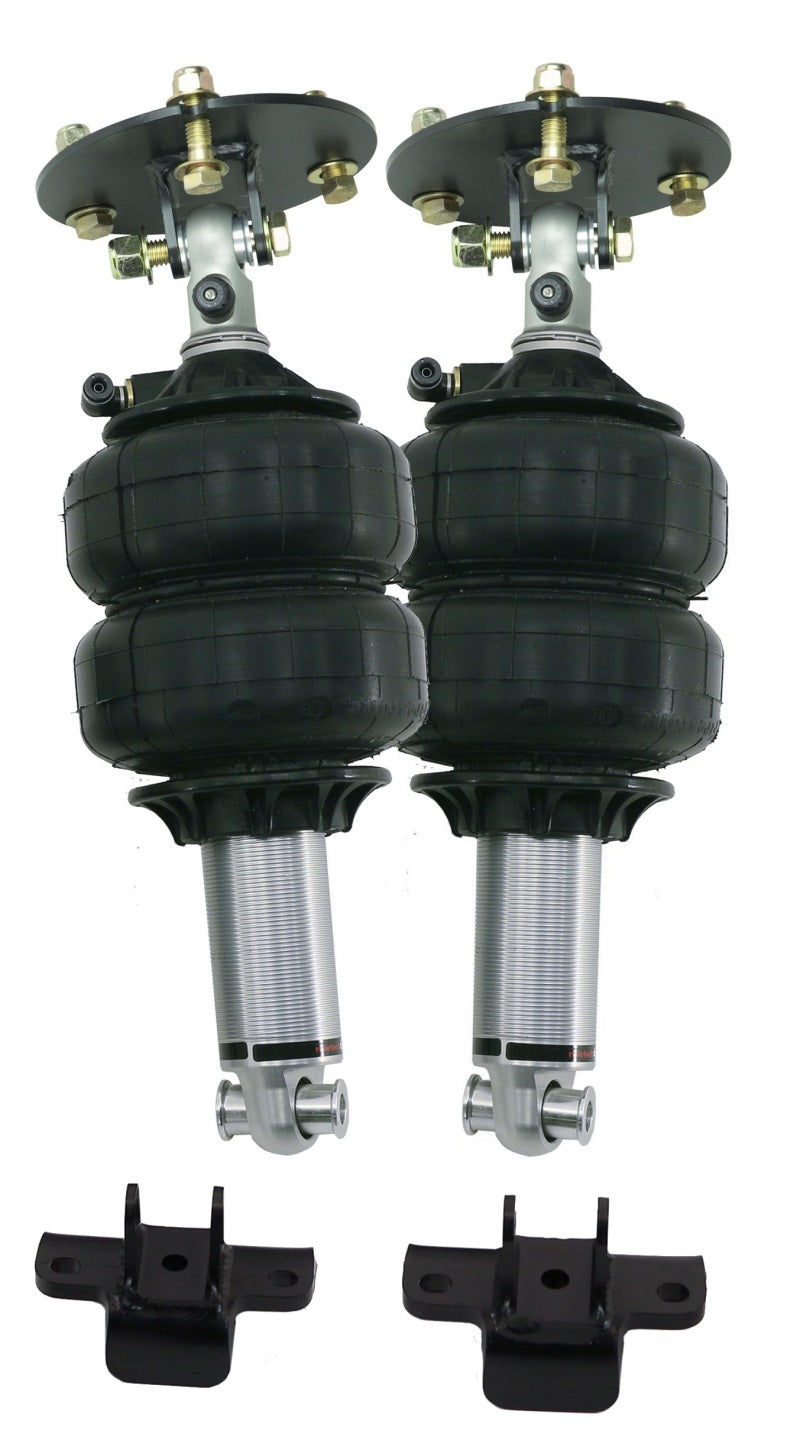

• 2x Front HQ Series ShockWave Air Springs/Shocks
• 1x Mounting Hardware Kit

Product Description

The Ridetech 11702401 Front HQ ShockWave system replaces the front coil springs and shocks on 2007-2018 Silverado and Sierra 1500 trucks with an integrated air spring/shock unit that mounts in the same location as the factory coil-over, using the stock lower control arms. Air pressure controls ride height instantly, dropping the truck 1"-2" on its own or 3"-4" when paired with 2" drop spindles.

24-position rebound adjustment lets you dial in handling feel, and since it works with the stock lower arms on both 2WD and 4WD trucks, it's a more accessible starting point than kits requiring a StrongArm upgrade. This kit is shocks and air springs only - an air compressor and management system are needed separately to run it.
