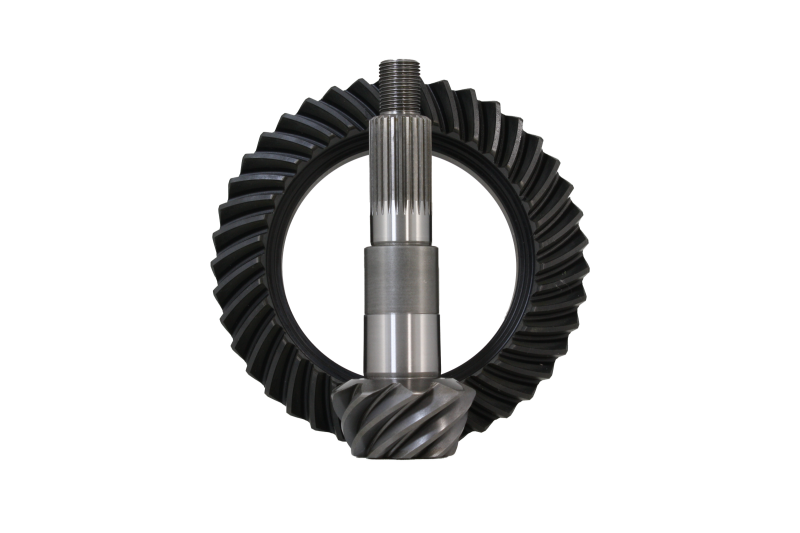

Revolution Gear D30-410R Dana 30 High Pinion Reverse 4.10 Ring Pinion YJ XJ

Vehicle Fitment

• 1987-1995 Jeep Wrangler YJ - Dana 30 high-pinion front axle
• 1984-1999 Jeep Cherokee XJ - Dana 30 high-pinion front axle
• 1986-1992 Jeep Comanche MJ - Dana 30 high-pinion front axle
• 1984-1991 Jeep Grand Wagoneer - Dana 30 high-pinion front axle (select applications)
• Jeep CJ models equipped with the Dana 30 high-pinion (reverse rotation) front axle

Fitment Notes

• Sold as a ring and pinion gear set - master install kit (bearings and hardware) is not included and must be purchased separately
• Reverse rotation (high-pinion) Dana 30 only - the D30-410R is specifically engineered for the high-pinion Dana 30 used in YJ Wranglers, XJ Cherokees, and similar applications; do NOT use in standard-rotation (low-pinion) Dana 30 differentials. To identify: if the pinion is positioned above the centerline of the axle tubes, it is a high-pinion/reverse-rotation unit
• Carrier break at 3.55/3.73 ratio - the Dana 30 uses two different carrier sizes separated at 3.73. If your current gear ratio is 3.55 or numerically lower (3.07, 2.73, etc.), installing 4.10 gears requires a new low-ratio carrier in addition to the ring and pinion set. If your current ratio is 3.73 or numerically higher, the existing carrier is compatible
• This is the earlier-style reverse-rotation Dana 30 kit (YJ/XJ era) - for the 2007-2018 Wrangler JK and 2018+ Wrangler JL Dana 30, use D30JK-JL-410R instead
• Ring gear bolts not included - source separately (10 x 3/8" thread)
• 26-spline pinion

Features

• 4.10 ratio ring and pinion for the Dana 30 high-pinion reverse-rotation front differential - a popular regear ratio for YJ Wranglers, XJ Cherokees, and other classic Jeep platforms running 31"-33" tires, restoring the correct power delivery and engine RPM relationship lost with larger diameter tires over the factory gear ratio
• 8620 steel construction, precision heat treated to OEM specifications - 8620 case-hardening alloy provides a hard, wear-resistant tooth surface with a tough, impact-resistant core for reliable on-road and off-road durability
• Double and in some cases triple lapped - Revolution Gear's lapping process ensures precise gear tooth contact patterns for quiet, smooth operation and extended gear life
• Precision controlled manufacturing processes - engineered to meet or exceed OEM gear specifications for correct backlash, tooth geometry, and surface finish
• Street, off-road, and race proven - backed by years of real-world validation across Jeep applications
• 2-year limited warranty against manufacturing defects

Specifications

• Part Number: D30-410R
• Brand: Revolution Gear & Axle
• Product Type: Ring and Pinion Gear Set
• Differential: Dana 30 (High-Pinion / Reverse Rotation)
• Gear Ratio: 4.10
• Ring Gear Rotation: Reverse (High-Pinion)
• Ring Gear Diameter: 7.2"
• Pinion Splines: 26
• Ring Gear Bolt Thread: 10 x 3/8"
• Cover Bolts: 10
• Carrier Break: 3.55/3.73 ratio
• Material: 8620 Steel, precision heat treated
• Country of Origin: Korea
• Warranty: 2-Year Limited against manufacturing defects
• UPC: 00810038581620

Included Components

• 1x Ring gear
• 1x Pinion gear
• Note: Ring gear bolts, master install kit, and carrier are NOT included

Product Description

The Revolution Gear D30-410R is a 4.10 ratio ring and pinion gear set for the Dana 30 high-pinion (reverse-rotation) front differential used in 1987-1995 Jeep Wrangler YJs, 1984-1999 Cherokee XJs, 1986-1992 Comanche MJs, and other classic Jeep applications. The high-pinion Dana 30 is one of the most regeared differentials in the Jeep world, and the 4.10 ratio is a natural upgrade for YJ and XJ owners running 31"-33" tires who want to restore proper power delivery, acceleration feel, and highway driving RPM that factory ratios lose when tire diameter increases.

Manufactured from 8620 case-hardening alloy steel and precision heat treated to OEM specifications, the D30-410R uses Revolution Gear's double and triple lapping process to achieve precise tooth contact patterns for quiet operation and long gear life. Note that the Dana 30 has a carrier break between 3.55 and 3.73: if your current ratio is 3.55 or numerically lower, installing 4.10 gears requires a new low-ratio carrier in addition to the ring and pinion set. A separate master install kit (bearings and hardware) is also required. For the newer JK/JL Wrangler Dana 30 (2007+), use the D30JK-JL-410R instead. Backed by Revolution Gear's 2-year limited warranty against manufacturing defects.
