Revolution Gear DC-D35-27 Discovery Rear Axle Kit 27 Spline for 93-06 Jeep Dana

Vehicle Fitment

• 1993-1995 Jeep Wrangler YJ (Dana 35 rear axle, 27 spline)
• 1996-2006 Jeep Wrangler TJ (Dana 35 rear axle, 27 spline)
• 1993-2001 Jeep Cherokee XJ (Dana 35 rear axle, 27 spline)
• 1993-1998 Jeep Grand Cherokee ZJ (Dana 35 rear axle, 27 spline)

Fitment Notes

• Dana 35 rear axle only -- verify axle before ordering
• 27 spline axles only -- for 30 spline upgrade see DC-D35-30
• Bolt-in style axles -- NOT C-clip style
• 5x4.5" bolt pattern
• Wheel studs NOT included
• Bearings, seals, and retainers are pre-pressed and ready to install

Features

• Discovery Series -- premium 1541H alloy steel construction
• Stronger than OEM 1040/1050 steel axles
• Rolled splines -- 30% stronger than cut splines
• Bolt-in style -- direct OEM replacement, no differential modification required
• Bearings, seals, and retainers pre-pressed for easy installation
• 10-year warranty -- covers axle breakage, bent axles, and twisted splines
• Designed for street, off-road, and trail use

Specifications

• Part Number: DC-D35-27
• Series: Discovery Series
• Axle Type: Dana 35 rear, bolt-in
• Spline Count: 27
• Axle Material: 1541H alloy steel
• Right (Passenger) Axle Length: 29.0"
• Left (Driver) Axle Length: 30.5"
• Bolt Pattern: 5x4.5"
• UPC: 810038583006
• Warranty: 10-year (axle breakage, bent axles, twisted splines)
• Quantity: Kit (left and right axles)

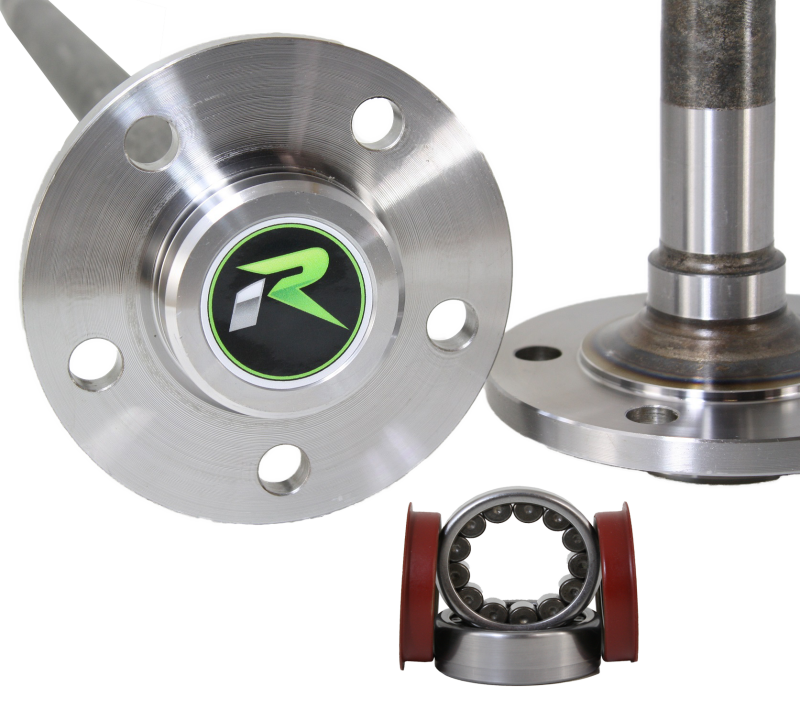

Included Components

• 1x left (driver side) rear axle shaft
• 1x right (passenger side) rear axle shaft
• Bearings, seals, and retainers (pre-pressed)

Product Description

The Revolution Gear DC-D35-27 is a Discovery Series Dana 35 rear axle kit for the 1993-2006 Jeep Wrangler YJ/TJ, 1993-2001 Cherokee XJ, and 1993-1998 Grand Cherokee ZJ with 27 spline axles. Machined from 1541H alloy steel with rolled splines -- 30% stronger than the cut splines on OEM axles -- these bolt-in replacement axles are a direct drop-in upgrade to the factory Dana 35. Bearings, seals, and retainers arrive pre-pressed and ready to install for a streamlined installation process.

Fits Dana 35 bolt-in style axles only -- not C-clip style. Wheel studs not included. For a 30 spline upgrade see DC-D35-30. Backed by Revolution Gear's 10-year warranty covering axle breakage, bent axles, and twisted splines. Bearings and seals are covered for 1 year; warranty is non-transferable.
