Revel 1TR1AA003R VLS OLED Oil Temperature Gauge 52mm - Universal

Vehicle Fitment

• Universal -- fits all vehicles (not vehicle-specific)

Fitment Notes

• Universal fitment -- requires 1/8" NPT port for oil temperature sensor
• 52mm (2-1/16") gauge diameter -- fits standard 52mm gauge pods and mounting locations
• Sensor must be installed in an oil gallery, oil filter sandwich plate, or oil pan bung
• Requires 12V switched power source and ground connection
• Daisy-chain compatible with other Revel VLS OLED gauges for single power source wiring
• Not daisy-chain compatible with VLS Wideband A/F or VLS Intercooler Dual Temp gauges

Features

• OLED (Organic Light Emitting Diode) digital numerical display
• Sharper contrast and deeper blacks than traditional LCD displays
• 170-degree undistorted viewing angle
• No backlight required -- clearly visible at night with slim profile
• 30 LED outer ring for quick-glance readings
• Oil temperature range: 100°F to 300°F
• 1/8" NPT thread pitch oil temperature sensor included
• Daisy-chain compatible with VLS Boost, Water Temp, Oil Pressure, and Voltage gauges
• Single power source wiring when daisy-chained with other VLS gauges
• Includes universal mounting pod, sun shade hood, and hardware

Specifications

• Part number: Revel 1TR1AA003R
• Series: VLS
• Type: Oil temperature gauge
• Display: Digital OLED
• Gauge diameter: 2-1/16" (52mm)
• Temperature range: 100°F - 300°F
• LED ring: 30 LEDs
• Viewing angle: 170 degrees
• Sensor thread: 1/8" NPT
• Power: 12V DC
• Fitment: Universal

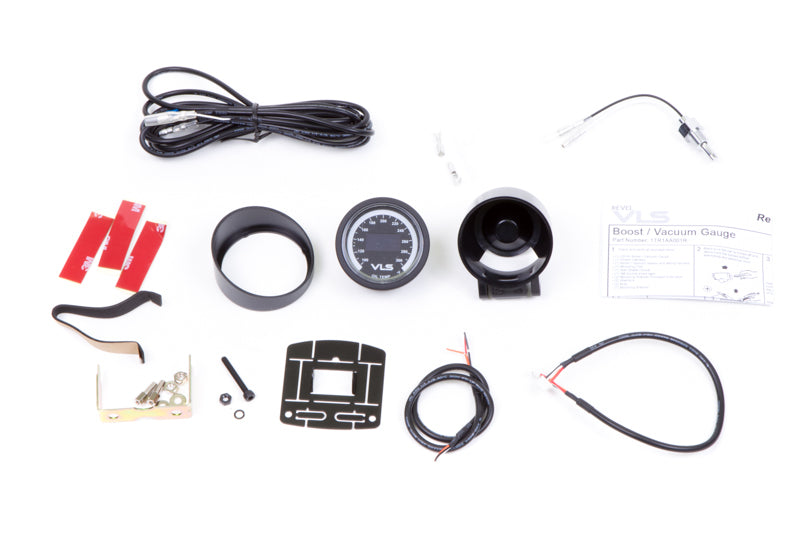

Included Components

• (1) Revel VLS OLED oil temperature gauge (52mm)
• (1) Oil temperature sensor with wiring harness (1/8" NPT)
• (1) Power harness
• (1) Daisy-chain cable
• (1) Universal mounting pod
• (1) Sun shade hood
• (1) 3M double-sided tape
• (2) Mounting bracket threaded extensions
• (2) Washers
• (2) Nuts
• Installation instructions

Product Description

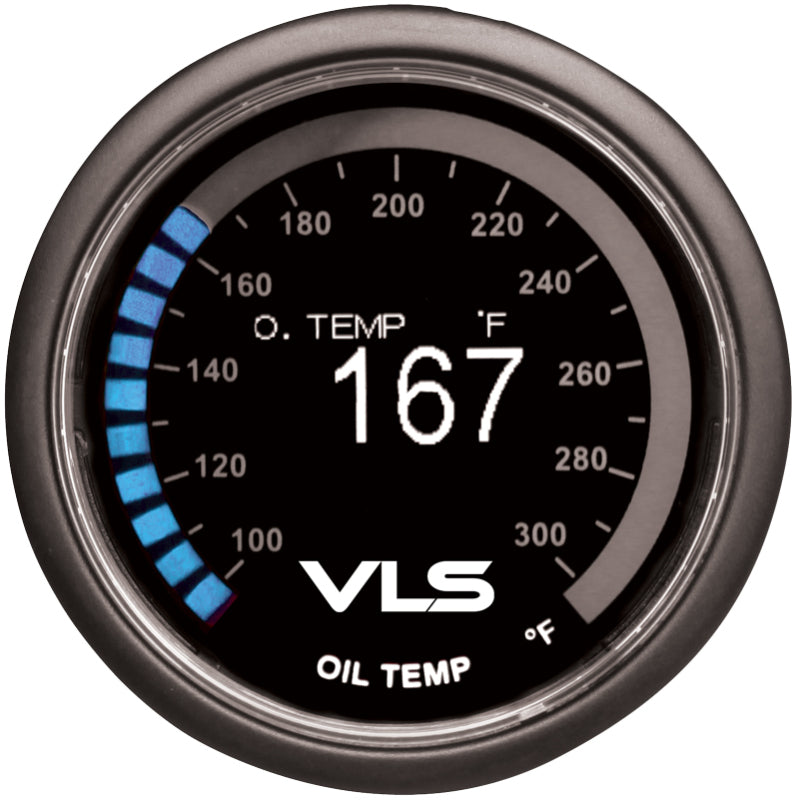

The Revel 1TR1AA003R is a VLS series 52mm digital OLED oil temperature gauge that monitors engine oil temperature from 100°F to 300°F. The OLED display delivers sharper contrast and deeper blacks than conventional LCD gauges, producing crisp, clear readings without requiring a backlight. This makes the gauge easy to read in both daylight and nighttime conditions while maintaining a slim profile that fits in tight mounting locations. A 170-degree viewing angle ensures accurate readings from nearly any position in the cabin. The 30 LED outer ring surrounding the face provides an at-a-glance visual reference of the current temperature without needing to read the numerical display. The included 1/8" NPT oil temperature sensor installs into any standard oil gallery port, filter sandwich plate adapter, or oil pan bung. The VLS daisy-chain system allows this gauge to share a single 12V power source with other compatible VLS gauges including the Boost, Water Temperature, Oil Pressure, and Voltage models, reducing wiring complexity and simplifying multi-gauge installations. A universal mounting pod with sun shade hood and all necessary hardware are included for immediate installation.
