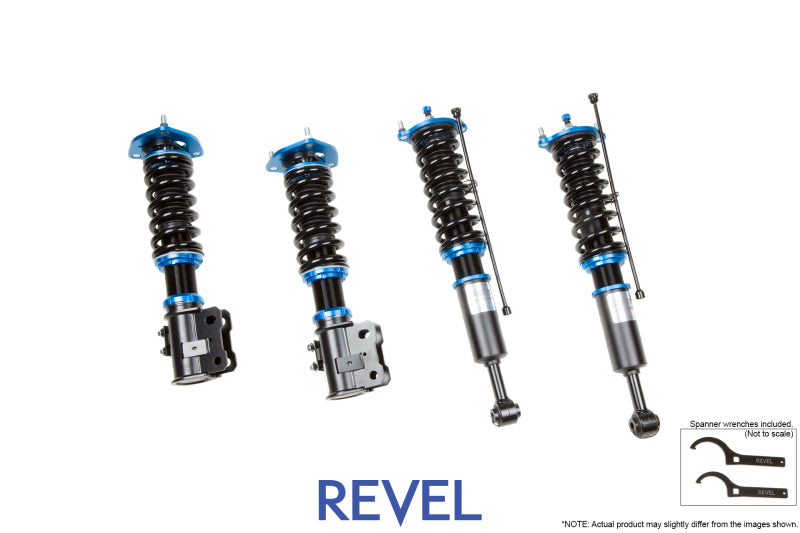

Revel 1TR3CDMT002 Touring Sport Damper Coilover Kit 2008-2015 Mitsubishi Lancer

Vehicle Fitment

• 2008-2015 Mitsubishi Lancer Evolution X / Evo 10 (All Trims)

Fitment Notes

• Complete coilover kit - replaces all four corners of the factory suspension
• Front camber plates included - allow camber adjustment for alignment correction after lowering
• Pillowball (spherical bearing) upper mounts included - not compatible with vehicles requiring OEM rubber-style upper mounts

Features

• 32-way damping adjustment - dial in compression and rebound damping force from street comfort to track-focused firmness with a single click adjustment
• Monotube damper design provides a faster, more responsive damping action and improved heat management compared to twin-tube designs
• Spring rates of 8kg/mm front and 8kg/mm rear - carefully balanced for the Evo X platform to blend street comfort with performance handling
• Full-length threaded body with independent spring preload adjustment allows for maximum ride height lowering range without sacrificing spring preload
• Pillowball upper mounts with spherical bearings deliver sharper steering feedback and improved chassis communication versus OEM rubber mounts
• Teflon thrust washers reduce friction during steering input and eliminate spring binding and unwanted spring movement
• Larger piston valves and increased oil capacity deliver a faster-reacting damping force and consistent performance across all temperature ranges
• Front adjustable camber plates aid in achieving proper alignment and improved tire contact after lowering
• High-strength, high-rigidity mounting brackets ensure confidence and stability across all driving conditions

Specifications

• Part Number: 1TR3CDMT002
• Brand: Revel (by Tanabe USA)
• Series: Touring Sport Damper
• Damper Type: Monotube
• Damping Adjustment: 32-way
• Spring Rate (Front): 8 kg/mm
• Spring Rate (Rear): 8 kg/mm
• Upper Mounts: Pillowball (spherical bearing)
• Front Camber Plates: Included
• Thread Body: Full-length with independent preload
• Thrust Washers: Teflon
• Warranty: 1-year limited

Included Components

• 4x Monotube coilover assemblies (2x front, 2x rear)
• 4x Pillowball upper mount assemblies
• 2x Front adjustable camber plates
• Teflon thrust washers
• Complete mounting hardware and installation hardware

Product Description

The Revel 1TR3CDMT002 is a Touring Sport Damper coilover kit engineered for the 2008-2015 Mitsubishi Lancer Evolution X. Developed by Revel - a brand introduced by the 30-year suspension veteran Tanabe USA - the Touring Sport Damper is designed to deliver the most comfortable, street-capable ride quality achievable in a coilover kit without sacrificing the low ride height and suspension tuning capability that performance drivers demand. The monotube damper design with 32-way damping adjustment lets drivers dial in exactly the balance of compliance and control they want, from a smooth daily driver setup to a firm, track-oriented tune.

Spring rates of 8kg/mm front and rear are specifically selected for the Evo X platform, balancing the car's AWD character and performance-oriented nature with everyday drivability. The full-length threaded body and independent spring preload allow for an extended lowering range, while pillowball upper mounts with Teflon thrust washers replace the factory rubber mounts with a setup that provides sharper steering feedback and eliminates spring binding. Front adjustable camber plates are included for proper alignment correction after lowering. High-strength mounting brackets and larger piston valves with increased oil capacity round out a coilover kit designed to perform consistently across all driving conditions and temperature ranges.
