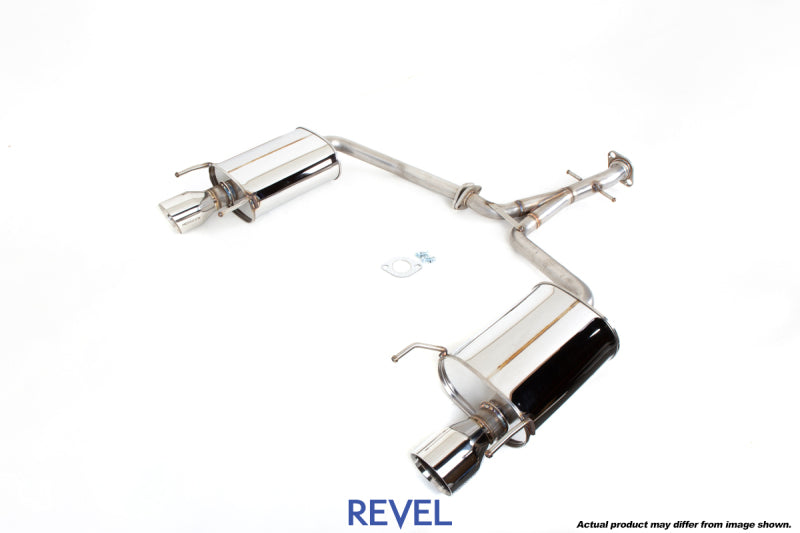

Revel T70112R Medallion Touring-S Exhaust for 06-12 Lexus GS300/350/430/460

Vehicle Fitment

• 2006 Lexus GS300 (S190)
• 2007-2012 Lexus GS350 (S190)
• 2006-2007 Lexus GS430 (S190)
• 2008-2011 Lexus GS460 (S190)

Fitment Notes

• Dual muffler / rear section only (axle-back)
• Does not alter, replace, or modify any emissions equipment
• Fits all S190 GS platform variants (RWD and AWD -- verify clearance)
• Direct bolt-on to factory mid-pipe

Features

• Medallion Touring-S -- clean, deep, low tone
• Full SUS304 stainless steel construction
• 1.5mm wall thickness piping -- reduced resonation
• Mandrel bent piping -- maintains diameter through bends
• Straight-through muffler design for improved flow
• Compact muffler canisters -- optimal ground clearance for lowered vehicles
• Fully hand TIG welded
• Laser cut flanges for stronger, more durable connections
• Dual-wall angle cut tips -- large inner diameter
• Advantex packing material -- superior flow and sound suppression
• Tested under 93 dB under load

Specifications

• Part Number: T70112R
• Brand: Revel (by Tanabe USA)
• Product Line: Medallion Touring-S
• Type: Dual muffler rear section (axle-back)
• Pipe Diameter: 60-50mm
• Tip Diameter: 115mm
• Tip Style: Dual-wall angle cut
• Material: SUS304 stainless steel
• Wall Thickness: 1.5mm
• Sound Level: Under 93 dB under load
• Weight: 53.5 lbs
• Warranty: 1-year Revel warranty

Included Components

• Dual muffler rear section assembly
• Dual-wall angle cut exhaust tips
• Mounting hardware and gaskets
• Installation instructions

Product Description

The Revel T70112R Medallion Touring-S is a dual muffler rear section (axle-back) exhaust for the 2006-2012 Lexus GS300, GS350, GS430, and GS460 (S190 platform). Constructed entirely from SUS304 stainless steel with 1.5mm wall thickness piping, the system delivers excellent corrosion resistance and reduced resonation. Mandrel bent piping maintains full diameter through every bend for optimized exhaust flow, while the straight-through muffler design improves flow and reduces weight. Compact muffler canisters provide optimal ground clearance for lowered vehicles, and the 115mm dual-wall angle cut tips add a modern, aggressive aesthetic.

Tested under 93 dB under load, the Touring-S produces a clean, deep tone that remains pleasant across all RPM ranges without droning. Advantex packing material inside the mufflers provides superior sound suppression while maintaining flow characteristics -- outperforming traditional loosely-packed fiberglass and composite cube materials. Every joint is fully hand TIG welded with laser cut flanges for precise alignment and durable connections. This is an axle-back system that bolts directly to the factory mid-pipe and does not alter any emissions equipment. Revel is the performance brand of Tanabe USA, backed by over 30 years of exhaust engineering expertise. 1-year manufacturer warranty.
