Revel T70093R Medallion Touring-S Dual Muffler Cat-Back Exhaust 60mm 04-08 Acura

Vehicle Fitment

• 2004-2008 Acura TSX (All Trims, 2.4L i-VTEC K24A2)

Fitment Notes

• Cat-back exhaust system - replaces all exhaust components from the catalytic converter outlet rearward
• Dual muffler configuration - fits the TSX's dual-exit rear bumper layout
• Designed and tested for U.S.-specification Acura TSX with OEM exhaust systems; fitment on previously modified exhaust setups may vary

Features

• Full SUS304 stainless steel construction throughout for superior corrosion resistance and long-term durability
• 1.5mm wall thickness piping provides increased strength and reduces resonation and unwanted cabin noise
• Mandrel-bent piping maintains consistent 60mm diameter (stepped to 50mm) through every bend - optimizing exhaust flow and sound characteristics
• Fully hand TIG welded with laser-cut flanges for maximum joint strength and durability
• Straight-through muffler design delivers better exhaust flow for increased power and reduced backpressure versus factory
• Compact muffler canisters provide optimal ground clearance for lowered vehicles
• Advantex packing material - heat resistant to 1,200°F, delivers superior flow characteristics and sound suppression over loose fiberglass or composite cube packing
• 100mm dual-wall angle cut exhaust tips - large inner diameter for a modern aesthetic and increased exit flow
• Tested under 93dB under load - produces a clean, deep tone at all RPM ranges without becoming intrusive

Specifications

• Part Number: T70093R
• Brand: Revel (by Tanabe USA)
• Series: Medallion Touring-S
• Type: Cat-back exhaust system, dual muffler
• Material: Full SUS304 stainless steel
• Wall Thickness: 1.5mm
• Pipe Diameter: 60mm (stepped to 50mm)
• Tip Diameter: 100mm
• Tip Style: Dual-wall angle cut
• Muffler Design: Straight-through
• Packing: Advantex (heat resistant to 1,200°F)
• Sound Level: Under 93dB under load
• Construction: Mandrel bent; fully hand TIG welded; laser-cut flanges

Included Components

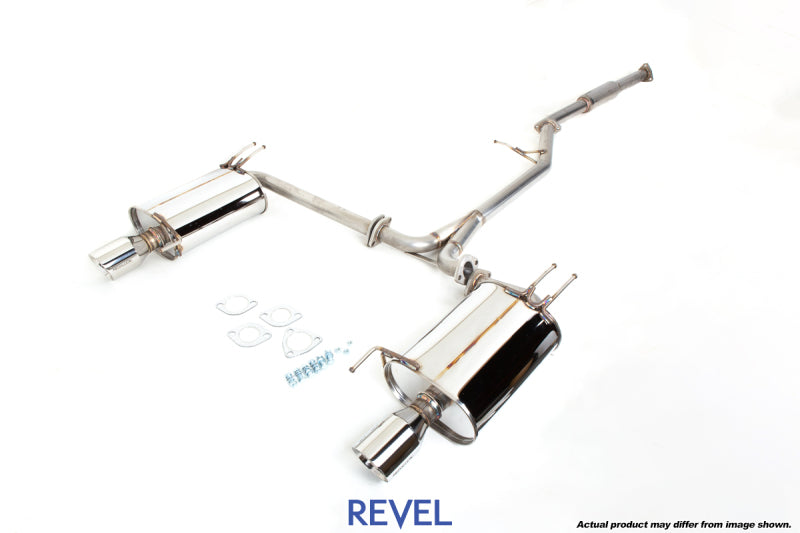

• Complete Medallion Touring-S cat-back exhaust system (all pipes, dual mufflers, and dual 100mm tip assemblies)
• Mounting hardware and installation hardware

Product Description

The Revel T70093R is a Medallion Touring-S dual muffler cat-back exhaust system engineered for the 2004-2008 Acura TSX. The Medallion Touring-S is Revel's flagship street exhaust line, targeting TSX owners who want genuine exhaust improvement - better flow, a more engaging sound, and a clean premium appearance - without crossing into the loud or antisocial territory that makes daily driving uncomfortable. Tested under 93dB under load, the system produces a clean deep tone at all RPM ranges that is audibly richer than stock but remains composed and refined.

The system is built from full SUS304 stainless steel with 1.5mm wall thickness piping, mandrel bent throughout to maintain the 60mm pipe diameter at every bend for uninterrupted exhaust flow. The straight-through dual muffler design reduces backpressure for performance gains over the factory unit, while compact canisters preserve ground clearance on lowered TSX builds. Advantex packing material - heat resistant to 1,200°F - provides superior long-term sound suppression compared to conventional fiberglass packing. Fully hand TIG welded with laser-cut flanges and finished with 100mm dual-wall angle cut tips, the T70093R delivers the fit and finish expected from a premium Japanese exhaust manufacturer backed by Tanabe's 30+ years of development experience.
