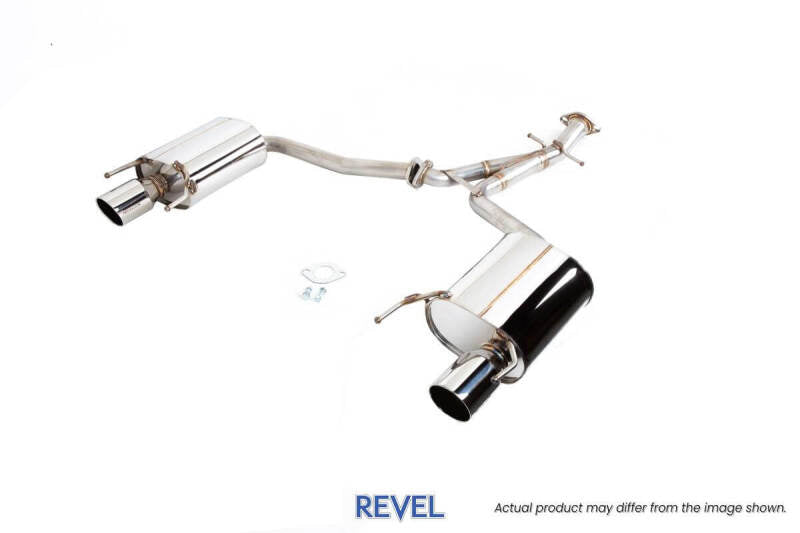

Revel T20113A Medallion Street Plus Axleback Exhaust for 06-13 Lexus IS250/350

Vehicle Fitment

• 2006-2013 Lexus IS250, AWD/RWD
• 2006-2013 Lexus IS350, AWD/RWD

Fitment Notes

• Axleback (rear section) design, dual muffler configuration with dual rear exit - does not include the mid-pipe or cat-back sections forward of the axle
• Compatible with both AWD and RWD IS250/IS350 drivetrain configurations

Features

• Hand TIG welded throughout for clean, high-quality welds that hold up to road elements and thermal cycling
• Mandrel-bent piping maximizes exhaust flow without the flow restriction that comes from crush-bent tubing
• Laser-cut flanges provide a secure connection between individual pipe sections and help prevent exhaust leaks
• Single-wall rolled tips give a clean, elegant appearance while enhancing the exhaust's deep tone
• Rolled muffler canister design keeps the overall presentation clean and understated
• Tested to stay under 95 dB under load - an aggressive but not overly loud tone suited to street use
• Full stainless steel construction for long-term durability and corrosion resistance

Specifications

• Part Number: T20113A
• Brand: Revel
• Product Line: Medallion Street Plus
• Position: Axleback, Dual Rear Exit
• Pipe Diameter: 60-50mm
• Tip Diameter: 100mm
• Material: Stainless Steel (SUS304)
• Sound Level: Under 95 dB (under load)
• Construction: Fully hand TIG welded

Included Components

• 1x Medallion Street Plus Axleback Exhaust System (Dual Muffler/Rear Section)
• Installation Hardware

Product Description

The Revel T20113A Medallion Street Plus is an axleback exhaust system engineered specifically for the 2006-2013 Lexus IS250 and IS350, available in both AWD and RWD configurations. Positioned as a competitively priced step up from a factory exhaust replacement, this system is handcrafted to a high standard while staying tested under 95 dB under load - giving a noticeably deeper tone without crossing into an overly loud daily-driving experience.

Construction runs full stainless steel with mandrel-bent piping to maximize exhaust flow, paired with laser-cut flanges that keep individual sections securely joined and leak-free. Every weld is completed by hand using TIG welding for a clean, consistent finish built to hold up to road salt, moisture, and everyday thermal cycling.

The dual rear-exit design pairs with single-wall rolled tips at 100mm, giving the IS250/IS350 a more assertive rear-end look while the rolled muffler canister keeps the overall presentation understated rather than flashy. As an axleback system, this replaces just the rear section of the exhaust - pipe diameter steps from 60mm down to 50mm through the assembly for a balanced flow characteristic.
