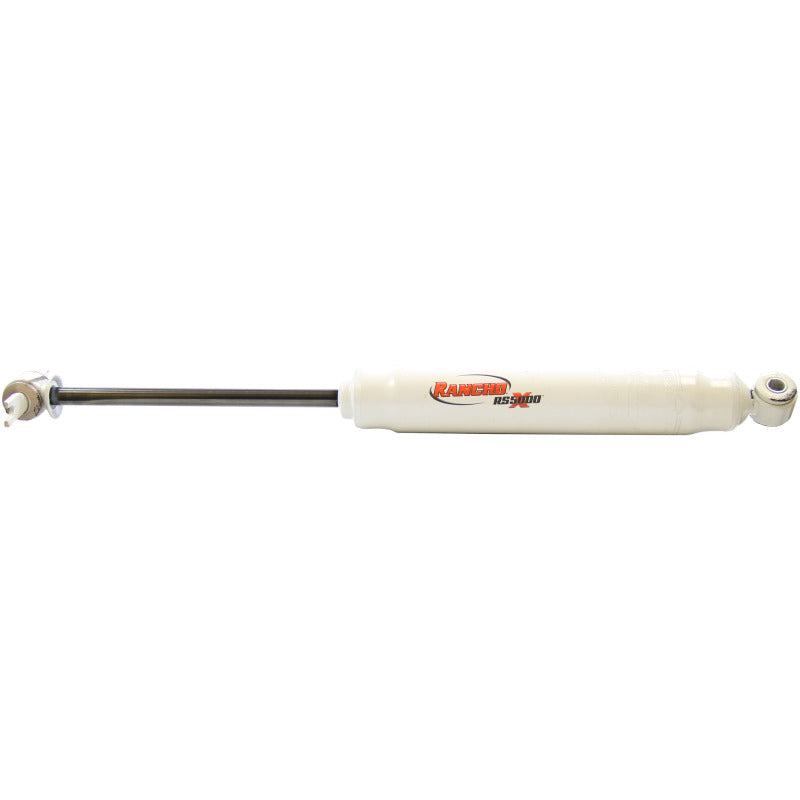

Rancho RS55256 Rear RS5000X Shock for 97-06 Jeep Wrangler/TJ 3.5" Lift

Vehicle Fitment

• 1997-2006 Jeep Wrangler/TJ (Rear, with ~3-3.5" Lift)

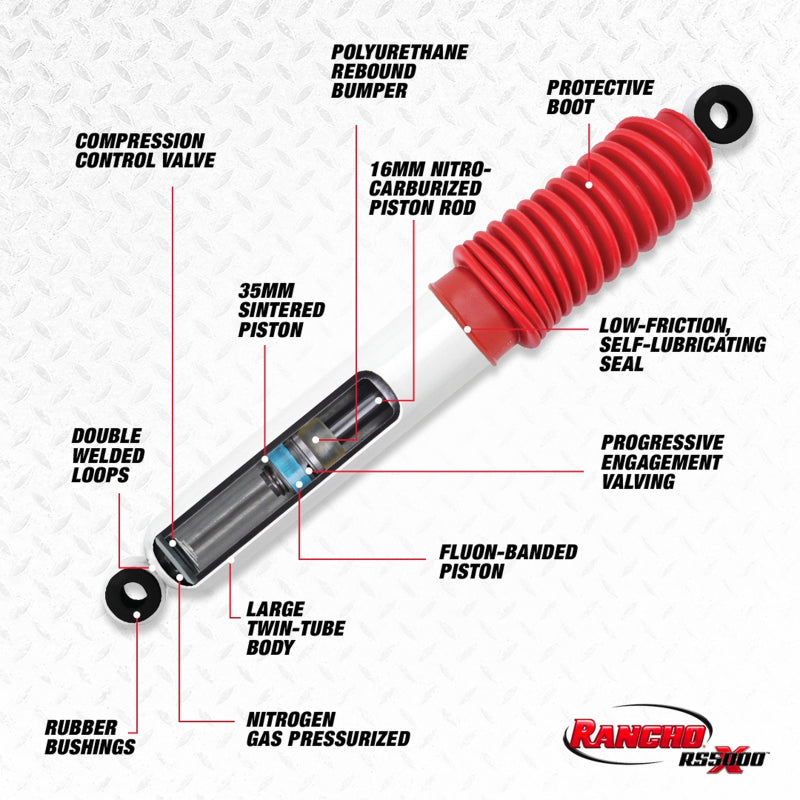

Features

• Rear shock absorber from Rancho RS5000X performance series
• Progressive Engagement Valving for smoother damping response
• Tuned Compression Control Valve enhances impact absorption
• Gas-charged twin-tube design for consistent control and performance
• 16 mm nitro-carburized piston rod for corrosion resistance
• Full-displaced 35 mm piston for stable fluid control
• Protective boot included to shield piston and seal
• Rubber bushings reduce vibration and noise transmission

Specifications

• Position: Rear
• Series: RS5000X
• Extended length: ~24.67" (627 mm)
• Compressed length: ~15.01" (381 mm)
• Damper travel: ~9.63-9.66" (245 mm) approx.
• Gas charged: Yes
• Internal design: Twin-tube
• Upper mount: Cross-pin
• Lower mount: Eyelet/loop bushing

Included Components

• 1x Rancho RS55256 Rear RS5000X Shock Absorber
• 1x Protective shock boot
• 1x Set of rubber bushings (upper & lower)

Product Description

The Rancho RS55256 is a rear-position performance shock from the RS5000X series engineered for 1997-2006 Jeep Wrangler and TJ models with approximately 3-3.5" rear suspension lift. Featuring Gas-Charged twin-tube construction with Progressive Engagement Valving and a tuned Compression Control Valve, this shock delivers smooth damping over rough terrain while maintaining vehicle stability and comfort.

Built for both daily driving and off-road use, the nitro-carburized piston rod and full-displaced 35 mm piston provide durability and consistent performance. Protective boots and rubber bushings help extend service life by reducing exposure to debris and vibration. The RS55256 installs easily using factory mounting points and is a solid upgrade for lifted Wrangler owners seeking better control and ride quality.
