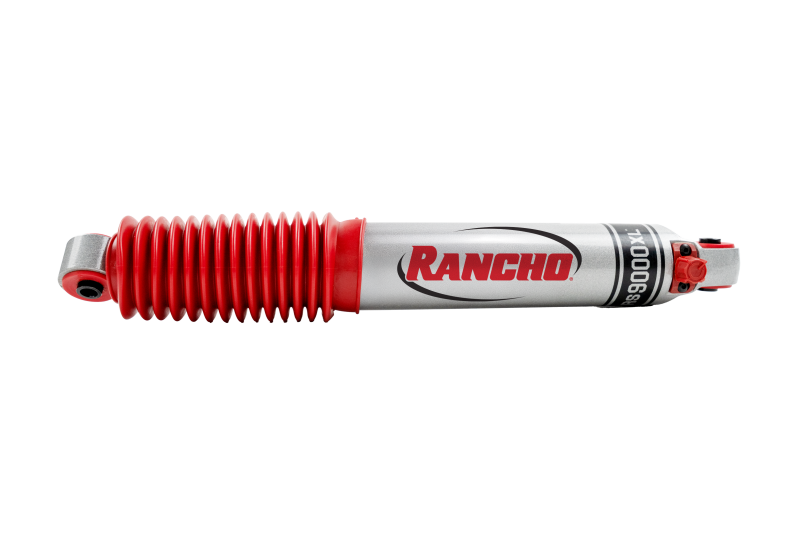

Rancho RS994014 RS9000XL Front Shock for 1961-1965 Ford F-100

Vehicle Fitment

• 1961-1965 Ford F-100 (Base, engine-specific application not published in verified catalog data)
• 1977-1979 Ford F-150 (Base, Custom, Northland, Ranger, Ranger Lariat, Ranger XLT, XLT; engine-specific application varies by configuration)
• 1961-1979 Ford F-250 (Base, Custom, Northland, Ranger, Ranger Lariat, Ranger XLT, XLT; year-specific trim availability varies)

Fitment Notes

• Front suspension shock absorber with stem-style upper and lower mounting.
• For 1977-1979 F-150 applications, verified catalog data identifies 4WD configurations using this front shock; verify exact drivetrain and suspension configuration before ordering.
• 1977-1979 F-150 applications include configurations without factory-equipped quad shocks where specifically cataloged.
• Fitment varies by year, trim, suspension configuration, and shock mounting arrangement; do not assume compatibility solely from model designation.

Features

• Part of the Rancho RS9000XL performance shock absorber series.
• Nine-position manually adjustable damping for ride and handling control.
• Allows damping firmness to be tailored for on-road and off-road driving.
• Nitrogen gas-charged construction helps reduce foaming and performance fade.
• Tri-tube internal construction provides application-specific damping performance.
• Progressive valving is designed to provide responsive control over changing road conditions.
• Steel shock body with protective painted finish for durability.
• Protective boot and dust shield help protect the shock rod and sealing components.
• Internal rebound bumper helps control shock movement at extension.
• Manual damping adjustment uses an externally accessible adjustment control.

Specifications

• Brand: Rancho
• Part Number: RS994014
• Series: RS9000XL
• Position: Front
• Type: Telescopic shock absorber
• Adjustment: 9-position manual damping adjustment
• Construction: Tri-tube
• Body Material: Steel
• Body Diameter: 2.13 in (54 mm)
• Rod Diameter: 0.63 in (16 mm)
• Compressed Length: 15.17 in (385.2 mm)
• Extended Length: 24.61 in (625.2 mm)
• Shock Travel: 9.45 in (240 mm)
• Upper Mount: Stem
• Lower Mount: Stem
• Gas Charged: Yes
• Boot Included: Yes
• Dust Shield Included: Yes
• Mounting Hardware Included: Yes
• Coil Spring Included: No
• Remote Reservoir: No
• Adjustable Ride Height: No

Included Components

• 1x Rancho RS994014 RS9000XL Front Shock Absorber
• 1x Mounting Hardware Set

Product Description

The Rancho RS994014 RS9000XL is a manually adjustable performance shock absorber designed to provide greater control and damping flexibility for compatible classic Ford trucks. Its nine-position adjustment allows the shock to be tuned for different driving conditions, from everyday road use to towing, hauling, and off-road operation.

The shock features nitrogen-charged tri-tube construction, progressive valving, a steel body, protective boot, and internal rebound control. The verified application range includes selected Ford F-100, F-150, and F-250 configurations, with exact compatibility dependent on year, trim, drivetrain, and suspension configuration. This listing is for the front position and should be matched against the vehicle's exact application before installation.
