Rancho RS66507R9 3 in Suspension Lift Kit RS9000XL for 2014-2020 Ford F-150 4WD

Vehicle Fitment

• 2014-2020 Ford F-150 (All Trims, 2.7L EcoBoost V6 / 3.5L EcoBoost V6 / 3.3L V6 / 5.0L V8, 4WD)

Fitment Notes

• 4WD models ONLY - does not fit 2WD/RWD Ford F-150
• Does NOT fit Ford F-150 Raptor (any year)
• OE springs and factory top mounting strut components must be reused - not included in this kit
• Trimming or modification required to achieve proper clearance when running 35-inch development tires
• Bumpers, winches, and other front-end accessories may affect actual lift height achieved
• Post-installation alignment by a qualified shop is highly recommended
• Kit ships in three separate boxes - order RS66507R9-1, RS66507R9-2, and RS66507R9-3 for the complete system

Features

• Lifts front 3 inches and raises rear 1.5 inches via block kit to fully level the truck
• RS9000XL 9-position adjustable struts and rear shocks - settings 1-3 for on/off-road flexibility, 4-6 for RS5000-equivalent performance, 7-9 for performance and towing
• Rancho-designed upper control arms with preinstalled ball joints keep factory alignment geometry in operating range and add wheel travel
• Greaseable Zerk fittings on control arm pivots for easy maintenance and quiet long-term operation
• Polyurethane rear lift blocks for superior strength with reduced weight
• Sway bar spacers correct end link angles for proper roll and sway control after lift
• 100% bolt-on design - no cutting or welding required; complies with NHTSA FMVSS126 standards
• Maintains OE alignment specs and does not affect the Electronic Stability Control system

Specifications

• Front Lift Height: 3 inches
• Rear Lift Height: 1.5 inches (via rear block kit)
• Shock/Strut Series: Rancho RS9000XL (9-position adjustable)
• Primary Front Lift Component: Leveling strut kit
• Primary Rear Lift Component: Leaf spring block kit with U-bolts
• Upper Control Arms: Included (preinstalled ball joints, Zerk fittings, OE-style rubber bushings)
• Control Arm Bracket Material: High-strength low-alloy (HSLA) steel
• Maximum Tire Size: Up to 35 inches (trimming required)
• Drivetrain: 4WD only
• Platform: 2014-2020 Ford F-150 (Gen 13)
• Warranty: Limited Lifetime

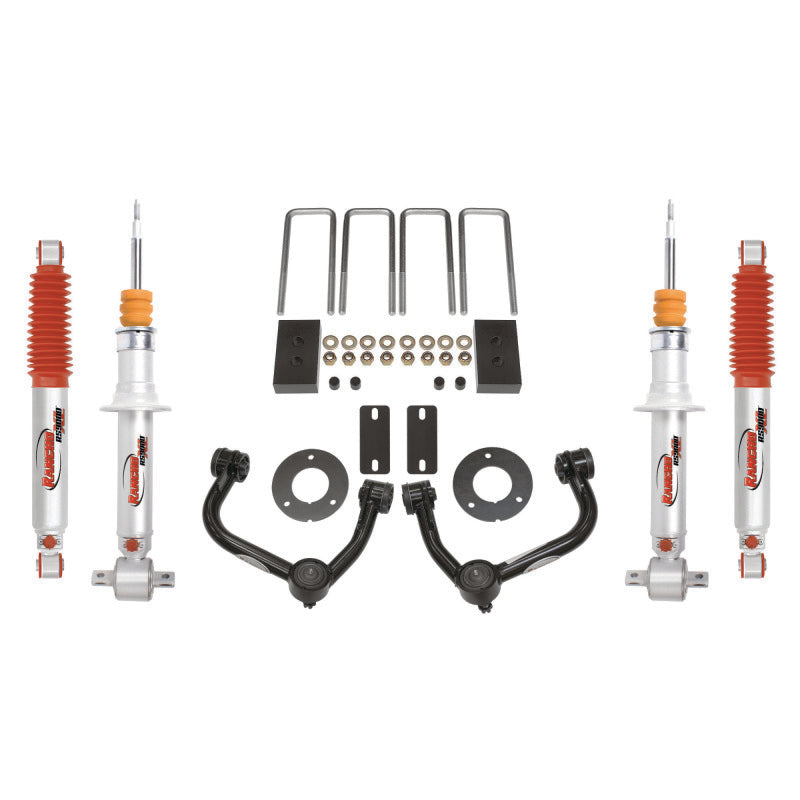

Included Components

• 2x Rancho RS9000XL Front Leveling Struts (9-position adjustable)
• 2x Rancho RS9000XL Rear Shocks (9-position adjustable)
• 2x Upper Control Arms with Preinstalled Ball Joints and Zerk Fittings
• 2x Rear Polyurethane Lift Blocks (1.5 inch)
• 2x Rear U-Bolts with Fasteners
• 2x Sway Bar Spacers
• 1x Mounting Hardware Kit

Product Description

The Rancho RS66507R9 is a complete 3-inch suspension lift system for the 2014-2020 Ford F-150 4WD, designed to level the truck's stance, clear up to 35-inch tires, and deliver improved on- and off-road performance through premium RS9000XL adjustable shocks and struts. The system lifts the front 3 inches via Rancho RS9000XL leveling struts and raises the rear 1.5 inches via polyurethane lift blocks - fully leveling the truck from front to rear. The RS9000XL's nine-position adjustment knob allows the driver to dial in damping firmness with a simple twist, making this system equally capable for daily commuting, towing, and off-road use.

Rancho-designed upper control arms are included with preinstalled ball joints and Zerk fittings, keeping the suspension geometry in its proper operating range while adding wheel travel. The 100% bolt-on installation maintains OE alignment specs and does not interfere with the Electronic Stability Control system. OE springs and factory strut top mount components must be reused and are not included. Note: the full kit ships in three separate boxes (RS66507R9-1, RS66507R9-2, RS66507R9-3) - all three must be ordered for a complete installation. Post-installation alignment is strongly recommended.
