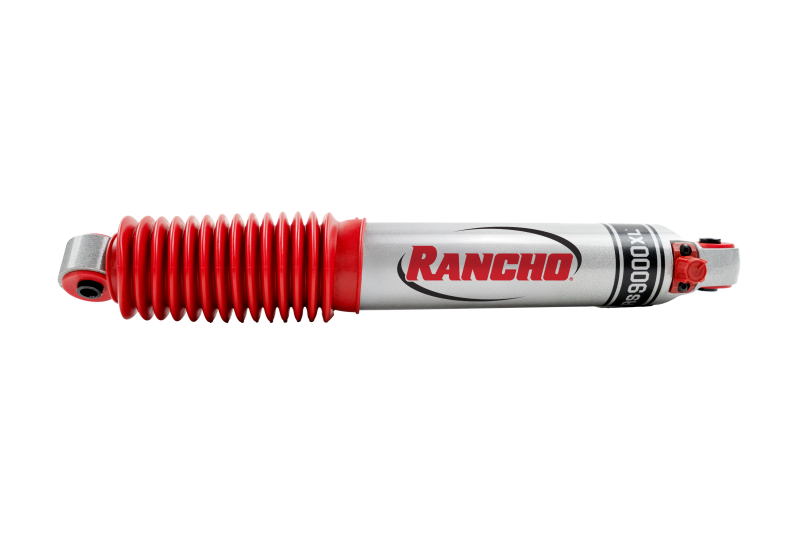

Rancho RS994330 RS9000XL Rear Shock for 2007-2018 Jeep Wrangler JK 4WD 3" Lift

Vehicle Fitment

• 2007-2018 Jeep Wrangler JK (Sport, Sahara, Rubicon - 4WD) - 2.5" to 3.5" Rear Lift
• 2007-2018 Jeep Wrangler Unlimited JK (Sport, Sahara, Rubicon - 4WD) - 2.5" to 3.5" Rear Lift

Fitment Notes

• Designed for rear lift heights of 2.5" to 3.5" - not compatible with factory ride height or lifts outside this range
• For use with compatible Rancho suspension systems including RS66106B, RS66107, RS66107B, RS66110B, RS66114B, and RS66115B (application-specific - verify by year)
• Fits all JK 2-door and 4-door (Unlimited) body styles across all trims
• Sold individually - quantity of 2 required for a complete rear axle replacement
• Factory shock mounting bolts are reused during installation

Features

• 9-position manual adjustment knob for instant damping control from very soft to very firm
• Large 2.75-in. (70mm) tri-tube body provides increased fluid capacity for cooler, more consistent performance on and off-road
• Heavy-duty 18mm Nitro-Carburized piston rod resists scuffing and corrosion for extended service life
• Nitrogen gas pressurized to 120 PSI minimizes air-to-oil mixing and prevents damping fade
• 4th-generation design features integrated bottom mounts for enhanced strength and dual 2K paint finish for superior chip resistance
• Polyurethane bushings and rebound bumper reduce noise, vibration, and harshness across all terrains
• Low-friction, self-lubricating seal retains gas and oil for consistent long-term performance

Specifications

• Position: Rear
• Extended Length: 26.01 in. (660.7 mm)
• Collapsed Length: 16.11 in. (409.2 mm)
• Travel: 9.90 in. (251.5 mm)
• Body Diameter: 2.75 in. (70mm) tri-tube
• Piston Rod Diameter: 18mm Nitro-Carburized steel
• Lift Compatibility: 2.5"-3.5" rear lift
• Drivetrain: 4WD
• Warranty: Limited Lifetime

Included Components

• 1x Rear RS9000XL Shock Absorber
• 1x Polyvinyl Protective Boot
• 1x Mounting Hardware Kit (washers, polyurethane bushings, nuts)

Product Description

The Rancho RS994330 RS9000XL is a rear shock absorber engineered for 2007-2018 Jeep Wrangler JK and Unlimited JK models (all trims, 4WD) running a 2.5" to 3.5" rear lift. Paired with a compatible Rancho suspension system, it delivers the matching travel length needed to keep the rear suspension properly controlled at lifted ride heights - making it the natural companion to the RS994329 front shock in a complete JK lift shock set.

Built in the 4th-generation RS9000XL design with integrated bottom mounts and a dual 2K chip-resistant paint finish, this shock provides the structural strength and long-term durability demanded by lifted Wrangler use. The 9-position manual adjustment knob allows damping to be dialed in from a soft, trail-compliant setting to a firm highway and towing configuration, and all factory mounting hardware is reused for a direct bolt-on fit.
