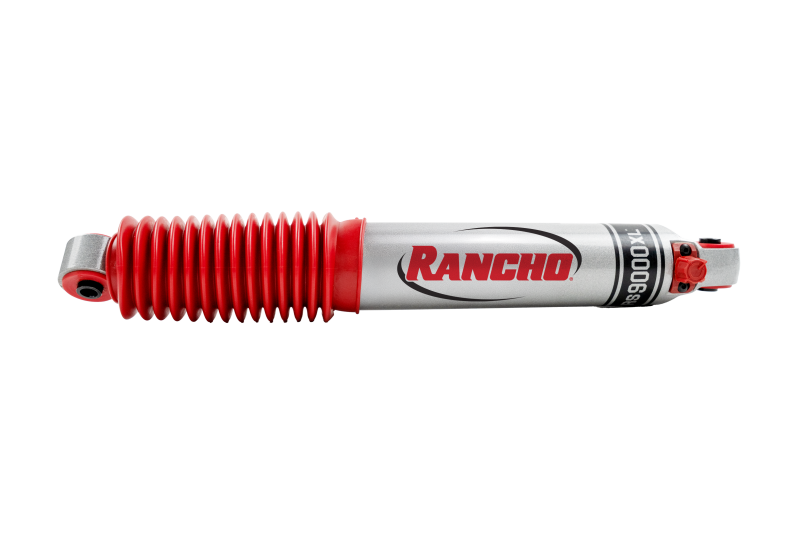

Rancho RS994310 RS9000XL 9-Position Rear Shock for 2006-2010 Hummer H3 4in Lift

Vehicle Fitment

• 2006-2010 Hummer H3 (Base, X, Luxury, Adventure, Alpha, Championship - All Gasoline Trims) - 4WD Only, Rear, with Rancho RS6558B Suspension System, 4 Inch Rear Lift

Fitment Notes

• Rear position only. Sold individually - order two for a complete rear shock replacement.
• 4WD models only. Designed for use with the Rancho RS6558B suspension system - confirm your suspension system before ordering.
• Does NOT fit Hummer H3T models (2009-2010). The H3T uses a different rear shock application.
• Designed for 4-inch rear lift applications only. A different shock is required for stock height or other lift heights.
• Replaces legacy Rancho part number RS999310 - direct 4th-generation upgrade with integrated bottom mounts and dual component 2K paint finish.
• Upper Mount Type: Cross Pin - Closed Ended, 3/8 in. Hole ID (both ends) x 2-3/4 in. Pin Length.

Features

• 9-position adjustable damping knob delivers precise rear ride control from soft trail-comfort to firm off-road performance - adjustable by hand without tools.
• 4th-generation RS9000XL design features integrated bottom mounts for enhanced structural strength over previous-generation welded mounts.
• Dual component 2K paint finish provides superior chip resistance and long-term corrosion protection over the legacy liquid metallic coating.
• Large 2.75-inch tri-tube body with all-weather fluid operates cooler and delivers consistent damping under the sustained demands of lifted off-road driving.
• 18mm nitro-carburized piston rod resists scuffing and corrosion for long-term durability in demanding on- and off-road H3 applications.
• Nitrogen gas pressurization at 120 PSI minimizes air-to-oil mixing to prevent damping fade during repeated off-road cycles.
• Graphite-filled Fluon-banded 1.25-inch sintered iron piston reduces internal friction for smoother, more responsive damping across all 9 settings.

Specifications

• Position: Rear (Left or Right)
• Lift Range: 4 inches (rear)
• Damping Adjustment: 9-Position Manual Knob
• Shock Body: 2.75 in. Tri-Tube, All-Weather Fluid
• Piston Rod: 18mm Nitro-Carburized
• Piston: Graphite-Filled Fluon-Banded, 1.25 in. Sintered Iron
• Gas Charge: Nitrogen (120 PSI)
• Upper Mount Type: Cross Pin - Closed Ended, 3/8 in. Hole ID x 2-3/4 in. Pin Length (both ends)
• Finish: Dual Component 2K Paint (Liquid Metallic Silver)
• Bottom Mount: Integrated (4th-Generation)
• Operating Temperature Range: -40°F to 248°F
• Drivetrain: 4WD Only
• Sold: Individually
• Warranty: Rancho Limited Lifetime Warranty
• Replaces: RS999310 (Legacy Part Number)

Included Components

• 1x Rancho RS994310 RS9000XL Rear Shock Absorber
• 1x Polyurethane Bushing Set
• 1x Protective Polyvinyl Shock Boot

Product Description

The Rancho RS994310 is the 4th-generation RS9000XL rear shock absorber for 2006-2010 Hummer H3 4WD models equipped with the Rancho RS6558B suspension system at 4 inches of rear lift, directly replacing the legacy RS999310. The 4th-gen design introduces integrated bottom mounts for improved structural rigidity and a dual component 2K paint finish that delivers superior chip and corrosion resistance over the previous liquid metallic coating. The 9-position manually adjustable damping knob allows drivers to dial in rear ride quality from soft and comfortable for daily use to firm and planted for technical off-road driving.

The large 2.75-inch tri-tube body, 120 PSI nitrogen gas charge, and 18mm nitro-carburized piston rod are purpose-matched to the H3's rear suspension geometry and the travel demands introduced by the 4-inch RS6558B lift system. This shock fits the rear position and is sold individually - two are required for a complete rear replacement. This part does not fit the Hummer H3T (2009-2010), which uses a separate rear shock application. Confirm your suspension system (Rancho RS6558B or equivalent 4-inch system) before ordering.
