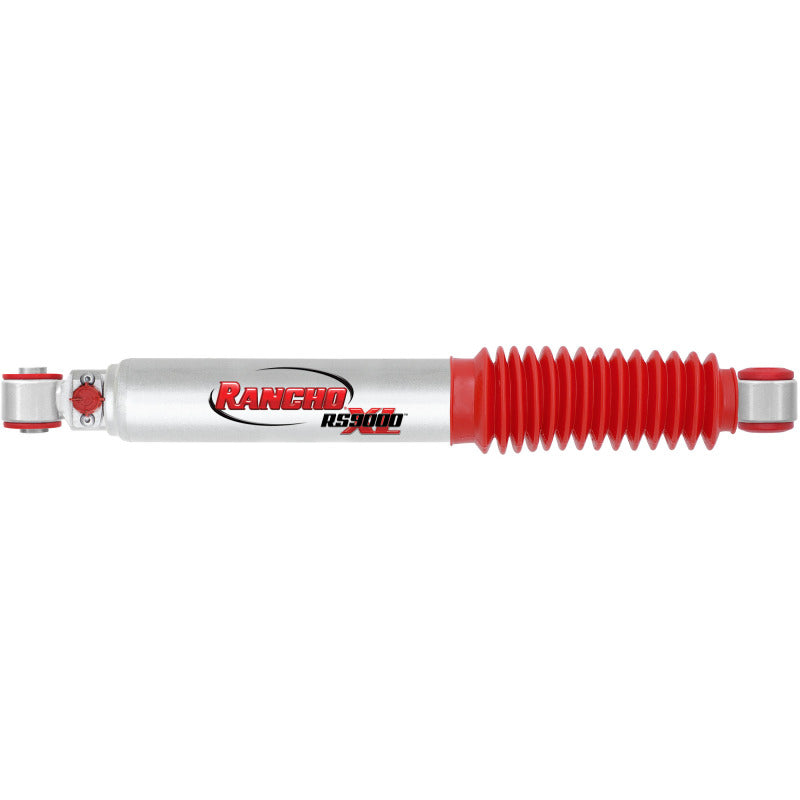

Rancho RS999314 RS9000XL Rear Shock Absorber for 2005-2015 Nissan Xterra

Vehicle Fitment

• 2005-2015 Nissan Xterra (4WD)

Fitment Notes

• Fits the second-generation Xterra (2005-2015); not compatible with the first-generation Xterra (2000-2004), which uses a different Rancho part number
• Rear application only - sold individually; often paired with the matching front strut, Rancho RS999787, for a complete set
• Review Rancho's official fitment notes to confirm exact trim and drivetrain compatibility before ordering
• Cross-references and replaces: Bilstein 24-187121; Nissan/Datsun OEM 56110EA027, 56110EA028, 56200EA025, 56200EA026, 56200EA027, 56200EA285, 56200EA286, 56200EA287
• This part number has reportedly been discontinued and replaced by Rancho RS994314 - confirm current part number availability with Rancho or your supplier

Features

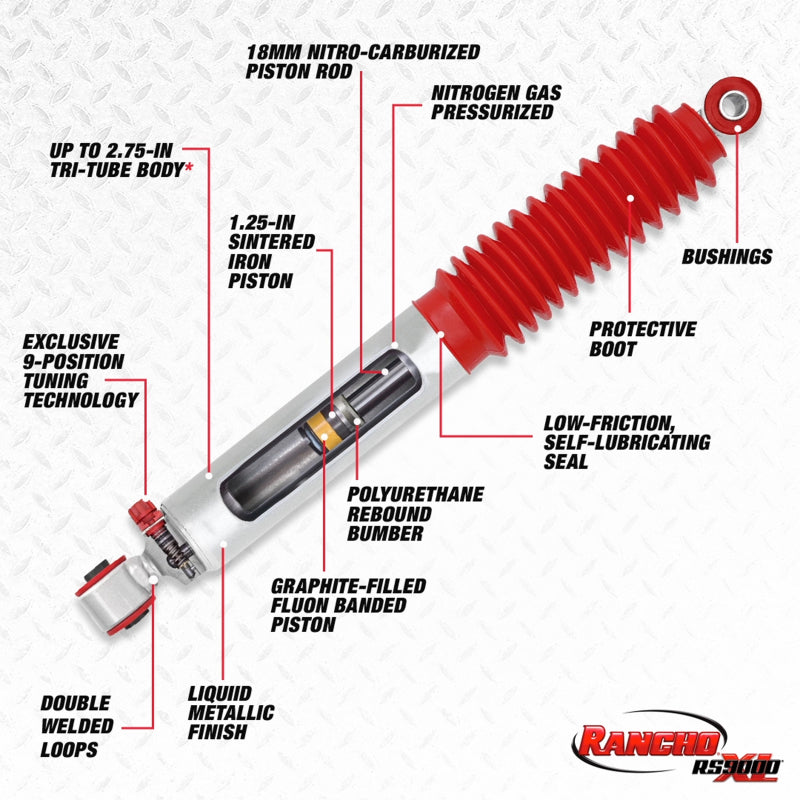

• RS9000XL series delivers the industry's first 9-position manually adjustable ride control, letting you dial in damping for on-road comfort, off-road control, or towing/hauling stiffness
• myRIDE 9-position adjustment knob can be turned by hand in under 60 seconds - even while the shock remains mounted on the vehicle
• Large 2.75 in. (70mm) tri-tube body increases fluid capacity for cooler, more consistent operation
• Heavy-duty 18mm Nitro-Carb rod improves scuffing resistance and corrosion protection
• Nitrogen gas pressurized to 120 PSI minimizes air-to-oil mixture, reducing damping fade and foaming
• 1.25 in. sintered iron piston with graphite-filled, Fluon-banded design for smoother piston travel and greater durability
• Rebound bumper helps control rebound motion during harsh driving conditions
• Self-lubricating seal adds an extra layer of defense against dirt and debris
• Liquid metallic finish provides long-lasting corrosion protection
• Double-welded loops add strength and durability at the mounting points

Specifications

• Shock Series: Rancho RS9000XL
• Internal Design: Triple-Tube (Tri-Tube)
• Body Diameter: 2.75 in. (70mm)
• Piston Diameter: 1.25 in.
• Rod Diameter: 18mm (Nitro-Carb)
• Adjustable Valving: Yes, 9-Position
• Gas Charged: Yes, Nitrogen, 120 PSI
• Compressed Length: 13.125 in.
• Extended Length: 20.063 in.
• Travel Length: 6.938 in.
• Upper Mount: Eyelet
• Lower Mount: Eyelet
• Bushing Material: Polyurethane (Red)
• Boot Included: Yes (Red)
• Ride Height: Stock

Included Components

• 1x RS9000XL Rear Shock Absorber
• Polyurethane Bushings
• Red Dust Boot with Zip Tie
• Installation Hardware
• Rancho Decal

Product Description

The Rancho RS999314 is an RS9000XL rear shock absorber built for the 2005-2015 Nissan Xterra 4WD, delivering the industry's first 9-position manually adjustable ride control in the off-road market. A large 2.75-inch tri-tube body and heavy-duty 18mm Nitro-Carb rod work together to keep the shock running cooler and more consistently, whether you're cruising the highway, tackling rough trails, or towing a heavy load.

The standout feature is Rancho's myRIDE adjustment system: a hand-turned knob lets you dial in damping firmness across nine distinct positions in under a minute - without removing the shock from the vehicle. Lower settings (1-3) closely mimic a factory ride, mid-range settings (4-6) firm things up slightly, and the top range (7-9) is tuned for towing and heavy loads. Nitrogen gas pressurization at 120 PSI keeps the air-to-oil mixture stable, reducing fade and foaming during sustained hard use.

Internally, a 1.25-inch sintered iron piston with a graphite-filled, Fluon-banded design smooths out piston travel, while a self-lubricating seal and protective red dust boot guard against dirt and debris. Sold individually with polyurethane bushings, mounting hardware, and a Rancho decal, this shock is backed by Rancho's Limited Lifetime Warranty and 90-Day Free Ride Offer. For a complete rear-and-front upgrade, pair it with Rancho's matching front strut, RS999787.
