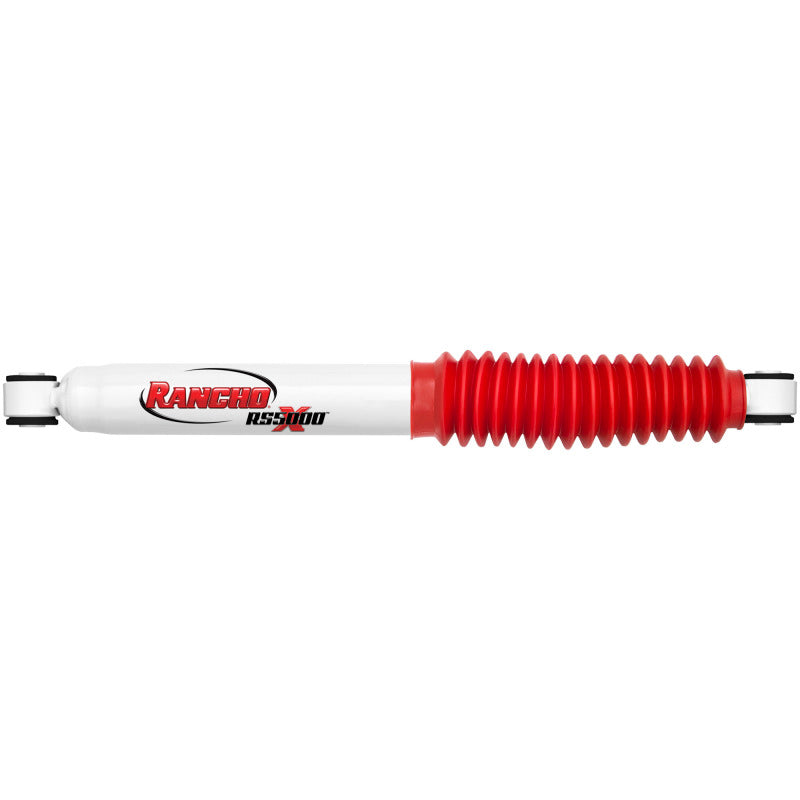

Rancho RS55056 RS5000X Rear Shock for 2003-2009 Dodge Ram 2500/3500 5-in Lift

Regular price: $81.95
Regular price
Sale price: $81.95

Shipping calculated at checkout.

In Stock: 14

Orders by 1pm PST ship same business day

Free Shipping w/3-4 Day Delivery

Authorized Dealer

Fitment Guarantee

30-Day Hassle Free Returns

Product Specification:

SKU:RHORS55056

MPN: RS55056

UPC: 039703006675

Weight: 8.5 lb

Inventory: 14

Type: Shocks and Struts

Vehicle Fitment

2003-2009 Dodge Ram 2500 4WD (Rear, RS5000X, 5-in Lift)
2003-2009 Dodge Ram 3500 4WD (Rear, RS5000X, 5-in Lift)

Features

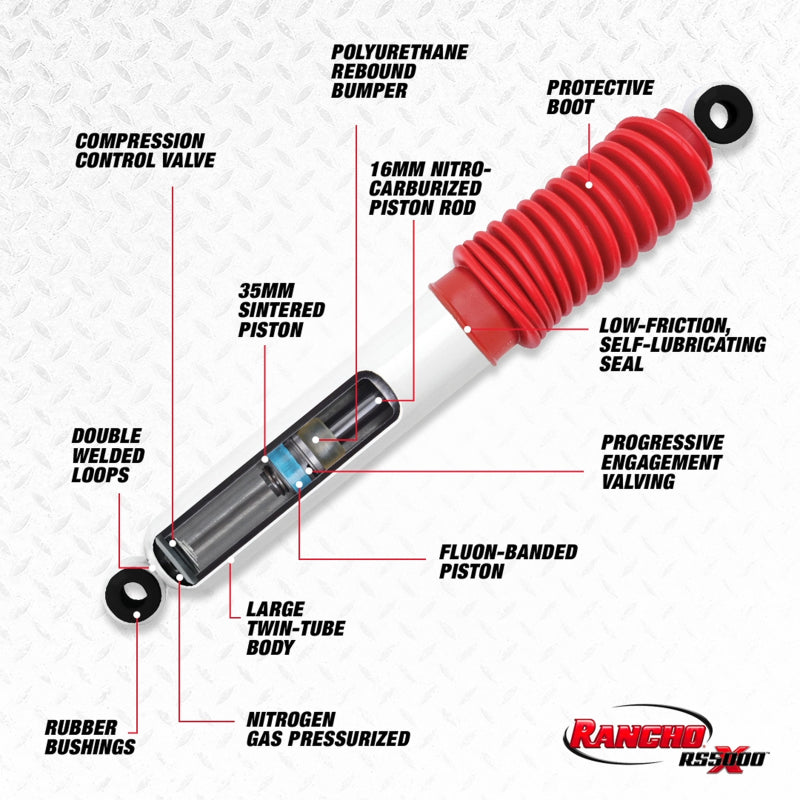

RS5000X twin-tube design with Cross Tuned rebound and compression valving
Progressive Engagement Valving smooths initial impacts at low speeds
16 mm nitro-carburized hardened piston rod resists wear and corrosion
35 mm sintered-iron piston ensures structural integrity
Protective red boot and dust shield for added durability
Gas-pressurized system (approx. 150 PSI) reduces fade and foaming
Designed specifically for 5-inch rear lift applications
Backed by Rancho's limited lifetime warranty

Specifications

Compressed Length: 18.69 in (474.7 mm); Extended Length: 31.97 in (812 mm)
Travel: 13.28 in (337.3 mm)
Body Diameter: 2.25 in (57.2 mm); Rod Diameter: ~15.8 mm
Internal Construction: Twin-tube, gas-charged
Mounting: Loop bushing & sleeve upper and lower (14 mm ID x 1 11/16 in OAL, code LS92)
Finish: White painted steel body with red protective boot and dust shield
Internal Features: Rebound bumper, low-friction seal, fluon-banded piston

Included Components

1x Rancho RS55056 RS5000X rear shock absorber
Protective red boot and dust shield
Loop bushing sleeve mounts (LS92 upper & lower)

Product Description

The Rancho RS55056 RS5000X Rear Shock is engineered specifically for lifted Dodge Ram 2500 and 3500 trucks (4WD) with a 5-inch rear lift, covering model years 2003 through 2009. It features Cross Tuned damping technology and Progressive Engagement Valving, which deliver smooth initial travel with increasing control through the full stroke - ideal for both on-road comfort and off-road performance.

Constructed with a 16 mm nitro-carburized rod, 35 mm piston, and gas pressurization (~150 PSI), this shock is designed to withstand harsh environments and heavy use - while reducing fade under extreme conditions. The dual loop bushing & sleeve mounts (code LS92) ensure a sturdy fit, and the white painted twin-tube body with red boot offers both durability and clean aesthetics. Ran ch provides a limited lifetime warranty to ensure your confidence on every trail.
