Rancho RS55289 RS5000X Lifted Front Shock 2001-2010 Silverado/Sierra 2500HD 4WD

Vehicle Fitment

• 2001-2010 Chevrolet Silverado 1500 HD (4WD, 4-5" Front Lift, Torsion Bar Front Suspension)
• 2001-2010 Chevrolet Silverado 2500 HD (4WD, Lifted, Torsion Bar Front Suspension)
• 2007 Chevrolet Silverado 2500 HD Classic (4WD, Lifted, Torsion Bar Front Suspension)
• 2001-2010 GMC Sierra 2500 HD (4WD, Lifted, Torsion Bar Front Suspension)
• 2007 GMC Sierra 2500 HD Classic (4WD, Lifted, Torsion Bar Front Suspension)
• 2003-2009 Hummer H2 (4WD, Lifted)

Fitment Notes

• This is an extended-length shock designed for lifted vehicles - for the Silverado/Sierra 1500 HD, it is sized for 4-5" of front lift; verify specific lift height compatibility for 2500 HD and H2 applications before ordering
• Requires torsion bar front suspension - does not fit vehicles with independent coilover front suspension or electronic/autoride suspension
• Fits 4WD (4x4) models only - does not fit RWD or 2WD configurations
• Does not fit 2011 and newer Silverado 2500 HD or Sierra 2500 HD - those require Rancho RS55380
• Does not fit Quadrasteer-equipped models

Features

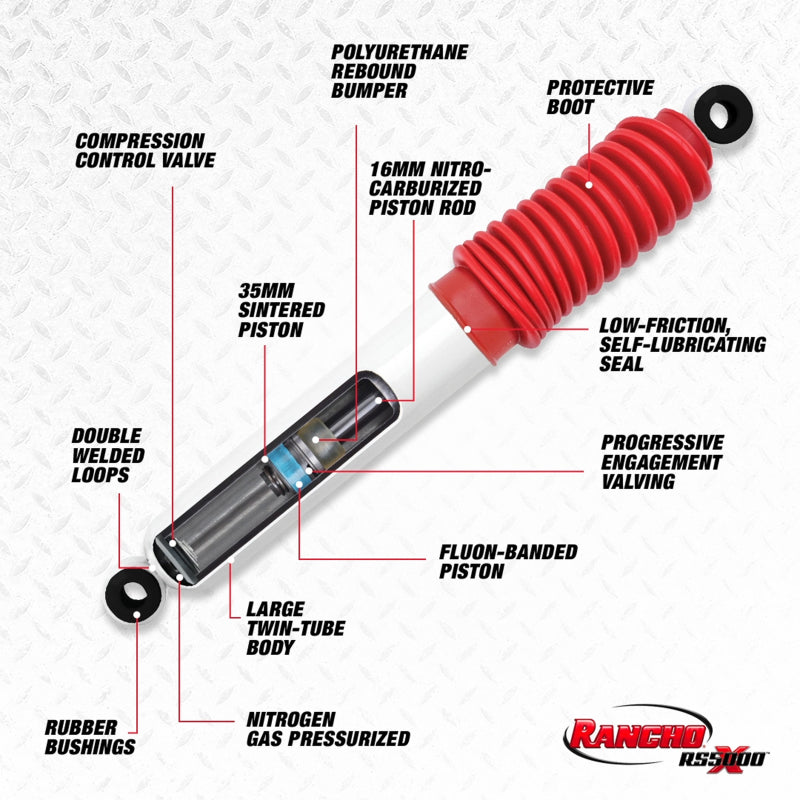

• Rancho exclusive Cross Tuned Technology pairs a patented rebound valving system with an advanced compression phase, delivering improved on- and off-road handling specifically optimized for lifted heavy-duty trucks
• Progressive Engagement Valving custom-tuned for these GM heavy-duty platforms - absorbs initial impacts gradually at low speeds and progressively tightens damping as terrain demands increase
• Extended-length design provides the correct suspension travel geometry for lifted applications, maintaining proper shock function throughout the suspension range
• Compression Control Valve regulates fluid transfer to absorb impacts without disc flutter, ensuring consistent damping control on rough trails or towing scenarios
• Twin-tube, gas-pressurized design at 150 PSI minimizes air-to-oil foaming and prevents damping fade during sustained off-road or towing use
• 2-1/4" (57mm) diameter shock body provides increased fluid capacity for cooler operation and consistent performance at varying speeds and terrain types
• All-weather fluid rated for internal temperatures from -40°F to 248°F, ensuring reliable performance in any climate or season
• Low-friction, self-lubricating seal retains gas and oil charge for faster rebound response and smoother compression over the shock's service life
• 16mm nitro-carburized piston rod resists scuffing and corrosion under demanding lifted-truck conditions
• 35mm sintered iron, glass-filled Fluon banded piston delivers precise shock motion control for enhanced stability and responsiveness

Specifications

• Part Number: RS55289
• Series: RS5000X
• Position: Front
• Lift Height: 4-5" Front Lift (Silverado/Sierra 1500 HD); verify for 2500 HD and H2 applications
• Drive Type: 4WD Only
• Extended Length: 21.41"
• Compressed Length: 13.88"
• Travel Length: 7.53"
• Shock Body Diameter: 2-1/4" (57mm)
• Piston Diameter: 35mm (Sintered Iron, Glass-Filled Fluon Banded)
• Piston Rod: 16mm Nitro-Carburized Steel
• Gas Pressure: 150 PSI
• Top Mount: OEM Stem
• Bottom Mount: Eyelet/Sleeve
• Boot Included: Yes
• Warranty: Rancho Limited Lifetime Warranty

Included Components

• 1x Rancho RS5000X Front Lifted Shock Absorber (RS55289)
• 1x Protective Boot
• 1x Hardware Kit (washers, bushings, and nuts)

Product Description

The Rancho RS55289 RS5000X is an extended-length front shock absorber engineered for lifted 4WD applications on 2001-2010 Chevrolet Silverado 1500 HD and 2500 HD, 2001-2010 GMC Sierra 2500 HD, their 2007 Classic variants, and 2003-2009 Hummer H2 models. At 21.41" extended and 13.88" compressed, this shock is sized specifically to work within the suspension travel range of these GM heavy-duty torsion bar platforms when a front lift has been installed. On the Silverado/Sierra 1500 HD, it is matched for 4-5" of front lift. Built on Rancho's patented Cross Tuned Technology, the RS55289 combines an exclusive rebound valving system with an advanced compression phase to deliver measurably better stability, control, and ride quality on a lifted heavy-duty truck compared to either worn OEM shocks or standard-length aftermarket replacements that are mismatched to the extended suspension geometry.

The twin-tube, 150 PSI gas-pressurized construction keeps the shock running fade-free under the demanding conditions that lifted HD trucks are frequently subjected to - heavy towing, off-road terrain, high-speed highway driving, and sustained load-carrying. The enlarged 2-1/4" shock body provides greater fluid capacity for cooler operation, while all-weather fluid rated from -40°F to 248°F internally ensures consistent performance year-round regardless of operating conditions. The 16mm nitro-carburized piston rod and 35mm Fluon-banded sintered iron piston provide long-term durability and precise damping control throughout the shock's full range of motion.

The RS55289 is a direct-fit extended-length front replacement for lifted 4WD variants of the 2001-2010 Silverado 1500 HD and 2500 HD, 2001-2010 GMC Sierra 2500 HD (including 2007 Classic models), and 2003-2009 Hummer H2. It requires a torsion bar front suspension and is not compatible with vehicles equipped with electronic or Autoride suspension, Quadrasteer, or RWD/2WD drivetrain configurations. Owners of the 2011 and newer Silverado/Sierra 2500 HD should select Rancho RS55380 instead. Installation uses factory mounting hardware with the included hardware kit. Sold individually - two are required for a complete front axle replacement. Backed by Rancho's Limited Lifetime Warranty, the RS55289 is the correct extended-length RS5000X front shock for lifted GMT800-era GM HD trucks and Hummer H2.
